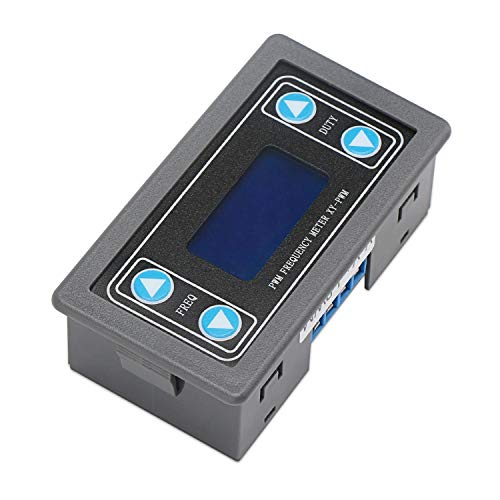

DROK Signal Generator, DC 3.3-30V Function Generator 5-30mA LCD Display PWM Pulse Frequency Duty Cycle Rectangular Wave Square Wave Signal Generator
Number of Items:
1
Disponibilidad
En stock
En stock
Peso con empaque
0.20 kg
0.20 kg
Devolución
Sí
Sí
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Sobre este producto

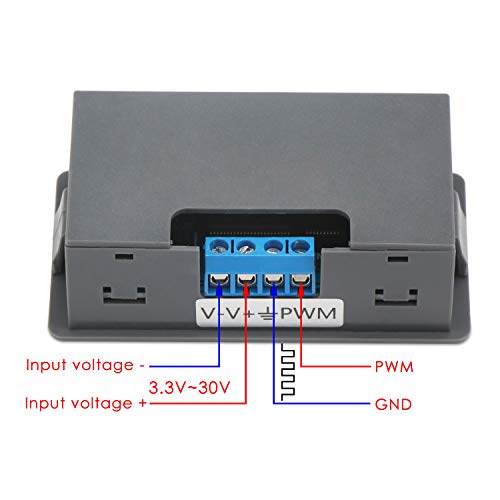

- PARAMETER ---- operating voltage range DC 3.3v~30v; frequency range 1Hz-150kHz; output current 5-30mA; duty cycle range 0-100%.
- APPLICATION ---- as square wave signal generator for experimental development; as square wave signal generator for motor driver; as adjustable pulse generator for MCU; as pulse generator, control related circuits (PWM dimming, speed regulating).
- SERIAL COMMUNICATION ---- support serial communication, TTL level.
- DATA AUTO STORAGE ---- all parameters will be saved automatically after setting and therefore won't lose when power off.
- OTHER FEATURES ---- with LCD display to display frequency and duty cycle value; with case; PWM output, can set frequency and duty cycle separately by buttons; frequency value is divided into 4 range and switched automatically, with high precision.
$38,29
55% OFF
$17,41
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$38,29
55% OFF
$17,41
Compra más de $100 y te regalamos la mitad de la tasa arancelaria
$20 OFF al pagar con Deuna
Envío gratis
Llega en 5 a 12 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que sueñas y lo recibas del mundo a tu puerta.
Tarjetas de Débito y Crédito
Visa
Mastercard
American Express
Dinners
Discover
Alias
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
PayPal
Conoce más detalles

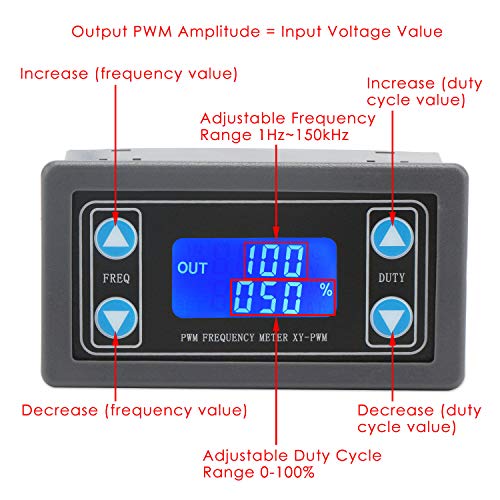

Parameter: 1. Working voltage: DC 3.3v~30v 2. Frequency range: 1Hz~150kHz (divided into 4 ranges); 3. Frequency precision: 2% of each range; 4. Signal load capacity: output current is about 5-30mA; 5. Output Amplitude: PWM amplitude equal to the input voltage value 6. Environment Temperature Range: -20~+70℃ 7. Duty cycle range: 0-100%.Application: 1. As square wave signal generator for experimental development; 2. As square wave signal generator for motor driver; 3. As adjustable pulse generator for MCU; 4. As pulse generator, control related circuits (PWM dimming, speed regulating).Setting Parameters: There are 4 independent buttons on the module for setting the frequency value and the duty cycle value. Supports short press (increase or decrease 1 unit by 1 unit) and long press (fast increase or decrease). All setting parameters will be saved when powered off to achieve data guaranteed.Frequency Display Instruction: The frequency is divided into 4 ranges and switched automatically. 1. XXX (without decimal point): minimum unit is 1Hz, value range is 1Hz~999Hz. 2. X.XX (the decimal point is in the hundred digit): minimum unit is 0.01kHz, value range is 1.00kHz~9.99kHz. 3. XX.X (the decimal point is in the ten digit): minimum unit is 0.1kHz; value range is 10.0kHz~99.9kHz. 4. X.X.X (full decimal point): the minimum unit is 1kHz; the value range is 1kHz~150kHze.g. Frequency displays 100 represents 100Hz; displays 1.01 represents 1.01kHz; displays 54.1 represents 54.1kHz; displays 1.2.4 represents 124kHzPackage Included: 1x Signal Generator
