Artículo: AMZ-B07KJDLNZF
DC 5V TPIC6C596 Large Digit Driver Drive 65" 7-Segment LED Display Module for Andrino DIY Kit Electronic PCB Board Module
En stock
0.87 kg
No
Nuevo
Amazon
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
Conoce más detalles

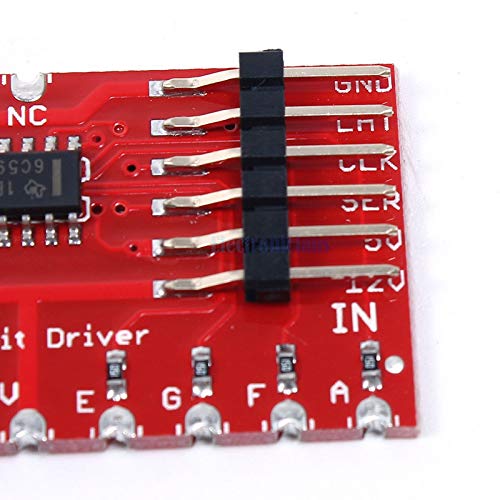

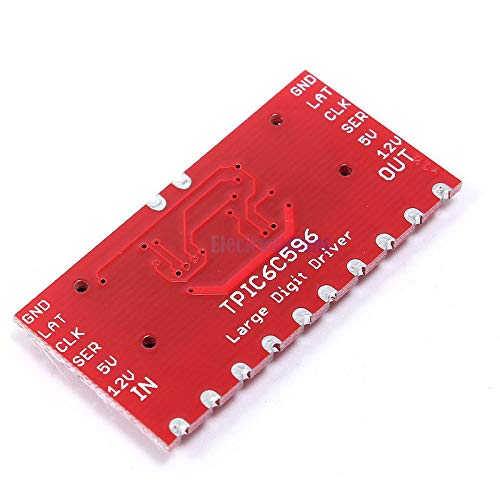

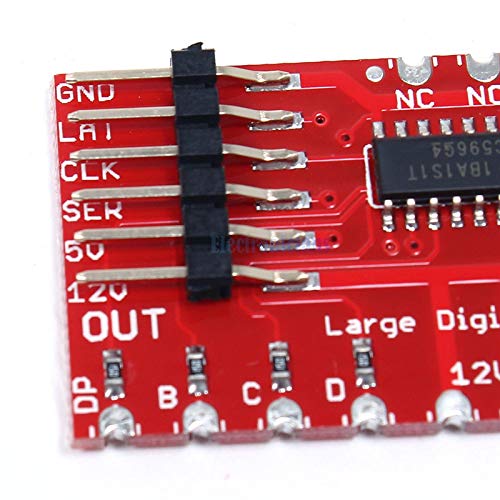

Description:The MCU Large Digit Driver is a chainable controller backpack that can be soldered directly to the back of our large 6.5" 7-segment displays. Large numerical displays are a great addition to any project where you want to be able to see information at a distance. Scorekeepers and lap timers would be a great application for large 7-segment LED displays.The MCU Large Digit Driver can easily be attached to the back of the 7-segment display by soldering all 10 castellations pins at the bottom of the board as well as the two additional castellations at the top. Keep in mind that the Large Digit Driver requires both 12V for the LEDs and 5V for the on-board TPIC6C596 IC. Each driver is equipped with six input pins and six output pins, these make the driver capable of being chained together. The input/output pins are listed as GND (Ground), LAT (Latch), CLK (Clock), SER (Serial), 5V (Power for the driver IC), and 12V (Power for the 7-segment display). We actually used the Large Digit Driver in our AVC Battle-Bot Arena to display times and scores!Features:Operating Voltage: 5VChainable to another Large Digit DriverAttaches directly to the 7-Segment Displaycastellated Mounting HolesDocuments contain:SchematicHookup GuideDatasheet (TPIC6C596)GitHub (Design Files & Example Code)Package Included:1x DC 5V TPIC6C596 Large Digit Driver
