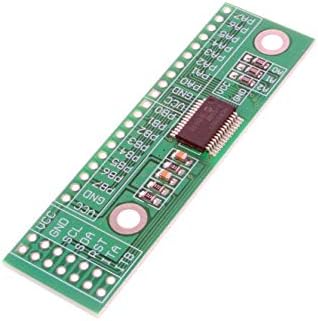

NOYITO MCP23017-E SS I2C Interface 16-Channel IO Expansion Module Compatible IIC Input and Output Expansion Board
Disponibilidad
En stock
En stock
Peso con empaque
0.20 kg
0.20 kg
Devolución
Sí
Sí
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Sobre este producto
- This module is the 16 channel IO extension module of the 12C interface, and built in the MCP23017 chip of MicroChip.
- Each IO can be arbitrarily configured as input or output, and a pull up resistor can be set, and the interrupt function can be enabled for the IO configured as input. The IO interface has a strong driving capacity, and the current and current can reach 25mA.
- MCP23017 is a high-speed IIC interface. It supports the IIC frequency of 100KHz, 400KHz and 1.7MHz.
- The chip has 3 address pins, which can be set up for 8 different addresses. So 8 modules can be connected through two IIC buses to achieve up to 128 IO extensions.
- The chip has 3 address pins, which can be set up for 8 different addresses. So 8 modules can be connected through two IIC buses to achieve up to 128 IO extensions.
- NOYITO MCP23017-E SS I2C Interface 16-Channel IO Expansion Module Schematic Document
- https://1drv.ms/u/s!AlzQUCOyZQhKgTSAfMW2bk17F6aF?e=LGBAB7
$28,88
44% OFF
$16,05
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$28,88
44% OFF
$16,05
Difiere a 3 y 6 meses sin intereses con Diners, Discover y Titanium
Envío gratis
Llega en 5 a 12 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que sueñas y lo recibas del mundo a tu puerta.
Tarjetas de Débito y Crédito
Visa
Mastercard
American Express
Dinners
Discover
Alias
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
PayPal
Conoce más detalles
Parameters: Operating voltage：3.0V-5.5V Drive chip：MCP23017 Number of IO: 16 (input, output, interruption) Drive power supply: 25mA1 12C frequency: 100KHz, 400KHz, 1..7MHz Working temperature: -40 Celsius -125 Celsius Chip level: Industrial grade Parallel multiple: Up to 8 Driver: 51 and Arduino Module size: 65mm*19mm Pin description VCC: Power source input (3.0V-5.5V) GND: Power negative electrode (0V) SCL: 12C clock line (SCL connecting single chip IO pin or MCU 12C interface) SDA: 12C data line (SDA connecting single chip IO pin or MCU 12C interface) RST: Chip reduction (Low level effective, connecting MCU IO pin or unconnected) ITA: GPIOA port interrupt output (Connect MCU IO pin, without connection when interruption) ITB: GPIOB port interrupt output (Connect MCU IO pin, without connection when interruption) Package Included: 1pcs NOYITO MCP23017-E/SS I2C Interface 16-Channel IO Expansion Module
