Artículo: AMZ-B071CJT43Y

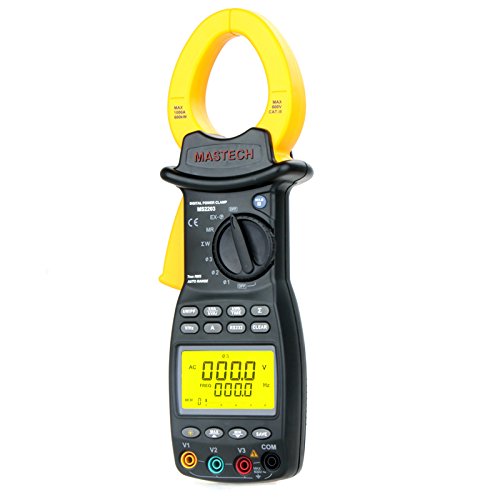

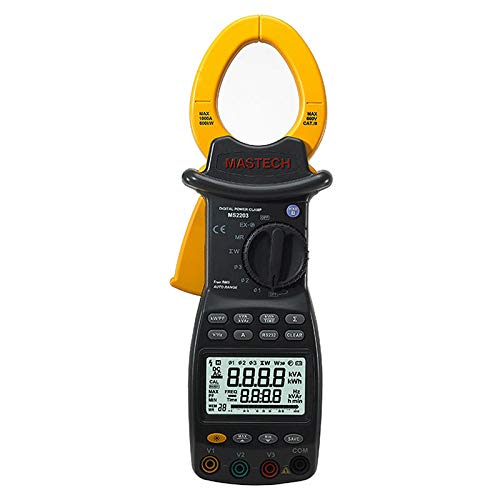

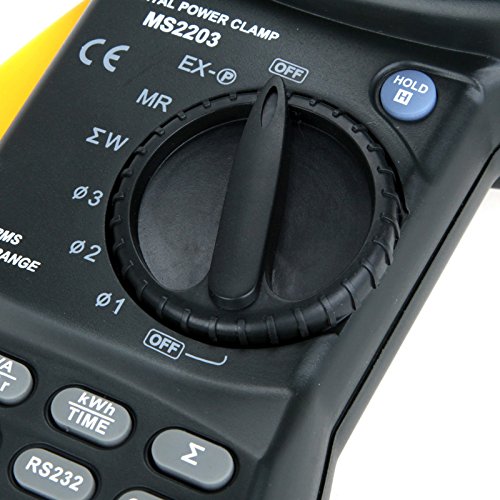

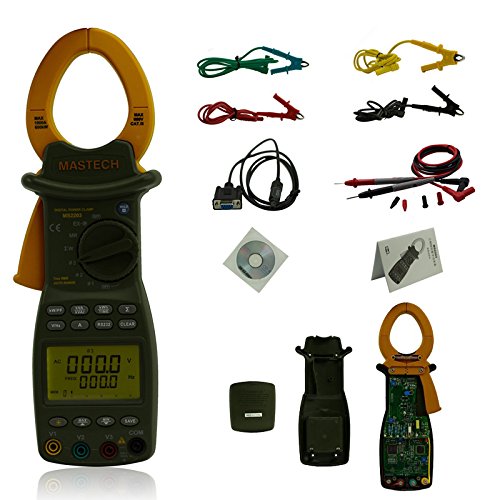

MS2203 Three Phase Intelligent Digital Power Clamp Meter Support RS232 with 9999 Counts High Precision
En stock
1.19 kg
No
Nuevo
Amazon
- 1.Power measurement of 3-phase 3-wire, 3-phase 4-wire, single-phase mode 2.V, A, W, VA, VAR, kWh, PF, Hz measurement
- 3.Double display two parameters on each menu and store 28 groups of measurement parameter 4.Measure total power value and five power parameters of each phase in 3-phase measurement mode respectively
- 5.Autorange and TRMS display 6.With PC RS232 interface and windows graphics software
- 7.Display measurement time and select tested signal be power supply for the clamp at one time, the instrument can 8.measurement for long time
- 8.Large LCD display, multifunctional button control
Producto no disponible
Este producto no está permitido por la aduana del país en categoria 4x4
Conoce más detalles

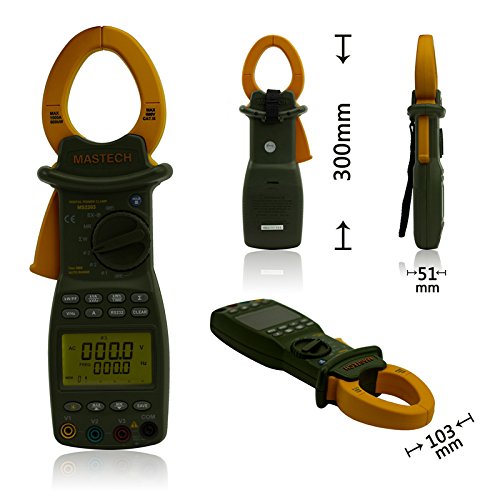

Specifications Model MS2203 Max conductor size 50mm AC Current(A) 40/100/400/1000A 2% AC Voltage(V) 100/300/600V 1.2% Active Power(kW) 4/10/40/100/600kW 3.0% Apparent Power(kVA) 4/10/40/100/600kVA3.0% Power Factor(PF) 0.3cap to 0.3ind 0.02 Reactive Power(KVAR) 4/10/40/100/600kVAR 4.0% Active Energy(kWh) 10/100/1000/10000kWh 3.0% Frequency(Hz) 20Hz~1000Hz 0.5% Display 4 digits LCD 9999 Power supply 4 x 1.5V AA OperatingTemperture 0C~ 40C Dimension 300mm x 103mm x 51mm Weight 500g
