EX ELECTRONIX EXPRESS Bench Digital Multimeter with Software for Function Generator via RS-232 Computer Interface

Disponibilidad
Sin stock
Peso con empaque
1.48 kg
Devolución
No
Condición
Nuevo
Producto de
Amazon

Sobre este producto
  • Bench Digital Multimeter with thermometer and software for Function Generator via RS-232 Computer Interface

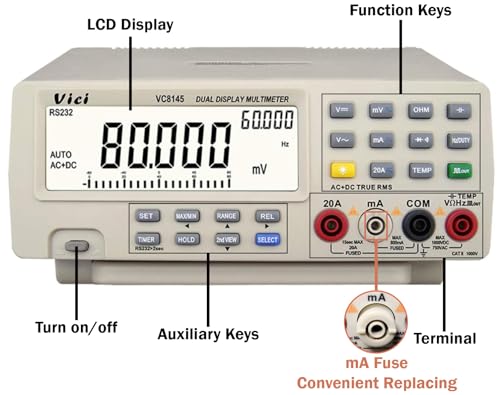

  • Large LCD display, high contrast, wide visual angle, white backlight
  • 50 measurement functions including DCV, ACV, DCA, ACA, Ohm, CAP, Hz, TEMP, Diode, Continuity and others
  • DCV Range: 80mV/800mV/8V/80V/800V/1000V, ACV Range: 80mV/800mV/8V/80V/750V, DCA Range: 80mA/800mA/8A/20A, ACA Range: 80mA/800mA/8A/20A
  • Photoelectric isolated RS-232 computer interface

Sin stock

Seleccione otra opción o busque otro producto.

Este producto viaja de USA a tus manos en

Compra protegida

Disfruta de una experiencia de compra segura y confiable

Conoce más detalles

Bench Digital Multimeter with thermometer and software for Function Generator via RS-232 Computer Interface. It has a large LCD display with white backlight, high contrast, and wide visual angle. It has a dual display: The main display 80000 counts, The secondary display 80000 counts, analog bar 21 segments, with unit & function symbols. It has 50 measurement functions including DCV, ACV, DCA, ACA, Ohm, CAP, Hz, TEMP, Diode, Continuity and others. The frequency range is up to 80MHz. The standard function generator has 18 waveforms, 1% to 99% Duty cycle, 1800 pcs wave output. The resistance measurement range: 0.01 Ohm - 80 MOhm. The capacitance measurement range is 10PF - 100uF. The temperature measurement Range: -58°F to 2502°F, - 50°C to 1372°C. Photoelectric isolated RS-232 computer interface. AC measurement - High accuracy RMS, Wide measurement AC+DC function. It also has auto data refresh hold. Specifications: DCV Range: 80mV/800mV/8V/80V/800V/1000V DCV Accuracy: ± (0.05%+5) ACV Range: 80mV/800mV/8V/80V/750V ACV Accuracy: ± (0.5%+50) DCA Range: 80mA/800mA/8A/20A DCA Accuracy: ± (0.2%+10) ACA Range: 80mA/800mA/8A/20A ACA Accuracy: ± (0.2%+10) Resistance Range: 800Ω/8kΩ/800kΩ/8MΩ/80MΩ Resistance Accuracy: ± (0.3%+10) Frequency Range: 0.5Hz ~ 6Mhz Frequency Accuracy: ± (0.05%+2) Capacitance Range: 1nF/10nF/100nF/1uF/10uF/100uF Capacitance Accuracy: ± (2.55%+50) Temperature Range: -50°C~1372°C / -58°F~2502°F Temperature Accuracy: ± (1.5%+10) Quadrate Wave Range: 3V / 0.5Hz~5kHz / 1%~99% Quadrate Wave Accuracy: ± 0.05% Input impedance: 10 Sampling frequency: 4 times / sec. Analog bar 40 times / sec. AC frequency response: 40Hz-50kHz Operation way: Auto range
