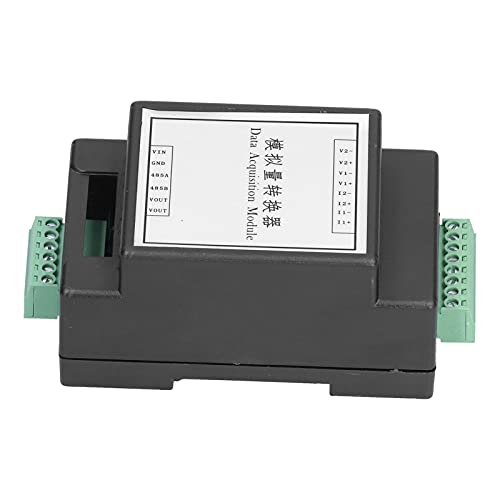

Data Acquisition Module 4 Channel 12 Bit AD RS485 Communication Isolated Analog Converter Working Voltage 10V 30V
Disponibilidad
En stock
En stock
Peso con empaque
0.20 kg
0.20 kg
Devolución
No
No
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Sobre este producto
- Using standard Modbus‑RTU protocol, it can be directly adapted to PLC, DCS and various domestic configuration software.
- RS485 communication output interface adopts double of overvoltage and overcurrent.
- Input type and communication format can be set by the host computer software, and the power polarity is protected against reverse connection.
- 4‑channel analog converter, can input 2 channels 0‑20mA, 4‑20mA, 2 channels 0‑5V, 0‑10V four kinds of analog input signals, input analog data, and output through isolated RS485 interface.
- input and the RS485 communication electrical are isolated from each other, effectively suppressing various serial mode and common mode interference, ensuring the accuracy of the data, and also ensuring the of the module.
$44,60
44% OFF
$24,78
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$44,60
44% OFF
$24,78
2 meses de gracia en diferidos con Banco Guayaquil
Compra más de $100 y te regalamos los $20 de la tasa arancelaria
Envío gratis
Llega en 16 a 26 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que sueñas y lo recibas del mundo a tu puerta.
Tarjetas de Débito y Crédito
Visa
Mastercard
American Express
Dinners
Discover
Alias
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
PayPal
Conoce más detalles

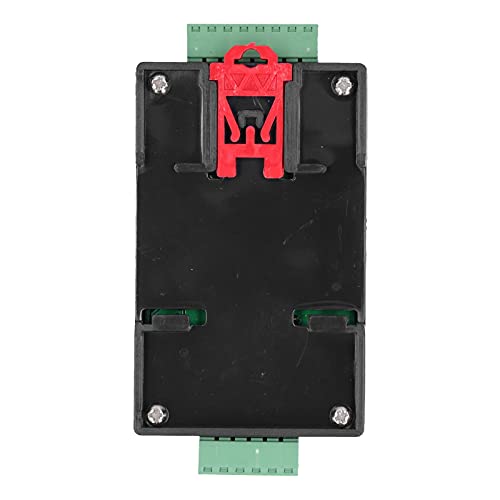

Specification: Item Type: Data Acquisition Module Material: Resin Model: WDAM485 Electrical Parameters: Input 1. Input 4 Analog Inputs 2. Input Type: 0-20mA, 4-20mA, 0-5V, 0-10V Four Analog Signals 3. Sampling Rate: 4 Channels Are Collected Once Every 1mS 4. Resolution: 12-Bit AD 5. Accuracy: Voltage 0.5%, Current 0.5% 6. Isolation Voltage : 1500V RS485Communication Output 1. Communication Protocol: MODBUS-RTU 2. Interface Type: Isolated RS485 Communication, the Output Interface Adopts Double of Overvoltage and Overcurrent 3. Baud Rate: 4800, 9600, 19200, 38400, 57600 the Default Is 9600 4. Check Digit: No Check 5. Setting Method: Module Address Can Be Set by Software 6. Isolated Voltage : 1500V Module Size Approx. 88 x 55 x 44mm / 3.5 x 2.2 x 1.7in Installation Method 35 Standard Card Rail Type Working Environment Temperature: -10℃+55℃ Humidity: 35-85% (Non-Condensing) Power Supply 1. Power Supply: 10v-30v Wide Range Power Supply, Power Supply Anti-Reverse 2. Power Consumption: Less than 1W Purpose: Convert Analog Quantity to Digital Quantity PackageList: 1 x Converter Notice: Please install under professional guidance, and power off before installation
