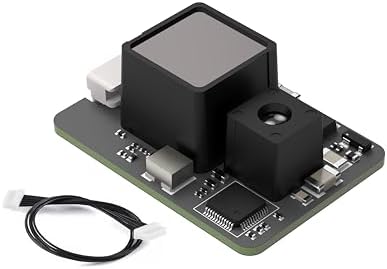

WayPonDEV TFS20-L UART & IIC Lidar Sensor Scanner, 0.2-20m Long-Range Scanning Rangefinder, Micro Single-Point Ranging Module for Robots Drones UAV, Compatible with A rduino Raspberry Pi Pixhawk SDK

0 5 5 2

2 calificaciones

Disponibilidad
En stock

Peso con empaque
0.20 kg

Devolución
No

Condición
Nuevo

Producto de
Amazon

Sobre este producto

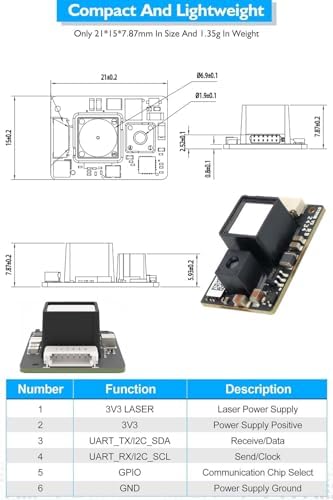

[Small Size, High Performance] TFS20-L lidar sensor with small size, light weight, accurate and far distance measurement, and excellent distance measurement ability under strong ambient light, it is an excellent choice for micro-small dToF applications. Size: 21*15*7.87mm, Weight: 1.35g, Accuracy: ±6cm(0.2~6m).
[Single Point LIDAR Module] TFS20-L LIDAR is a fully integrated single-channel DToF rangefinder compact module, integrating a highly sensitive infrared-enhanced SPAD sensor with a range of up to 20m.
[SPAD Chip] TFS20-L LIDAR rangefinder adopts SPAD chip fully integrated solution, histogram statistical algorithm, and fast TDC architecture, etc., to realize high-accuracy ranging and at the same time, it has the sunlight-resistant capability of 15m 100Klux, and reflectivity correction function.
[Rich Interface Functions] TFS20-L LiDAR scanner integrated power supply module, using 3.3V single power supply, built-in temperature compensation function. Supporting I²C, UART interfaces, easy to integrate and use, and in a compact and reliable optical package.
[Wide Application Scenarios] TFS20-L LIDAR sensor is suitable for many application scenarios such as consumer drones, service robots, robots obstacle avoidance, IoT and so on.
[Wiki] SDK document download please click "WayPonDEV" store and ask the question. All technical and after-sales questions, please leave the message to "wpd#youyeetoo&com (#--->@,&--->.)" .

$100,59

49% OFF

$51,59
