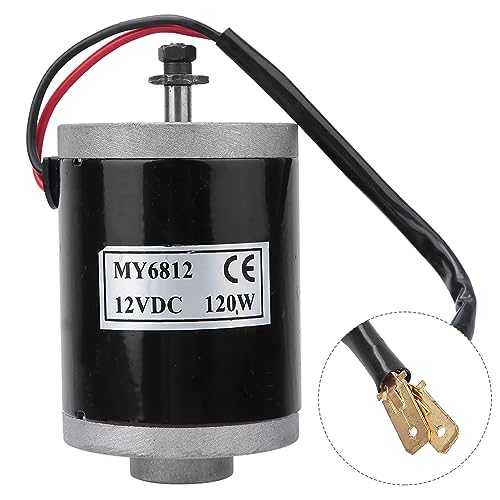

DC Motor, Electric Scooter Motor, MY6812 120W 12V Motor Suitable for Electric Scooters and Small Electric Bicycles with Limited Space
Disponibilidad
En stock
En stock
Peso con empaque
1.19 kg
1.19 kg
Devolución
No
No
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Sobre este producto
- High Starting Torque: When DC brushed motor starts, due to the action of brushes and commutator, dc motor can provide large starting torque, suitable for some application scenarios that require large starting torque(Torque rating is 0.56 nm)
- Wide Range of Speed Regulation: You can adjust the DC voltage, electric motor can easily adjust the speed of DC brushed motor, so that electric bike motor can adapt to different working requirements, and this small motor is more convenient to use
- Product Specification: MY6812 12v dc motor for bike has a rated power of 120W, rated voltage of 12V, rated current <8.5A, rated speed of 2500±5% RPM, maximum speed of 3500±5% RPM, and noload current <0.9A

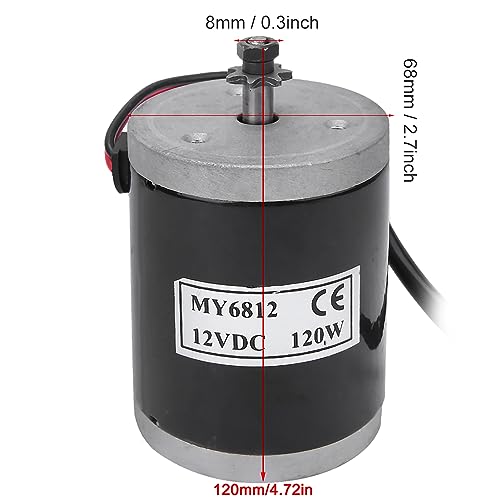

- 12 Volt Motor Size: The electric scooter motor has a length of 100 mm, a diameter of 68 mm, a shaft length of 28 mm, a shaft diameter of 8 mm, the distance between the two fixed holes of the scooter motor is 36 mm, and the sprocket is a 7 tooth sprocket for the 25H

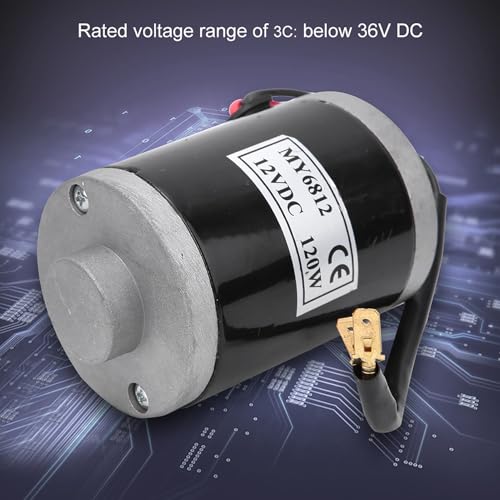

- Wide Range of Applications: Our brushed dc electric motor is mainly used in scooters, electric cars, rated voltage range up to 36V DC. The motor for electric scooter load capacity about 120kg, weight about 1.1kg
$89,15
49% OFF
$45,72
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$89,15
49% OFF
$45,72
20% de reembolso a tu cuenta de Deuna
Envío gratis
Llega en 5 a 12 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que sueñas y lo recibas del mundo a tu puerta.
Tarjetas de Débito y Crédito
Visa
Mastercard
American Express
Dinners
Discover
Alias
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
PayPal
Conoce más detalles
Item Type: Brushed MotorModel: MY6812Material: aluminumColor: as picture shownRated power: 120W (kW)Rated voltage: 12 (V)Main application: scooter, electric vehicleRated voltage range of 3C: below 36V DCRated current: Rated speed (RPM) : 2500±5%Maximum speed (RPM) : 3500±5%No-load current: Rated torque: 0.56 nmTransmission: belt pulley, metalShaft diameter: 8mm (single milling slot 1mm)Efficiency: > 68%Motor length: 100mm/3.9inchMotor diameter: 68mm/2.7inchShaft diameter: 8mm/0.3inchMotor fixed holes distance: 36mm/1.4inchPackage List：1 x Brushed Motor
