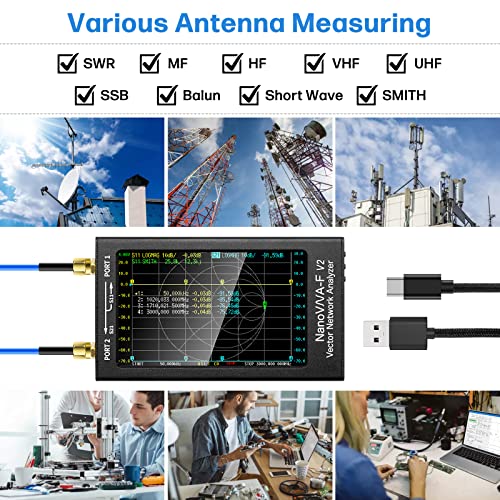

AURSINC NanoVNA-F V2 Vector Network Analyzer 50KHz-3GHz Antenna Analyzer 4.3inch Screen with 5000mAh + Filter Attenuator RF Demo Kit NanoVNA RF Tester Board
Disponibilidad
En stock
En stock
Peso con empaque
1.19 kg
1.19 kg
Devolución
Sí
Sí
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Sobre este producto
- [NanoVNA-F V2] The NanoVNA-F V2 upgraded to the latest Firmware 0.4.0, the operation page is compatible with Nanovna-F. It enables measurements of S-parameter, voltage standing wave ratio (SWR), phase map, group delay, Smith chart, DELAY, POLAR, LINEAR and more
- [NanoVNA-F V2] Frequency Range - The measurement range of nanovna-f v2 expanded to 50KHz-3GHz. The TX/RX method can measure the complete S11 and S21 parameters, S21 dynamic ranges: 70dB (1.5GHz), 60dB (3GHz); S11 dynamic ranges: 50dB (1.5GHz), 40dB (3GHz)
- [NanoVNA-F V2] 4.3'' Screen & 5000mAh Battery - The nanovna has a 4.3-inch IPS TFT LCD screen with a resolution of 800*480 and a resistive touch screen, providing a large viewing angle. It is equipped with an 5000mAh lithium battery for longer standby time, up to 7 hours of usage. With the use of a 2A large-current charging IC, the charging time is reduced. As an add-on, it built-in 5V output for charging Android phones or tablets
- [RF Demo Kit] This a NanoVNA RF test board independently designed by BH5HNU, with a size of 10 * 10CM. The VNA test board demo calibration board for learning nanaovna Vector Network Analyzer, Antenna Analyzer test calibration learning.
- [RF Demo Kit] has 18 functional modules- the board is totally integrated with 18 functional modules. Can be used to measure 30MHz short wave low-pass-filter LPF, 100MHz FM high-pass filter HPF, 433MHz commonly used SAW band pass filter BPF, 6.5MHz ceramic trap BSFtt
$213,86
10% OFF
$193,05
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$213,86
10% OFF
$193,05
$20 OFF al pagar con Deuna
Envío gratis
Llega en 5 a 12 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que sueñas y lo recibas del mundo a tu puerta.
Tarjetas de Débito y Crédito
Visa
Mastercard
American Express
Dinners
Discover
Alias
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
PayPal
Conoce más detalles
[NanoVNA F V3 Design of Aluminum Cases] Rugged and durable aluminum alloy cases, shielding electromagnetic interference to ensure precise measurements. The SMA radio frequency interface enables seamless connectivity with various measurement devices [PC & Android Phone Control] Using PC software NanoVNA Saver, it can connect to the NanoVNA, extracts data for display and save data in Touchstone files. The PC software enables us to export Touchstone (snp) files for various radio design and simulation software. Supports Android Mobile Phone only [Packing List] 1x Host (latest Firmware 0.4.0, 4.3-inch IPS TFT LCD screen, 5000mAh battery) 1x SMA Open Calibration Kit 1x SMA Short-circuit Calibration Kit 1x SMA 50Ω Load Calibration Kit 1x SMA-KK Double-Head Female Hole Adapter 1x SMA-JJ Double-Head Male Pin Adapter 1x SMA-JKW Elbow Outer Screw Inner Hole To Inner Screw Inner Needles Adapter 2x 20cm SMA-JJ RG405 RF Cable 1x USB Type-C Data Cable 1x Stylus RF Demo Kit NanoVNA RF Tester Board The test parameters of the 18 patterns of the test board are described as follows. Two steps must be performed before testing: Step 1. Connect the two 20CM SMA to IPEX adapter cables to the NanoVNA-F machine. Step 2. Recalibrate the machine using the 13 Short, 14 Open, 15 Load, and 16 Thru circuits on the test board, and save the parameters to SAVE 0. [Package Included] 1x PCB RF tester board 2 x 20cm adapter cables
