Artículo: AMZ-B07WHJMVR4

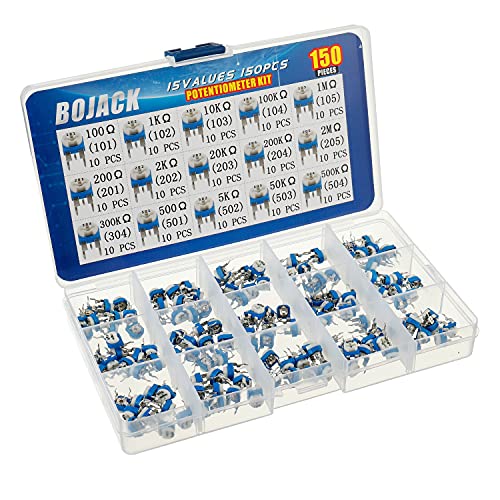

BOJACK 15 Values 150 pcs 100 Ohm- 2M Ohm Variable Resistor 6mm Potentiometer Assortment Kit packag in a Clear Plastic Box
En stock
0.20 kg
Sí
Nuevo
Amazon

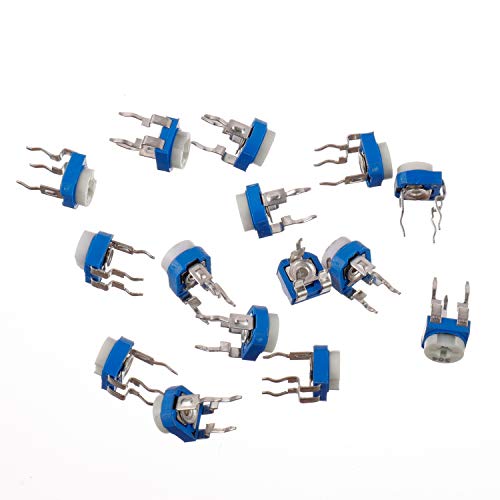

- BOJACK High Quality Variable Resistor 6mm Potentiometer Assortment Kit
- Rated power: 0.1W
- Max Operating Voltage: 50 V

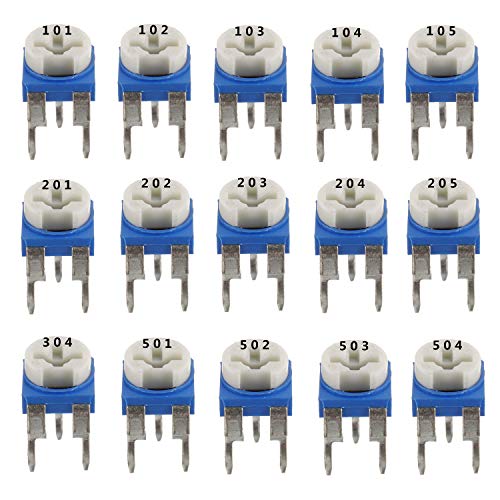

- Potentiometer Model:15 Type-100Ω(101),1KΩ(102),10KΩ(103),100KΩ(104),1MΩ(105),200Ω(201),2KΩ(202),20KΩ(203),200KΩ(204),2MΩ(205),300KΩ(304),500Ω(501),5KΩ(502),50KΩ(503),500KΩ(504)

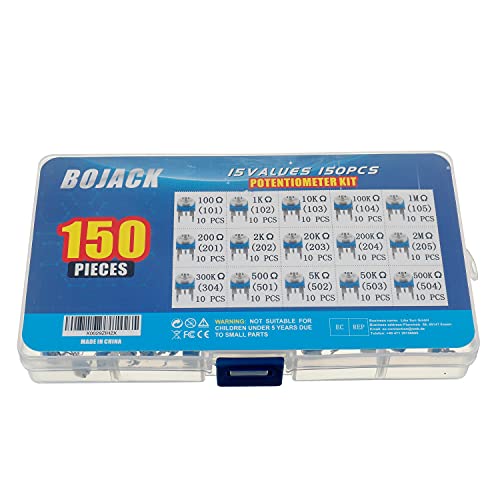

- Package Quantity: 150 pcs (Each model 10 pcs), Packed in A plastic storage case
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
Conoce más detalles
BOJACK 150 pcs High Quality Variable Resistor 6mm Potentiometer Assortment Kit Mechanical characteristics: Rotation angle: 200 ° ± 20 ° Rotational torque: 60~150g.cm Stop strength: 500g.cm performance: Plug-in method: Horizontal Resistance range (Ohms): 100~2M Ohm Resistance deviation: ±20% Rated power: 0.1W Maximum use voltage: 50V Resistance change characteristics: B Residual resistance: no more than 5% of the nominal resistance, the maximum does not exceed 30Ω Rotation life: After 100 turns of no-load rotation, the resistance changes up to ±15% Load life: load rated power for 3 hours, resistance change up to ± 5% Product Description: 101--------100Ω----10 pcs 102--------1KΩ -----10 pcs 103--------10KΩ----10 pcs 104--------100KΩ--10 pcs 105--------1MΩ-----10 pcs 201--------200Ω----10 pcs 202--------2KΩ------10 pcs 203--------20KΩ----10 pcs 204--------200KΩ--10 pcs 205--------2MΩ-----10 pcs 304--------300KΩ----10 pcs 501--------500Ω------10 pcs 502--------5KΩ--------10 pcs 503--------50KΩ------10 pcs 504--------500KΩ----10 pcs
