Artículo: AMZ-B07QGSW4Q1

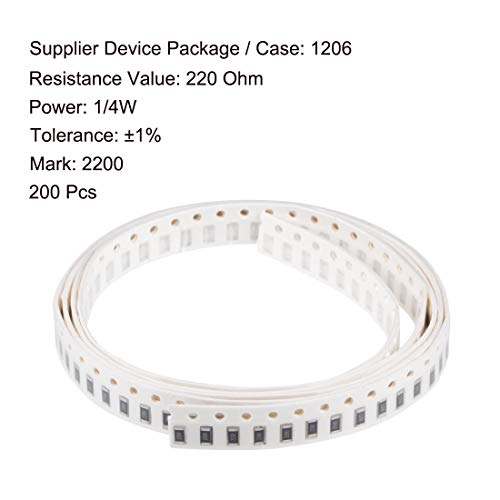

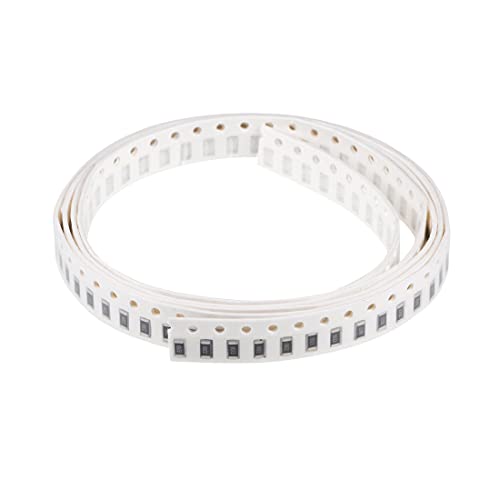

uxcell Surface Mounted Devices Chip Resistor, 220 Ohm 1/4W 1206 Fixed Resistors, 1% Tolerance 200pcs
En stock
0.20 kg
Sí
Nuevo
Amazon
- MATERIAL - glass glaze.
- PARAMETER - rated resistance:220 Ohm; tolerance: 1%.rated power: 1/4W; device package/case: 1206; size: 0.12-inch/3.2mm x 0.06-inch/1.6mm x 0.02-inch/0.55mm(L*W*T).
- FEATURE - thick film chip resistors,two end soldering,surface mount.
- APPLICATION - widely used in telecommunications equipment, radio and tape records, TV tuners, industry.
- PACKAGE CONTENT - 200 (+/-2%) x resistors.
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
Conoce más detalles
Small size and light weight, highly reliable multilayer electrode construction, for all soldering process.The Surface Mounted Devices chip resistor is widely used in telecommunications equipment, radio and tape records, TV tuners, automotive industry, etc. Note: Generally designed and used according to 70% of the rated and working power. Specifications:Material: Glass GlazeFeature: Thick Film Chip ResistorsDevice Package / Case: 1206Per Piece Size: 0.12-inch/3.2mm x 0.06-inch/1.6mm x 0.02-inch/0.55mm(L*W*T)Tolerance: ±1%Resistance Value: 220 OhmMark: 2200Power (Wattage): 1/4WRated Voltage: 7VMaximum Working Voltage: 200VNumber of Terminals: 2 Package Content : 200 (±2%) x Resistors
