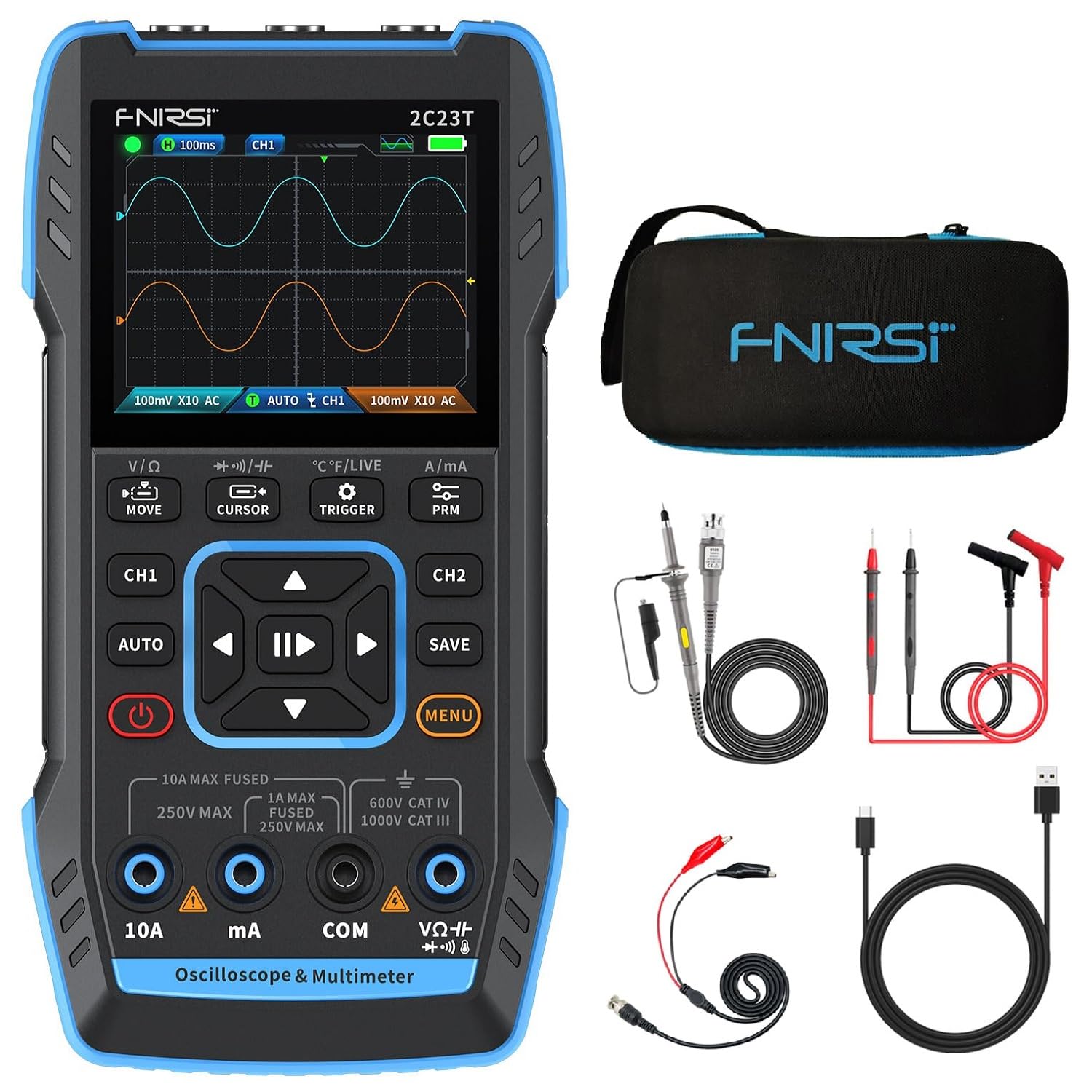

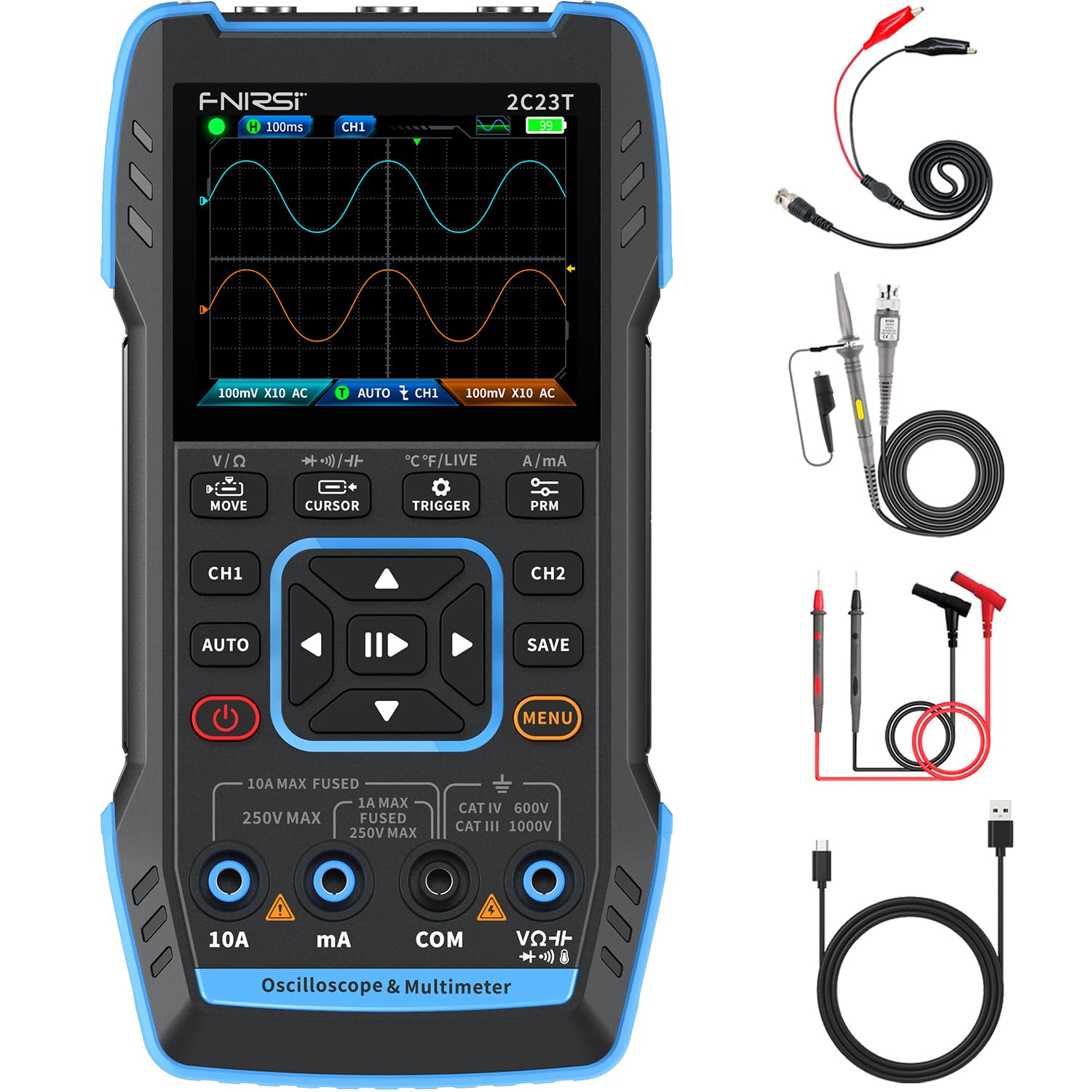

FNIRSI 2C23T Handheld Digital Oscilloscope Multimeter + Function Signal Generator Latest 3IN1 Dual Channel Oscilloscope Signal Generator 10MHZ*2 50MS/s

Conoce más detalles

FNIRSI 2C23T Handheld Digital Oscilloscope Multimeter + Function Signal Generator Latest 3IN1 Dual Channel Oscilloscope Signal Generator 10MHZ*2 50MS/s Product sellpoints The Oscilloscope adopts FPGA+MCU+ADC hardware architecture, with a sampling rate of 50MS/s, 10Mhz analog bandwidth, built-in high-voltage protection module, maximum support measurement of peak voltage of plusmn; 400V The multimeter has a 4-digit 10000 point true effective value and supports AC/DC voltage and current measurement, as well as capacitance, resistance, diode, on/off and other measurement functions.. Equipped with a built-in DDS function signal generator, it can output 7 types of function signals, with a maximum output of 2MHz for all signals and a step of 1Hz; The output frequency, amplitude, and duty cycle are adjustable. Using a 2.8 inch 320 * 240 resolution high-definition LCD display screen with a built-in 3000mAh rechargeable lithium battery, the standby time can reach up to 6 H. characteristic： FNIRSI-2C23T is a fully functional, highly practical, three in one dual channel digital oscilloscope designed for the maintenance industry and development industry launched by FNIRSI. This device is equipped with three main functions of oscilloscope, multimeter, and signal generator. Support for saving and viewing waveform screenshots for analysis .The multimeter has a 4-digit 10000 point true effective value and supports AC/DC voltage and current measurement, as well as capacitance, resistance, diode, on/off and other measurement functions. Whether used by professionals, factories, schools, enthusiasts, or families, it is an ideal multi-functional instrument. Oscilloscope Type: Standard, high (optional) Channel：Dual channel Sample rate：50M Analog bandwidth：10M(dual channel independent 10M) Storage depth：32kb Impedance：1M Omega; Time Base Range：50ns-10s Vertical sensitivity：20mV/div-10V/div（X1） Maximum measured voltage： plusmn;400V Trigger mode：AUTO/Normal/Single Trigger type：Rising edge, Falling edge Display mode：YT/Scroll Coupling method：AC/DC Save waveform screenshot：Yes Export waveform images：Yes Multimeter DC Voltage：9.999V~999.9V AC voltage：9.999V~750.0V DC current：9999uA~9.999A AC current：9999uA~9.999A Resistance：999.9 Omega;~99.99M Omega; Capacitance：9.999nF 99.99mF Temperature：(-55~1300℃)/(-67~2372℉) Diode：Yes Continuity test：Yes Live line detection：Yes Function Signal Generator Channel：Single channel Frequency：1Hz-2MHz Amplitude：0.1-3.3 Packing list: (standard) 1 x 2C23T 1 x P6100 Probe 1 x Crocodile clip probe 1 x Multimeter Probe 1 x Charging cable 1 x User Manual 1 x Packaging box Packing list: (high configuration) 1 x 2C23T 2 x P6100 Probe 1 x 1 x Crocodile clip probe 1 x Multimeter Probe 1 x Charging cable 1 x User Manual 1 x Packaging box
