SKU/Artículo: AMZ-B0FR55G13T

waveshare

ESP32-H2-Zero Mini Development Board, Adopts ESP32-H2FH4S Module with 96MHz Processor, Integrating IEEE 802.15.4 (Zigbee 3.0 and Thread) and BLE 5, 4MB Flash, Supports ESP-IDF, Arduino IDE

Detalles del producto

Disponibilidad:
En stock

Peso con empaque:
0.15 kg

Devolución:
Sí

Condición
Nuevo

Producto de:
Amazon

Viaja desde
USA

Sobre este producto

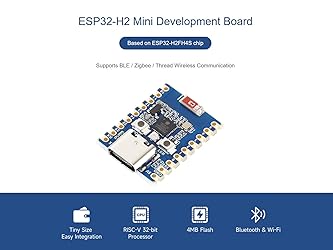

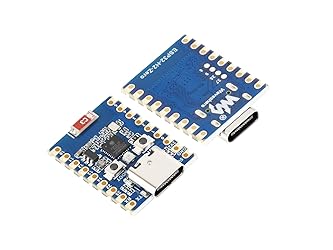

Overview The ESP32-H2-Zero is an entry-level RISC-V microcontroller development board integrating BLE 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread). It is compact in size and powerful, with multiple peripheral interfaces. Suitable for smart home, industrial automation, healthcare, consumer electronics and other applications. Adopts ESP32-H2FH4S module, which is equipped with RISC-V 32-bit single-core processor, up to 96MHz main frequency, built-in 4MB Flash; Integrates rich peripherals including SPI, UART, I2C, I2S, LED PWM, ADC and other interfaces, more convenient to use and expand a variety of peripheral modules. Comes with online examples and tutorials for ESP-IDF and Arduino IDE development environment, so that you can easily and quickly get started and apply it to the product. Features Adopts ESP32-H2FH4S chip with RISC-V 32-bit single-core processor, up to 96MHz main frequency, built-in 4MB Flash Integrated BLE 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance Type-C connector, easier to use Rich peripheral interfaces, offer strong compatibility and expandability Castellated module allows soldering directly to carrier boards Package Content ESP32-H2-Zero x1 NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!

Producto prohibido

Este producto no está disponible

Este producto viaja de USA

a tus manos en

Medios de pago

Conoce más detalles

ESP32-H2-Zero RISC-V microcontroller development board adopts ESP32-H2FH4S module, which is equipped with RISC-V 32-bit single-core processor, up to 96MHz main frequency. 320 KB S-R-A-M, 128 KB ROM, 4 KB LP memory, and 4MB Flash memory ESP32-H2 mini development board integrate BLE 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, featuring superior RF performance Integrates rich peripheral interfaces, compatible with the pins of ESP32-H2-DevKitM-1 development board, offers strong compatibility and expandability. Adopts Type-C connector, no need to worry about insertion direction Support a variety of low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios Comes with online examples and tutorials for ESP-IDF and Arduino IDE development environment, making it easy and quick to get started and apply it to products

ESP32-H2-Zero Mini Development Board, Adopts ESP32-H2FH4S Module with 96MHz Processor, Integrating IEEE 802.15.4 (Zigbee 3.0 and Thread) and BLE 5, 4MB Flash, Supports ESP-IDF, Arduino IDE
