SKU/Artículo: AMZ-B0FHPRPGRF
Mocarehealth

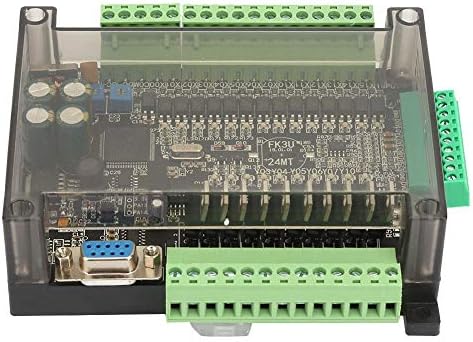

PLC Controller, DC24V Programmable Logic Controller 100K Pulse 32bit MCU Industrial Control Board with Housing for FX3U-24MT, 14 Point Input 10 Transistor Output
Disponibilidad:
En stock
En stock
Peso con empaque:
0.15 kg
0.15 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- SUPPORTS LADDER DIAGRAM LANGUAGE: The PLC controller uses ladder diagram language to program, download and monitor and supports for GX-Develoer, GX-WORK2.
- SUPPORTS HUMAN-MACHINE INTERFACE LINK: The PLC controller supports for human-machine interface link, and the programming port is the port for program upload, download and HMI communication.

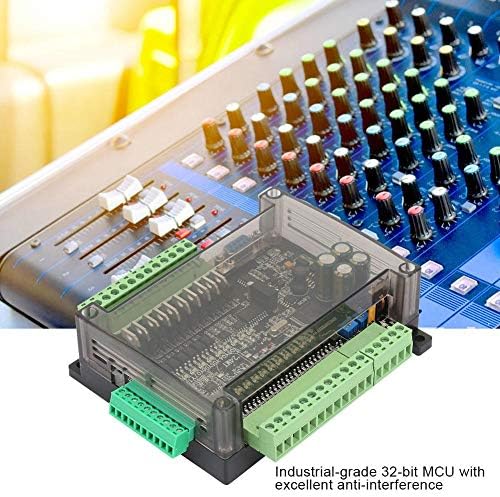

- STRONG ANTI-INTERFERENCE & EXCELLENT RUNNING PERFORMANCE: Our PLC controller adopts industrial-grade 32-bit MCU for strong anti-interference and faster running performance. The transmission baud rate is 38400.
- SUPPORTS 14 POINT INPUT & 10 TRANSISTOR OUTPUT: The PLC board supports 14 point input and 10 transistor output. Y0-Y3 transistor can output up to 100K pulse. Y4-Y7 transistor can output up to 12K pulse. Y0-Y10 can also be used for ordinary output, which can drive stepping, solenoid valve, cylinder and other DC 24V load.
- SUPPORTS WIDE USE: The PLC board is powered by DC 24V. Do not input AC or 220V voltage. Widely used for fields of printing, metallurgy, food, textile, packaging, home, building materials, , chemicals.
AR$264.650
55% OFF
AR$120.298
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
AR$264.650
55% OFF
AR$120.298
Pagá fácil y rápido con Mercado Pago o MODO
Llega en más de 28 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Conoce más detalles
Specification:Baud Rate:38400Power Source:24VDCInput power DC 24V Number of steps 8000 steps; 2 communication ports: 1 RS232 Input point X component XO-X27, DC24 input, active low. X0-5 is the high-speed counting input port Input point Y component YO-Y3 is the transistor output, the transistor output current is 500mA, plus the freewheeling diode can reach 4A; YO-Y3 is 4 channel 100K pulse output, the output current is 500mA, plus the freewheeling diode can reach 4A.; Y4~Y11 is the transistor common output Can directly drive 24V3A load Analog input 6 analog inputs, 12-bit accuracy, ; read analog with RD3A instructions Analog output 2 analog outputs, 12-bit accuracy, output voltage: 0-10V. Output analog voltage with WR3A command Intermediate relay M MO-M3071, the power-down storage range can be set to MO-M1023, the default M500-M1023 Step point S S0-1023, the power-down storage range can be set to S0-S1023, the default S500-S9999 100Ms timer TO-T199, cumulative power-down save T184-T199 10Ms timer T200-T249, cumulative power-down save T246-T249 1Ms timer T250-T383, where T250-255 is cumulative 16-bit counter CO-C199, save power C100-199 32-bit counter C200-C219, save power C220-C234 32-bit high-speed counter C235-255; C235-240 is a single-phase counter, no multiplier; C241-240 is a single-phase counter, 2 times the frequency; C247-249 is a two-phase counter, no multiplier; C250-252 is a two-phase counter, 2 times Frequency; C253-255 is a two-phase counter, 4 times frequency Register D DO-D7999, the power-down storage range can be set to DO-7999. Indirect addressing pointer V, Z VO-7, Z0-7 P subroutine jump number PO-63 I interrupt XO-5 is interrupted outside. Timer interrupt .Package List:1 x PLC Controller
