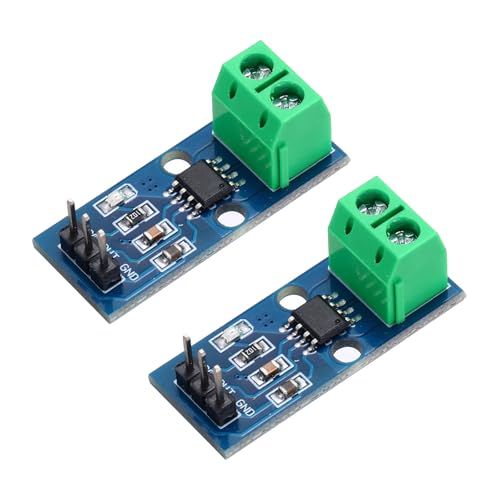

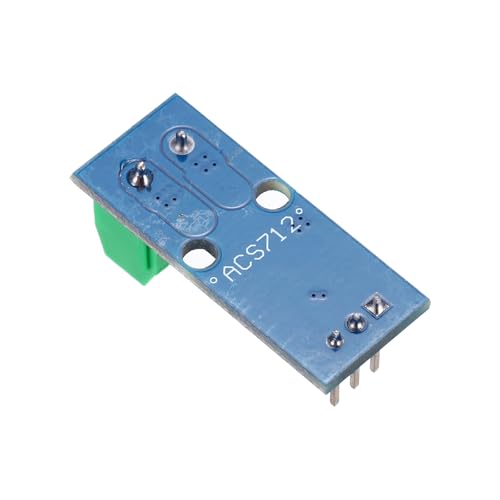

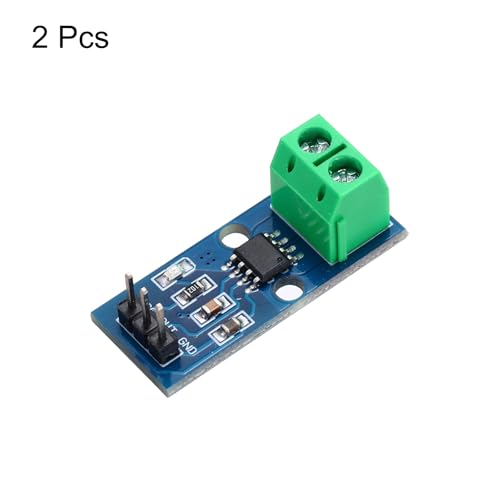

MECCANIXITY 2pcs ACS712 Current Sensor Module 30A Range Hall Effect Current Sensor Current Measuring AC/DC for Detecting Current
Disponibilidad:
En stock
En stock
Peso con empaque:
0.33 kg
0.33 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- The ACS712 current sensor module is a Hall effect current sensor integrated circuit (IC) used to measure the intensity of DC or AC current and are widely used in current detection, motor control, power management, smart home, industrial automation and green energy.

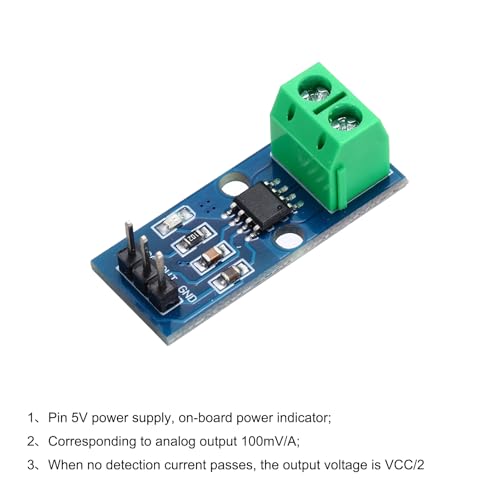

- Current sensor chip: ACS712ELC-30A; Pin 5V power supply, on-board power indicator; Measuring range: ±30A, corresponding to analog output 100mV/A; When no detection current passes, the output voltage is VCC/2.
- Hall effect current sensors have the characteristics of high accuracy and low drift, and can accurately measure the intensity of DC or AC current. They have fast response speed, high reliability and wide application range.
- Connect the current to be measured in series with the input terminals of ACS712,please pay attention to the correct direction.
- ACS712 is based on the principle of Hall detection. Please try to avoid the influence of magnetic field when using it.
AR$19,075
31% OFF
AR$13,155
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
AR$19,075
31% OFF
AR$13,155
Pagá fácil y rápido con Mercado Pago o MODO
Llega en 8 a 12 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
Tarjetas de Crédito y Débito
Visa
Mastercard
American Express
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
Paypal
Pagos a través de MODO
Compra procesada en pesos desde la App de tu banco.
PayPal
Conoce más detalles
What is this?The ACS712 current sensor module is a Hall effect current sensor integrated circuit (IC) used to measure the intensity of DC or AC current. Current measurement sensor accurately detect the current intensity passing through the wire and are widely used in current detection, motor control, power management, smart home, industrial automation and green energy.What will I get?Current sensor chip: ACS712ELC-30A;Pin 5V power supply, on-board power indicator;Measuring range: ±30A, corresponding to analog output 100mV/A; When no detection current passes, the output voltage is VCC/2; Size: 31.5mmx13mm/1.24x0.51 inch(L*W); Package Included: 2pcs x Current Sensor ModuleAre there any advantages of the product?Hall effect current sensors have the characteristics of high accuracy and low drift, and can accurately measure the intensity of DC or AC current. They have fast response speed, high reliability and wide application range.How to use it?Connect the current to be measured in series with the input terminals of ACS712,please pay attention to the correct direction.What should I notice?ACS712 is based on the principle of Hall detection. Please try to avoid the influence of magnetic field when using it.
