SKU/Artículo: AMZ-B0F8BVJZXW
Wonrabai

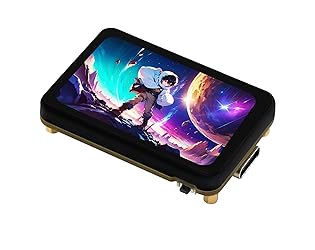

ESP32-S3 1.64inch AMOLED Touch Display Development Board, 280x456, QSPI Interface, Onboard Accelerometer and Gyroscope Sensor and Other Interfaces, ESP32 with Display
Detalles del producto
Disponibilidad:
En stock
En stock
Peso con empaque:
0.34 kg
0.34 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto
- Description 1.ESP32-S3 Development Board with1.64inch AMOLED Touch Display. Embedded with CO5300 Display Driver and FT3168 Capacitive Touch Chip. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. 2. Supports 2.4GHz W--i-Fi (802.11 b/g/n) and Blue-tooth 5 (LE), with an onboard antenna. The device allows switching to use an external antenna by resoldering an onboard resistor. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM. 3. Onboard 1.64inch AMOLED display, QSPI interface, 280 x 456 resolution, 16.7M color. 178° wide viewing angle. The AMOLED is recognized as the next-generation display technology, offers superior light-control precision compared to traditional LCD screens. It delivers more vibrant colors, finer details, and more lifelike videos and images. 4. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for motion gesture detection, step counting, and more. Onboard RST button, along with programmable BOOT button for customizable functionality and flexible development. 5. Onboard 3.7V MX1.25 Lithium batt-ry recharge/discharge header. Onboard TF card slot, enabling external storage for pictures or files. Onboard USB Type-C port for power supply, program downloading, and debugging, making development more convenient. 6. Supports capacitive touch function, controlled via I2C interface. Adapting I2C, UART, and USB interfaces, for connecting peripherals and debugging. Adopts CNC-machined metal frame for better protection, nice looking. Comes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl/twm4t Package Content ESP32-S3-Touch-AMOLED-1.64 x1 11Pin black pinheader (2.54mm) x2
AR$78.942
31% OFF
AR$54.440
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
AR$78.942
31% OFF
AR$54.440
10% OFF con cupon ANIVERSARIO10
Pagá fácil y rápido con Mercado Pago o MODO
Llega en 8 a 12 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Conoce más detalles
ESP32-S3 Development Board with1.64inch AMOLED Touch Display. Embedded with CO5300 Display Driver and FT3168 Capacitive Touch Chip. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz W--i-Fi (802.11 b/g/n) and Blue-tooth 5 (LE), with an onboard antenna. The device allows switching to use an external antenna by resoldering an onboard resistor. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM. Onboard 1.64inch AMOLED display, QSPI interface, 280 x 456 resolution, 16.7M color. 178° wide viewing angle. The AMOLED is recognized as the next-generation display technology, offers superior light-control precision compared to traditional LCD screens. It delivers more vibrant colors, finer details, and more lifelike videos and images. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for motion gesture detection, step counting, and more. Onboard RST button, along with programmable BOOT button for customizable functionality and flexible development. Onboard 3.7V MX1.25 Lithium batt-ry recharge/discharge header. Onboard TF card slot, enabling external storage for pictures or files. Onboard USB Type-C port for power supply, program downloading, and debugging, making development more convenient. Supports capacitive touch function, controlled via I2C interface. Adapting I2C, UART, and USB interfaces, for connecting peripherals and debugging. Adopts CNC-machined metal frame for better protection, nice looking. Comes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl/twm4t
