MicoAir Optical Flow & Range Sensor MTF-02P Compatible with Ardupilot/PX4/INAV
Detalles del producto
Disponibilidad:
En stock
En stock
Peso con empaque:
0.15 kg
0.15 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto

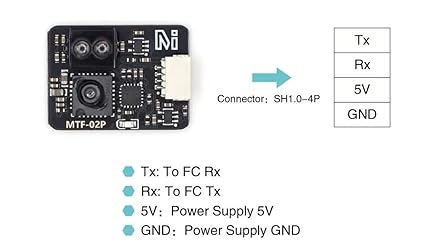

- ProtocolMTF-02P supports multiple serial protocols such as Micolink, Mavlink, and MSP, and is compatible with mainstream open-source flight controllers including Ardupilot, PX4, and INAV.You can easily switch its protocol by bridging the jumper on the back of the board. The module protocol can also be switched using MicoAssistant, though the jumper configuration takes precedence.SpecificationsOutput Interface: UART/115200/LVTTLProtocol: Micolink/Mavlink/MSPOutput Rate: 50HzFirmware Supported: Ardupilot/PX4/INAV/FMTTOF Range: 6m@90% reflectance/1K Lux; 4m@90% reflectance/70K LuxCenter Wavelength: 940nmEmitting Angle: 2°Dead Zone: 2cmRanging Accuracy: 2cm (<2m@90% reflectance); 1.5% (>2m@90% reflectance)Optical Flow FOV: 42°Max Speed Measurement: 7m/s@1m heightAmbient Light Demand of Optical Flow: >60LuxOptical Flow Working Distance: >8cmPower Consumption: 200mW (40mA@5V)Supply Voltage: 5VPhysicalDimensions: 21.6 x 16 x 6.5 mmWeight: 1.8gSensor 3D FileDownload the MTF-02 Sensor Case from GrabCAD or MakerWorld (Designed by ROBOFUSION).User Manual & ConfiguratorDownload MTF-02P User Manual or MicoAssistant_v0.9.15 here.TutorialSetup Optic Flow & Lidar (MTF-01/MTF-01P/MTF-02P) for Ardupilot & PX4 to improve drone hover and indoor flightSetup Optic Flow & Lidar (MTF-01/MTF-01P) for INAV6 to improve drone hover and indoor flightNote: The tutorials use the MTF-01 sensor as an example; the configuration method is the same for other sensors.Package ListMTF-02P module x 120cm SH1.0 4PIN-4PIN cable x 120cm SH1.0-MX1.25-6P cable x 1 (for pixhawk2.4.8)20cm SH1.0-GH1.25-6P cable x 1 (for pixhawk4/5/6)
AR$87.649
44% OFF
AR$48.690
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
AR$87.649
44% OFF
AR$48.690
10% OFF con cupon ANIVERSARIO10
Pagá fácil y rápido con Mercado Pago o MODO
Llega en 8 a 12 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Conoce más detalles
Multi-Protocol Compatibility for Mainstream Flight Control Systems The MTF-02P supports various communication protocols, including Mavlink and MSP, making it compatible with popular open-source flight control systems such as Ardupilot, PX4, and INAV. Users can easily switch protocols through a jumper on the back of the module or by using the MicoAssistant software, allowing for flexible adaptation to different flight control needs. High-Precision Optical Flow and Ranging for Stable Hovering Indoors and Outdoors This module features a 940nm laser-based ranging sensor with an optical lens, achieving a range of up to 6 meters at 90% reflectivity with a measurement error of less than 2cm, enabling precise distance sensing. With a 42° optical flow field of view and a maximum speed measurement of 7m/s, it ensures accurate hovering even in low-light environments, making it particularly well-suited for indoor flight. Ultra-Compact Size and Low Power Consumption for Lightweight Drones Measuring just 21.6 x 16 x 6.5 mm and weighing only 1.8g, the MTF-02P has a low power consumption of 200mW (40mA@5V), making it ideal for integration into lightweight drones and significantly extending flight time. Flexible Power and Interface Options for Easy Integration The MTF-02P supports 5V power and includes multiple interface cables for compatibility with popular controllers such as Pixhawk 2.4.8, Pixhawk 4/5/6, and the full range of MicoAir flight controllers, allowing for quick and easy setup. Comprehensive Mounting Support and Open-Source Resources The MTF-02P comes with a detailed user manual and MicoAssistant configuration software, along with 3D design files for a sensor housing, enabling users to modify or print the housing as needed. Additionally, a wealth of documentation and tutorials on YouTube and GitHub provides extensive support for quick setup and configuration.
