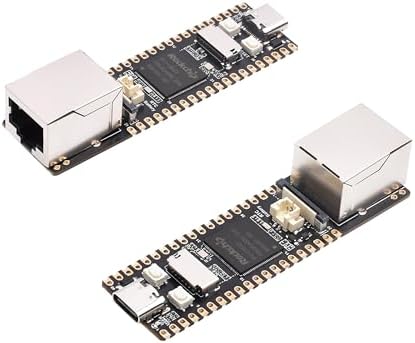

Luckfox Pico Max Linux Micro Development Board RV1106G3 Chip, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, with Rich Interfaces MIPI CSI/GPIO/UART/SPI/I2C/USB, etc-256MB DDR3L Memory
Disponibilidad:
En stock
En stock
Peso con empaque:
0.33 kg
0.33 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- Luckfox Pico Max without header (256MB Memory) is RV1106G3 Chip Linux Micro Development Board, integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, with Rich Interfaces MIPI CSI/ GPIO/ UART/SPI/I2C/USB, etc, which is convenient for developing and debugging quickly
- Highly integrated and powerful performance. Integrates CPU, NPU, ISP and other processors. Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
- Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
- Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
- Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
- Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths. Integrated with built-in POR, audio codec and MAC PHY
AR$102,063
60% OFF
AR$40,825
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
AR$102,063
60% OFF
AR$40,825
Pagá fácil y rápido con Mercado Pago o MODO
Llega en 18 a 28 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
Tarjetas de Crédito y Débito
Visa
Mastercard
American Express
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
Paypal
Pagos a través de MODO
Compra procesada en pesos desde la App de tu banco.
PayPal
Conoce más detalles
Introduction Luckfox Pico Max without header (256MB Memory) Linux Micro Development Board based on the Rockchip RV1106G3 chip. RV1106 is a highly integrated IPC visual processing SoC designed for AI-related applications. It is built on a single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU, and features a built-in NPU that supports INT4/INT8/INT16 mixed operations, with a computing power of up to 0.5 TOPs. Features Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4 Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc. Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths Integrated with built-in POR, audio codec and MAC PHY Specifications NPU: 0.5TOPS, supports int4, int8 and int16 ISP: Input 5M @30fps (Max) Memory: Max: 256MB DDR3L USB : USB 2.0 Host/Device Camera : MIPI CSI 2-lane GPIO: 26 x GPIO pins Ethernet port: 10/100M Ethernet controller and embedded PHY Default Storage : SPI NAND FLASH (256MB) Comes with Online Tutorial and Online Development Resource: n9.cl/7hvnx Package Content Luckfox Pico Max without headerx1
