SKU/Artículo: AMZ-B0C23CR74X

AITRIP

AITRIP 20PCS 1.5A Multi-Function Mini Boost Module Step Up Board 3.7V to 5V 8V 9V 12V Step Up Board with LED Indicato for DIY Electronic Voltage Moduler(20PCS 3.7v to 5v Boost Converter)

Color:

20pcs

10pcs

20pcs

Detalles del producto

Disponibilidad:
En stock

Peso con empaque:
0.15 kg

Devolución:
Sí

Condición
Nuevo

Producto de:
Amazon

Viaja desde
USA

Sobre este producto

Specifications:Output Voltage: can be set to 5V/8V/9V/12V, the default is 12VInput Voltage: 2.5V~VOUT-0.5VOutput Performance: Take 3.7V lithium battery input as an example, it can output 5V1A, 8V0.7A, 9V0.6A, 12V0.5A. Make sure that the input current and output current do not exceed 1.5A.When the default 12V output, the LED indicator consumes about 6mA; If the indicator light is turned off, the input current<1mAProduct size: 22 × 11 × 3.6mmINSTRUCTIONS:The front side of the PCB can be seen with the words A and B. The output voltage can be changed by using the soldering iron to change the pad on and off. In the following table, 0 means the pad is disconnected and 1 means the pad is connected.A B VOUT0 0 5V0 1 8V1 0 9V1 1 12VPackage included:20 x Mini Boost Module 3.7V Lithium Battery to 5V 8V 9V 12V Step Up Board

AR$42.309

55% OFF

AR$19.230

AR$42.309

55% OFF

AR$19.230

Llega en 8 a 12 días hábiles

con envío

Tienes garantía de entrega

Medios de pago

Cantidad

Este producto viaja de USA

a tus manos en

Medios de pago

Conoce más detalles

The output voltage can be set to 5V/8V/9V/12V, the default is 12V Input voltage range: 2.5V~VOUT-0.5V You can easily convert a single-cell lithium battery to 5V 8V 9V 12V. The maximum output current reaches 1A.The front side of the PCB can be seen with the words A and B. The output voltage can be changed by using the soldering iron to change the pad on and off. The 3.7v to 5v boost converter product size: 22 × 11 × 3.6mm

AITRIP 20PCS 1.5A Multi-Function Mini Boost Module Step Up Board 3.7V to 5V 8V 9V 12V Step Up Board with LED Indicato for DIY Electronic Voltage Moduler(20PCS 3.7v to 5v Boost Converter)

Conoce más detalles

AITRIP 3PCS DS3231 Real Time Clock Module RTC Sensor High Precision AT24C32 IIC Timer Alarm Clock for Arduino Raspberry Pi

AITRIP NewElectronics Component Fun Kit w/Power Supply Module, Jumper Wire, 830 tie-Points Breadboard, Precision Potentiometer,Resistor Compatible with Arduino, Raspberry Pi, STM32

AITRIP 6PCS DS3231 Real Time Clock Module RTC Sensor High Precision AT24C32 IIC Timer Alarm Clock for Arduino Raspberry Pi(6PCS ds3231)

AITRIP Type-c CP2112 Adapter, 2PCS CP2112 debug Board USB to I2C Communication Module to SMBus I2C Communication with Wires for arduino

AITRIP New Electronics Basic Kit w/Power Supply Module, 400 Points Solderless Breadboard, Jumper Wire, LED,Resistor,Compatible with Arduino, Raspberry Pi, STM32

Integrated-Circuit Operational Amplifiers

The Ultimate Integrated Circuit Design: A Practical Approach To IC Development

AITRIP 3PCS Type c 30pins CP2102 ESP-WROOM-32 ESP32 ESP-32S Development Board 2.4GHz Dual-Mode WiFi + Bluetooth Dual Cores Microcontroller Processor Integrated with Antenna RF AMP Filter AP STA

AiTrip EEPROM BIOS USB Programmer CH341A + SOIC8 Clip + 1.8V Adapter + SOIC8 Adapter for 24 25 Series Flash

AITRIP 2 Pack ESP32 Development Board ESP32-2432S028R WiFi Bluetooth 2.8 Inch 240X320 Smart Display TFT Module Touch Screen for Arduino

AITRIP 1 Pack ESP32 Development Board ESP32-2432S028R WiFi Bluetooth 2.8 Inch 240X320 Smart Display TFT Module Touch Screen for Arduino

AITRIP 10PCS ESP32S ESP32 ESP-WROOM-32 Development Board 2.4GHz Dual-Core WiFi +Bluetooth 2 Function Microcontroller for Arduino

AITRIP 4PCS 100W 5A USB-C Fast Charge USB-C PD QC DC 5V 9V 12V 15V 20V Adjustable Voltage Power Trigger Module 5A Type-C Female Input

AITRIP 3 Sets 30PIN ESP32 ESP-32S Type-C USB CP2102 Development Board + ESP32 Breakout Board Shield GPIO 1 into 2 Board 2.4GHz WiFi Bluetooth Dual Core

AITRIP 1PCS ST-Link V2 Emulator Downloader Programmer STM32F103C8T6 STM8 STM32 with Cable (Random Color)

AITRIP 3 Sets ESP-WROOM-32 ESP32 ESP-32S 38Pin Development Board Type C Interface ESP-WROOM-32 with ESP32 Breakout Board Shield Terminal Adapter for ESP32 38 PIN Narrow

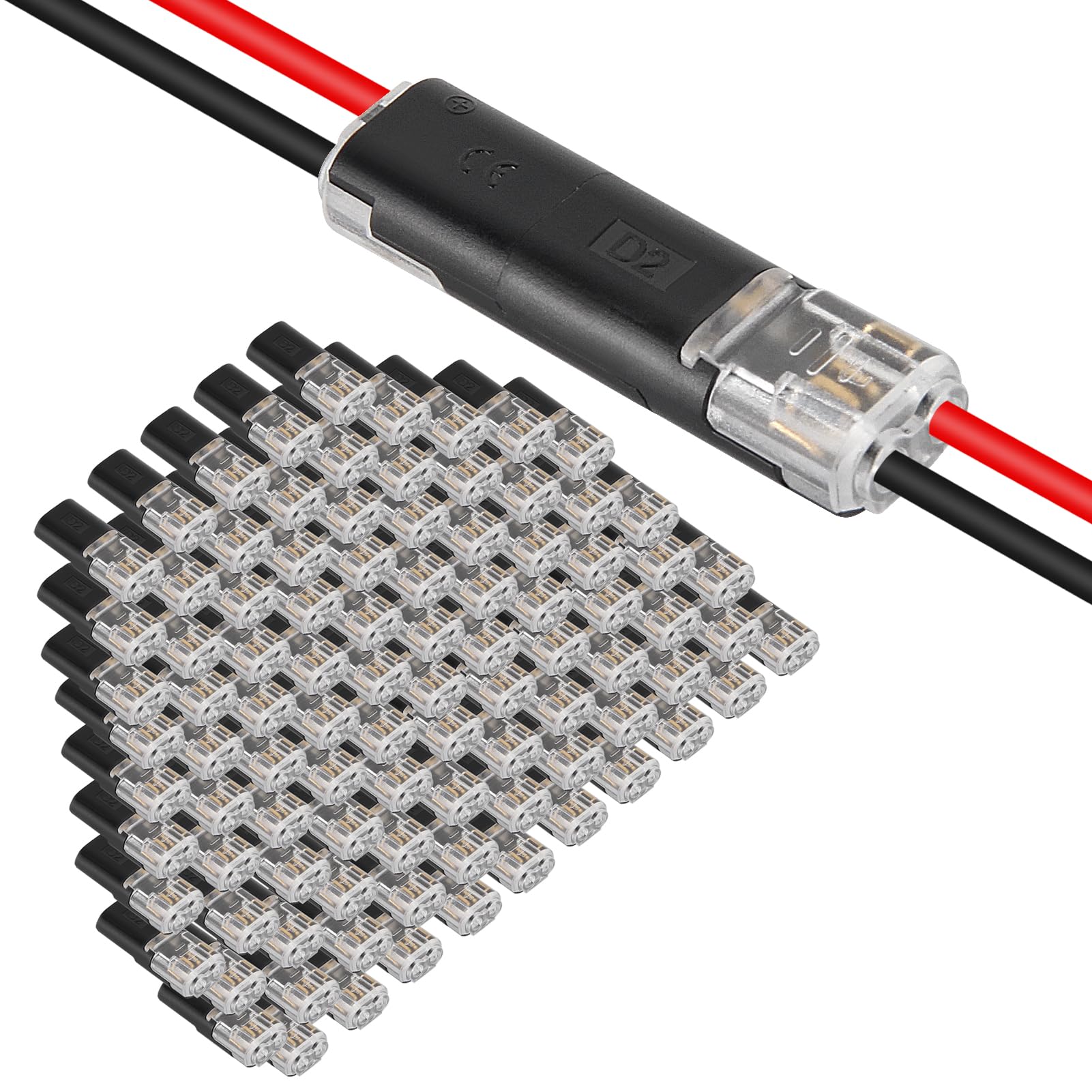

AITRIP 100PCS Double-Wire Plug-in Connector, Pluggable 2 Pin 2 Way Led Strip Lights Connectors Low Voltage Wire Connector with Locking Buckle, Fast Connect Plugs Led Connectors for Strip Lights
