SKU/Artículo: AMZ-B0B8BQHFZJ
CNCTOPBAOS
CNCTOPBAOS 4 Axis CNC Controller DDCSV4.1,PLC Offline Stand Alone System Replace Mach3,Slave Stepper Servo Motor Motion Controller for CNC Router Engraving Lathe Milling Machine
Style:
Style-DDCS-V4
Detalles del producto
Disponibilidad:
En stock
En stock
Peso con empaque:
2.00 kg
2.00 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto

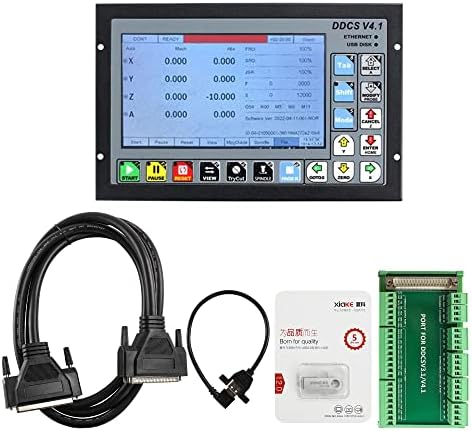

- Product packaging:1 × 4 Axis DDCSV4.1 CNC stand alone motion controller1 × 4GB USB flash drive1 × USB extension cable and other small accessories1 × parallel port link cable1 × Breakout BoardEnglish user manual DDCS V4.1 Brief feature:1) 18 photoelectric isolated digital inputs,3 photoelectric isolated digital outputs. 2) The spindle can be confifigurated as Analog spindle(0~10V) and also Servo spindle. 3) 3-4 axes motor Control. Difffferential Mode and Double Pulse Mode output signal for optional, Maximum interpolation pulse output frequency is 500Khz/Axis, 2-4 Axis linear interpolation, any 2 axis circular interpolation; 4) ARM9 main control chip,FPGA core algorithm chip. 5) 7 inches TFT screen, Size: 1024x600 Pixels, Resolution：72 Pixels/Inch; 17 operation keys. 6) The Power Supply for IO Port is 24VDC,minimum current is 0.5A, the Power Supply for Control ler system is also 24VDC,minimum current is 0.5A. Controller needs both power to work properly. 7) USB flflash disk support for G code fifile input; Can transfer the fifiles by Ethernet communication between the computer and DDCS V4.1 controller; No size limited of the G-code fifile. 8) Compatible with standard G-code, support popular CAD/CAM software, such as ArtCam, MasterCam, ProE, JDSoft SurfMill, Aspire, Fusion 360 and so on; 9) Support standard MPG. 10) Support function of“ Try cutting” (handwheel guiding) function. the distance. 11）Support Jog function for each axis (continuous, step, defifined distance), Customer can defifine 12）Support Float Probe, Fix Probe, Vertex Probe and Tool Length Measurement. 13) Support the operation of quickly go to specify line and closest position. cal machining.
AR$1.196.300
55% OFF
AR$543.776
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
AR$1.196.300
55% OFF
AR$543.776
Pagá fácil y rápido con Mercado Pago o MODO
Llega en 8 a 12 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Conoce más detalles
Model Number: DDCSV4.1; 7 inches TFT screen,resolution ratio: 1024x600 ; 17 operation keys;Difffferential Mode and Double Pulse Mode output signal for optional, Maximum interpolation pulse output frequency is 500Khz/Axis, 2-4 Axis linear interpolation, any 2 axis circular interpolation Feature: ARM9 main control chip,FPGA core algorithm chip;18 photoelectric isolated digital inputs,3 photoelectric isolated digital outputs; The spindle can be confifigurated as Analog spindle/0-10V and also Servo spindle Slave function: Slave X, Slave Y Or Slave Z, for Gantry machine with two independent motors on main axes Power requirements: The Power Supply for IO Port is 24VDC,minimum current is 0.5A, the Power Supply for Control ler system is also 24VDC,minimum current is 0.5A. Controller needs both power to work properly Support G code file: USB flash disk support for G code file input; Can transfer the files by Ethernet communication between the computer and DDCS V4.1 controller; No size limited of the G-code file
