Waveshare

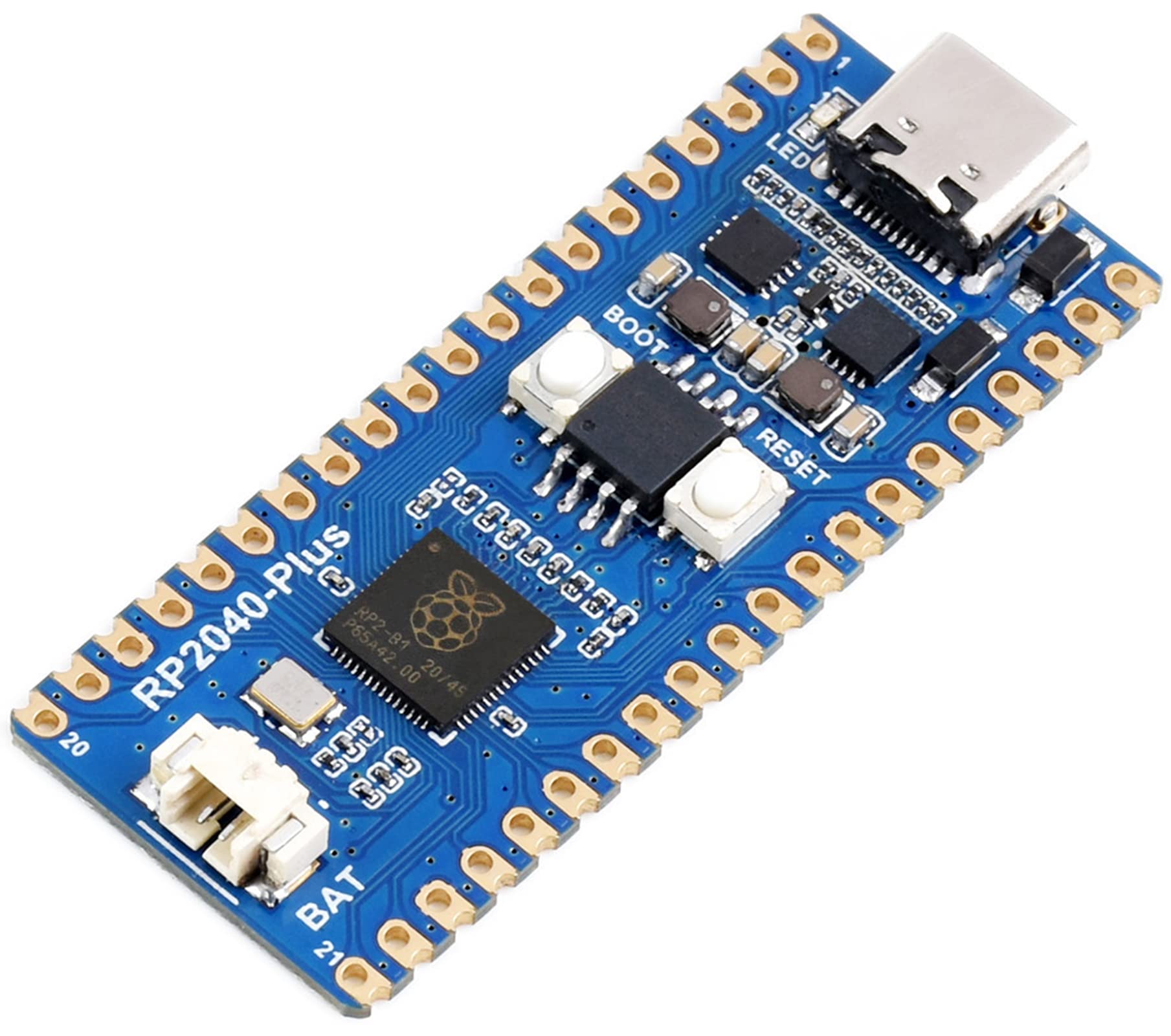

RP2040-Plus with Pre-Soldered Header,Pico-Like MCU Board Based on Raspberry Pi RP2040, Dual-Core Arm Cortex M0+ Processor Onboard 4MB Flash,USB-C Connector,Recharge Header, Higher Current DC-DC Chip
Color:
RP2040-Plus Board with Header
Disponibilidad:
En stock
En stock
Peso con empaque:
0.33 kg
0.33 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- Waveshare RP2040-Plus with Pre-Soldered Header, a Pico-like MCU Board Based on Raspberry Pi Microcontroller RP2040. 1) As same as Raspberry Pi Pico, with dual-core Arm Cortex M0+ processor running up to 133 MHz, and 26x multi-function GPIO pins. 2) The most different features of RP2040-Plus are that it onboard 4MB Flash, USB-C connector, recharge header, and higher current DC-DC chip. 3) RP2040-Plus Board with Pre-Soldered Pinheader
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz. 264KB of SRAM, and 4MB of on-board Flash memory. USB-C connector, keeps it up to date, easier to use
- Lithium battery recharge/discharge header, suitable for mobile devices. Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch. 26 × multi-function GPIO pins,configurable pin function, allows flexible development and integration.2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels.
- Castellated module allows soldering direct to carrier boards. USB 1.1 with device and host support. Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB.
Producto prohibido
Este producto no está disponible
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
Tarjetas de Crédito y Débito
Visa
Mastercard
American Express
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
Paypal
Pagos a través de MODO
Compra procesada en pesos desde la App de tu banco.
PayPal
Conoce más detalles
Overview Need more Flash for Raspberry Pi Pico? Dislike the outdated Micro USB connector? All these problems are solved by our RP2040-Plus now. As same as Raspberry Pi Pico, it incorporates the RP2040 microcontroller, with dual-core Arm Cortex M0+ processor running up to 133 MHz, and 26x multi-function GPIO pins. What's different, it features onboard 4MB Flash, USB-C connector, recharge header, and higher current DC-DC chip. And it is RP2040-Plus Board with Pre-Soldered Pinheader. Key Features RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz 264KB of SRAM, and 4MB of onboard Flash memory USB-C connector, keeps it up to date, easier to use Lithium battery recharge/discharge header, suitable for mobile devices Onboard DC-DC chip TPS63000, high-efficiency DC-DC buck-boost chip, 1.8A current switch The castellated module allows soldering directly to carrier boards USB 1.1 with device and host support Low-power sleep and dormant modes Drag-and-drop programming using mass storage over USB 26 × multi-function GPIO pins 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels Accurate clock and timer on-chip Temperature sensor Accelerated floating-point libraries on-chip 8 × Programmable I/O (PIO) state machines for custom peripheral support Support C/C++，MicroPython: Comprehensive SDK, development resources, tutorials to help you easily get started Compatible with most of the Raspberry Pi Pico add-on modules Development Resources/User Manual:bit.ly/WaveshareRP2040PlusBoard Package Content RP2040-Plus with pre-soldered header x1
