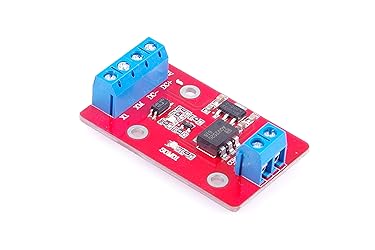

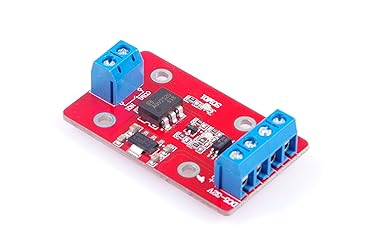

LM YN 1-Channel Solid State Relay Module High-low Level Trigger 3A Optocoupler Isolation
Detalles del producto
Disponibilidad:
En stock
En stock
Peso con empaque:
0.15 kg
0.15 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto
- LM YN 1-Channel Solid State Relay Module https://1drv.ms/b/c/4a0865b22350d05c/IQBc0FAjsmUIIIBK9QAAAAAAASvlgUWpgjYBzQff_y2CusU?e=385Vci Feature: 1, DC 5-32V wide voltage power supply, with anti-reverse power supply capacity; 2, the output rated load: AC / DC 0-50V / 2A; maximum load: AC / DC 0-60V / 3A (within 100ms); 3, the output port is normally open type of switch contacts, the contact is not charged node, the current direction without requirements; 4, the input control high and low selectable; built-in current limiting resistor, you can directly use the power of the positive or negative control, you can also use the microcontroller I / O port control; 5, the module anti-interference ability, stable performance; trigger current minimum 0.1mA; 6, with power indicator (red) and each way relay status indicator (blue) 7, the use of blue terminals; 8, module size: 5.0cm * 3.0m * 1.0cm (L * W * H) Precautions: This module can be used directly for signal or resistive load control; If you are using control for inductive loads (eg small motors, solenoid valves, etc.), keep more than 3 times the remaining amount and add freewheeling diodes at both ends of the inductive load. Module control : 1. DC+ : Positive DC power supply; 2, DC-: DC power supply negative; (DC5-32V). 3, XM: Trigger side COM port, can choose high level or low level to trigger through this interface. 4. X1: trigger terminal, can choose high level or low level trigger, trigger current only needs 0.1mA. Low-level trigger: XM connected to positive, X1 input 0-2V; High-level trigger: XM connected to negative , X1 input 3-32V; Relay output: 1, NO1: relay normally open interface; 2, C0M1: relay common interface; Package Included: 1*1-Channel Solid State Relay Module If you for any reason are not happy with any product supplied , please do not hesitate to contact us and we will do our best to solve your problem .
AR$37.779
55% OFF
AR$17.171
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
AR$37.779
55% OFF
AR$17.171
Pagá fácil y rápido con Mercado Pago o MODO
Llega en 8 a 12 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Conoce más detalles
LM YN 1-Channel Solid State Relay Module, optional positive or negative signal trigger, only need 0.1mA trigger current ,can drive the maximum control capacity of 3A solid state relay pull. The module uses high-quality components, red and blue signal indicator, industrial grade double-sided PCB board, stable performance. LM YN 1-Channel Solid State Relay Module with solid-state relay output resistance is very small features, can replace the mechanical relay contacts, but also has a small control current, fast action time, long working life and other characteristics, can be widely used in a variety of power Or signal control cases. DC 5-32V wide voltage power supply, with power supply anti-reverse ability; Output Rated load: AC / DC 0-50V / 2A; Maximum load: AC / DC 0-60V / 3A (within 100ms); Please download the user manual from the "User Manual" link on this page or contact us. Module size: 50x30x10mm(LWH), hole diameter 3mm, hole center distance 25x20mm(LW).
