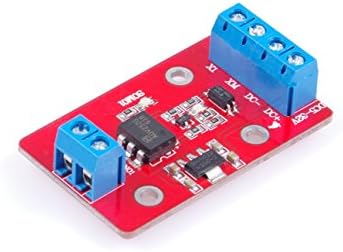

1-Channel Solid State Relay Module High-low Level Trigger 3A Optocoupler Isolation
Disponibilidad:
En stock
En stock
Peso con empaque:
0.33 kg
0.33 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- LM YN 1-Channel Solid State Relay Module, optional positive or negative signal trigger, only need 0.1mA trigger current ,can drive the maximum control capacity of 3A solid state relay pull.
- The module uses high-quality components, red and blue signal indicator, industrial grade double-sided PCB board, stable performance.
- LM YN 1-Channel Solid State Relay Module with solid-state relay output resistance is very small features, can replace the mechanical relay contacts, but also has a small control current, fast action time, long working life and other characteristics, can be widely used in a variety of power Or signal control cases.
- DC 5-32V wide voltage power supply, with power supply anti-reverse ability;
- Output Rated load: AC / DC 0-50V / 2A; Maximum load: AC / DC 0-60V / 3A (within 100ms);
- Please download the user manual from the "User Manual" link on this page or contact us.
- Module size: 50x30x10mm(LWH), hole diameter 3mm, hole center distance 25x20mm(LW).
- User Manual https://1drv.ms/b/s!AlzQUCOyZQhKgXU0PzDptISGtyfu?e=Ak6lUE
AR$27,268
31% OFF
AR$18,801
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
AR$27,268
31% OFF
AR$18,801
Pagá fácil y rápido con Mercado Pago o MODO
Llega en 8 a 12 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
Tarjetas de Crédito y Débito
Visa
Mastercard
American Express
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
Paypal
Pagos a través de MODO
Compra procesada en pesos desde la App de tu banco.
PayPal
Conoce más detalles
Feature: 1, DC 5-32V wide voltage power supply, with anti-reverse power supply capacity; 2, the output rated load: AC / DC 0-50V / 2A; maximum load: AC / DC 0-60V / 3A (within 100ms); 3, the output port is normally open type of switch contacts, the contact is not charged node, the current direction without requirements; 4, the input control high and low selectable; built-in current limiting resistor, you can directly use the power of the positive or negative control, you can also use the microcontroller I / O port control; 5, the module anti-interference ability, stable performance; trigger current minimum 0.1mA; 6, with power indicator (red) and each way relay status indicator (blue) 7, the use of blue terminals; 8, module size: 5.0cm * 3.0m * 1.0cm (L * W * H) Precautions: This module can be used directly for signal or resistive load control; If you are using control for inductive loads (eg small motors, solenoid valves, etc.), keep more than 3 times the remaining amount and add freewheeling diodes at both ends of the inductive load. Module control : 1. DC+ : Positive DC power supply; 2, DC-: DC power supply negative; (DC5-32V). 3, XM: Trigger side COM port, can choose high level or low level to trigger through this interface. 4. X1: trigger terminal, can choose high level or low level trigger, trigger current only needs 0.1mA. Low-level trigger: XM connected to positive, X1 input 0-2V; High-level trigger: XM connected to negative , X1 input 3-32V; Relay output: 1, NO1: relay normally open interface; 2, C0M1: relay common interface; Package Included: 1*1-Channel Solid State Relay Module If you for any reason are not happy with any product supplied , please do not hesitate to contact us and we will do our best to solve your problem .
