SKU/Artículo: AMZ-B01FCWEYEI

Electronics-Salon

Electronics-Salon DIN Rail Mount 10 Position Power Distribution Fuse Module Board, for AC/DC 5~32V

Detalles del producto

Disponibilidad:
En stock

Peso con empaque:
0.25 kg

Devolución:
Sí

Condición
Nuevo

Producto de:
Amazon

Viaja desde
USA

Sobre este producto

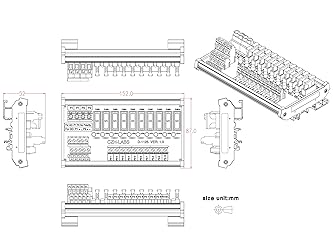

DIN Rail Mount Power Distribution Fuse Module Board. Specification: Work voltage: AC or DC 5~32V, total current rating 40Amp. PCB Dimensions: 150mm x 72.5mm x 29mm (W x L x H). Module Dimensions: 153mm x 87mm x 53mm (W x L x H). Input terminals: pitch - 7.62mm/0.3", current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. P1 output terminals: pitch - 5.08mm/0.2", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw. P2-1 to P2-10 output terminals: pitch - 7.5mm/0.295", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw. Fuse holders for Medium Blade ATO/ATC Fuse, factory-installed fuses 5Amp. with fuse fail indication function FR-4 fiber glass PCB, dual copper layers. fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.

AR$158.732

55% OFF

AR$72.153

AR$158.732

55% OFF

AR$72.153

Llega en 8 a 12 días hábiles

con envío

Tienes garantía de entrega

Medios de pago

Cantidad

Este producto viaja de USA

a tus manos en

Medios de pago

Conoce más detalles

DIN Rail Mount Power Distribution Fuse Module Board. Work voltage: AC or DC 5~32V, total current rating 40Amp. PCB Dimensions: 150mm x 72.5mm x 29mm (W x L x H). Module Dimensions: 153mm x 87mm x 53mm (W x L x H). Input terminals: pitch - 7.62mm/0.3", current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. P1 output terminals: pitch - 5.08mm/0.2", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw. P2-1 to P2-10 output terminals: pitch - 7.5mm/0.295", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
