Waveshare

waveshare 1.3inch LCD Display HAT for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W/Zero WH, IPS Screen 240x240 Pixels RGB, 65K Display Color with Embedded Controller Communicating via SPI Interface

318 Calificaciones
1.3inch IPS LCD Display HAT
1.3inch IPS LCD Module
1.3inch OLED Display HAT
1.44inch LCD Display HAT
1.5inch RGB OLED Module
1.8inch LCD Display Module
2.23inch OLED Display HAT
2inch IPS LCD Display Module

Disponibilidad: En stock

Marca: Waveshare

Peso con empaque: 0.355 kg

Producto con devolución

Producto de: Amazon

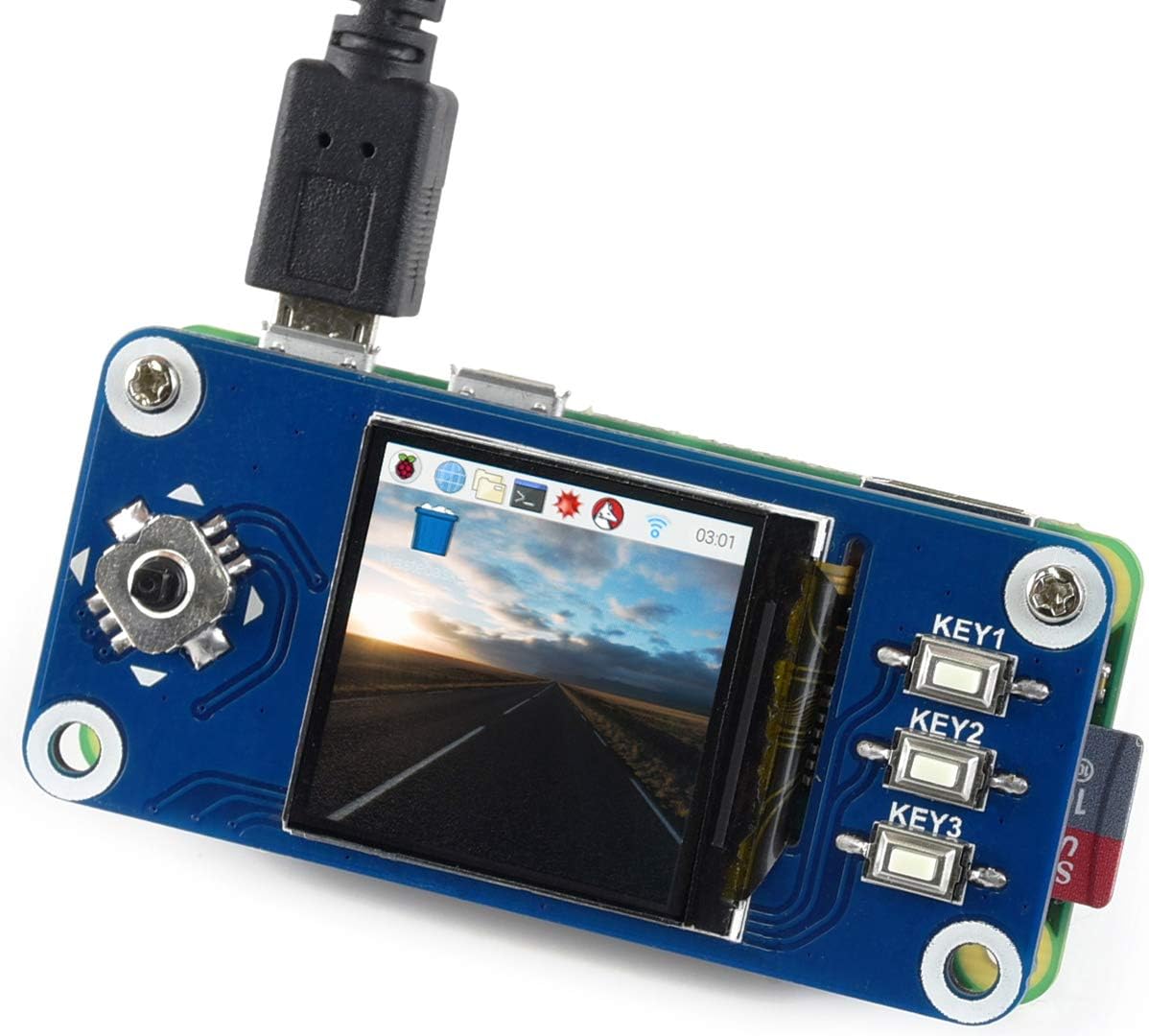

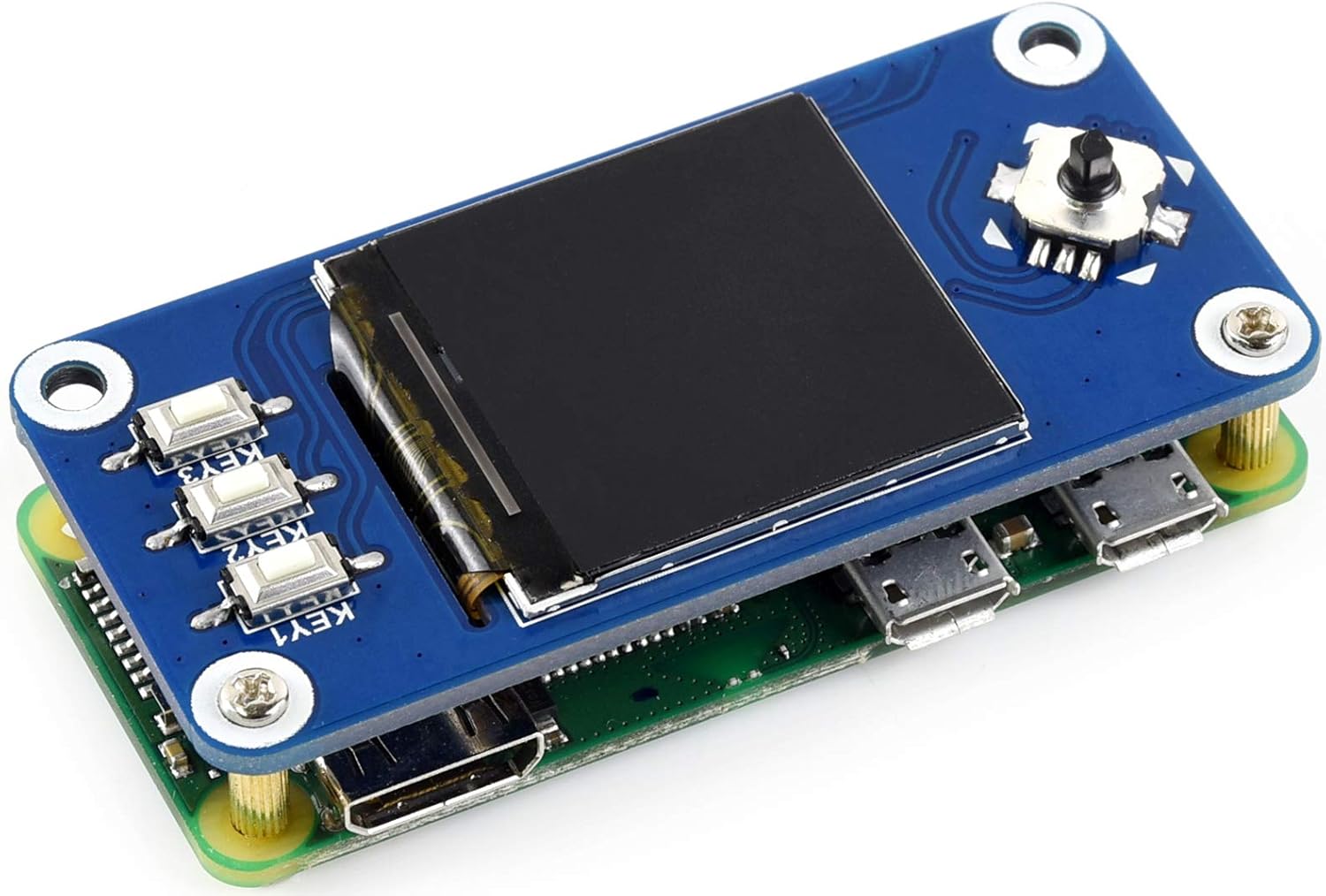

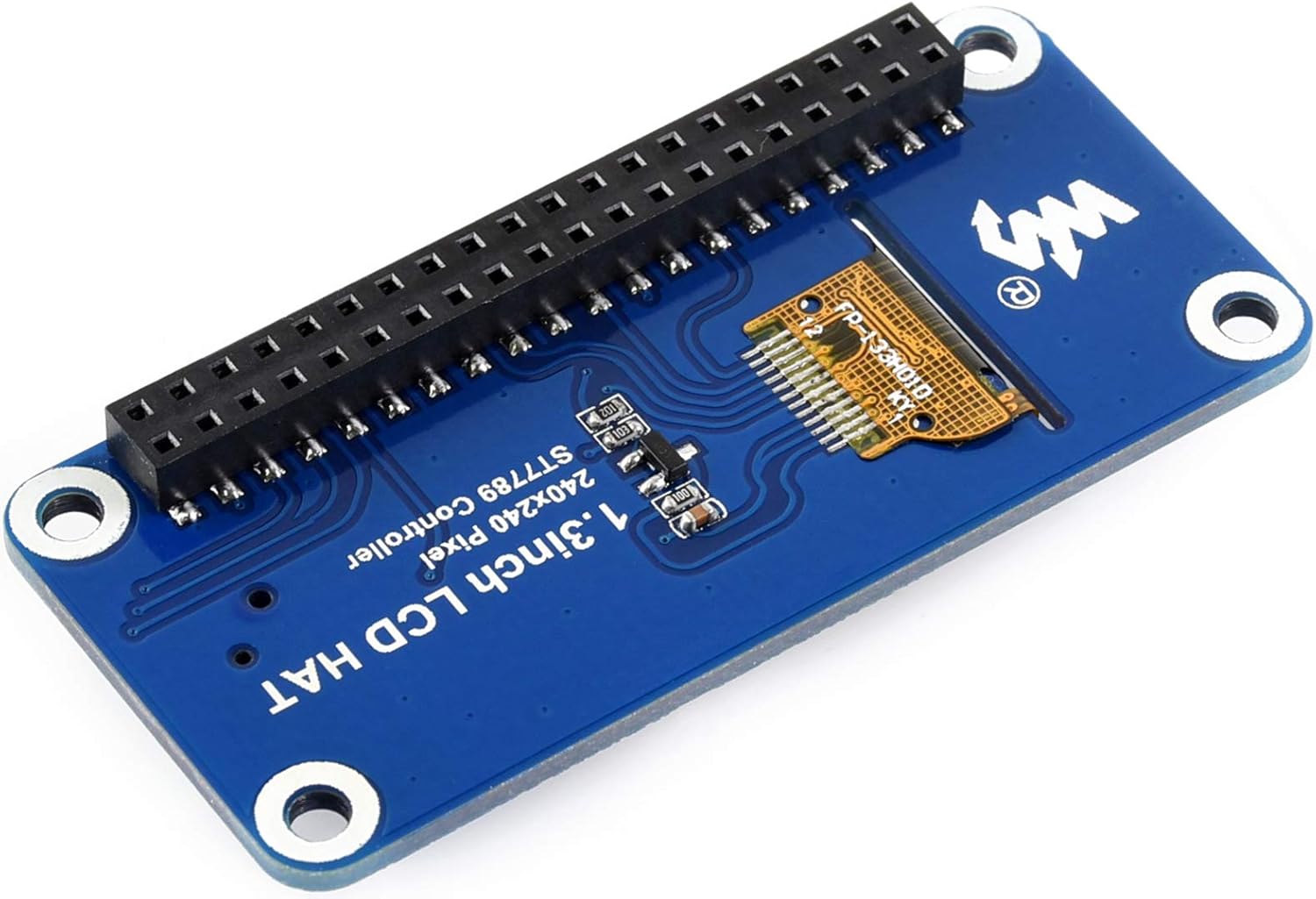

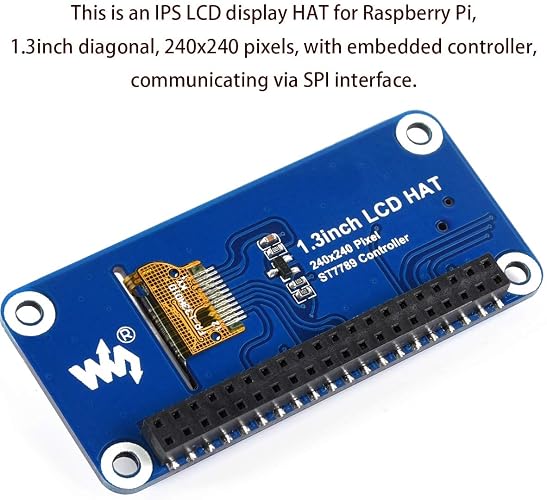

This is an IPS LCD display HAT for Raspberry Pi, 1.3inch diagonal, 240x240 pixels, with embedded controller, communicating via SPI interface. Trying to add a control interface for your Pi? This compact display would be the ideal choice.
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
IPS screen, wide viewing angle, better display
Driver: ST7789. Interface: SPI. Display color: RGB, 65K color. Resolution: 240x240. Backlight: LED. Operating voltage: 3.3V.
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32).

Ver más

SKU: B07VJ8G6SX

Ver Calificaciones

Precio: U$S 24.47 $ 1.034

Ahorras: U$S 8.16 (33%) $ 345 (33%)

U$S 16.31

$ 689

Este producto tiene Garantía de Entrega

Agrega el producto al carrito para conocer los costos de envío
Recibí este producto de 5 a 11 días hábiles seleccionando envío
Este producto viaja > USA > Tus Manos

Más detalles del producto

Overview This is an IPS LCD display HAT for Raspberry Pi, 1.3inch diagonal, 240x240 pixels, with embedded controller, communicating via SPI interface. Trying to add a control interface for your Pi? This compact display would be the ideal choice. Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards IPS screen, wide viewing angle, better display High definition in small size 1x joystick, 3x pushbuttons, handy and useful Comes with development resources and manual (examples for Raspberry Pi) Specifications Operating voltage: 3.3V Interface: SPI LCD type: IPS Controller: ST7789VM Resolution: 240(H)RGB x 240(V) Display size: 23.4(H)x 23.4(V)mm Pixel size: 0.0975(H)x 0.0975(V)mm Dimension: 65 x 30.2(mm) User Manual/How to use: //bit.ly/3gcUJWw LCD and the controller The ST7789VW is a single-chip controller/driver for 262K-color, graphic type TFT-LCD. It consists of 240 source line and 320 gate line driving circuits. The resolution of this LCD is 240 (H) RGB x 240(V), it supports horizontal mode and vertical mode, and it doesn't use all the RAM of the controller. This LCD accepts 8-bits/9-bits/16-bits/18-bits parallel interface, that are RGB444, RGB565, RGB666. The color format used in demo codes is RGB565. This LCD use a 4-line SPI interface for reducing GPIO and fast speed.LCD. Package Content 1.3inch LCD HAT x1 RPi screws pack (2pcs) x1
