Artículo: AMZ-B0FQJ84SYD

CQRobot

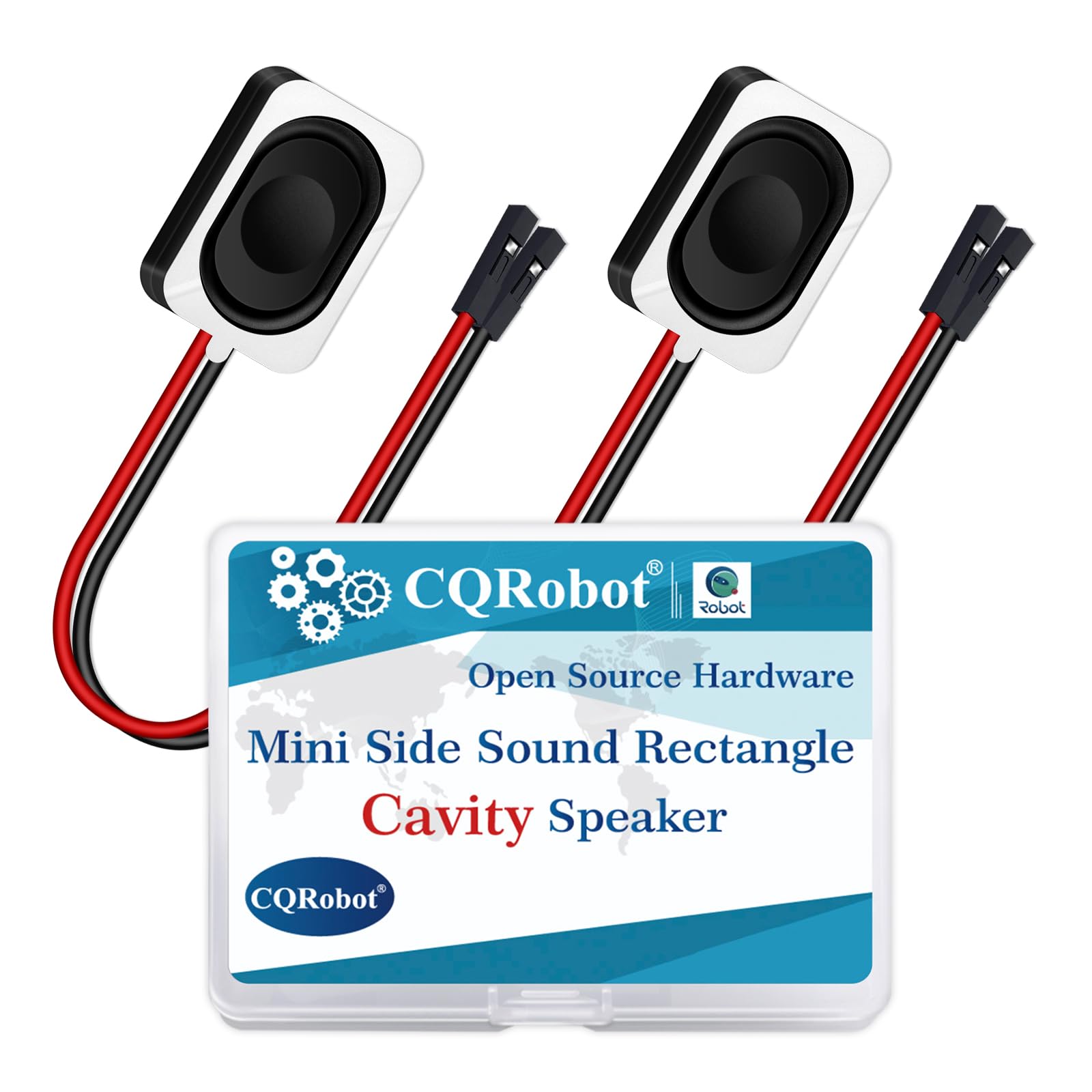

CQRobot 2 Pack 4 Ohm 3 Watt Mini Speaker 28 * 31mm with 15cm for Dupont 2.54mm Connector Cable Compatible with Arduino, for Small Electronics Projects.

Detalles del producto

Disponibilidad
En stock

Peso con empaque
0.20 kg

Devolución
Sí

Condición
Nuevo

Producto de
Amazon

Viaja desde
USA

Sobre este producto

CQRobot designed this small passive speaker specifically for makers and electronics enthusiasts. It uses a for DuPont 2.54mm standard interface, has a 4-ohm impedance, and a rated power of 3 watts. It delivers clear, rich sound with excellent fidelity and effectively suppresses distortion, making it suitable for building various audio systems and easily integrated into a variety of audio projects.SpecificationsDimensions: 28mm * 31mm * 15mm Impedance: 4 ohms ±15% @1.0kHz Rated Input Power: 3W Maximum Input Power: 5W Sensitivity: 89 ±3dB (at 0.1W/0.1m, averaged at 0.8, 1.0, 1.2, and 1.5kHz) Frequency Range: 200-3000Hz Distortion: Maximum 5% at rated input voltage of 0.89V (1.0kHz/rated power) Lowest Resonant Frequency (F0): 500Hz ±15% Operating Temperature: -20°C to +50°C Storage Temperature: -25°C to +60°C Polarity: When positive DC current is applied to the + or mark on the terminals, the diaphragm should move forward. Connector: for DuPont 2.54mm Connector cable length: 15 cm Magnet material: NdFeB Voice coil material: CopperShipping List2 * Passive speakers 28*31mm, 3 watts, 4 ohms (for DuPont 2.54 connector)

$26,16

49% OFF

$13,42

$26,16

49% OFF

$13,42

Envío gratis

Llega en 12 a 16 días hábiles

Tienes garantia de entrega

Medios de pago

Cantidad

Este producto viaja de USA

a tus manos en

Medios de pago

Conoce más detalles

Pre-installed with a for DuPont2.54 connector cable, it easily connects to compatible motherboards without soldering, greatly simplifying DIY assembly or repair Rated at 3W and 4 ohm impedance, it features an internal magnetic design and a non-paper diaphragm, ensuring clear and stable sound, making it ideal for 3.3V/5V low-voltage circuits Measuring a standard 28*31*15mm (1.1*1.2*0.59-inch) size, the full-range cavity design and compact rectangular form factor make it easy to install in various electronic devices and prototyping projects Perfectly compatible with Arduino, Raspberry Pi and other development boards, it's an ideal replacement for speakers in electronic toys, robots, game consoles, and advertising projects Includes two high-quality speakers, packaged in a custom protective box for safe shipping. A two-pack provides backup options or allows for multiple projects simultaneously, making it a practical choice for electronics enthusiasts and repair technicians
