ESP32-P4-Module High-Performance Development Board, Based On ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 and Bluetooth 5/BLE, with 10.1inch DSI LCD and Camera @XYGStudy (ESP32-P4-Module-DEV-KIT-C)
Model:
ESP32-P4-Module-DEV-KIT-C
En stock
0.26 kg
No
Nuevo
Amazon
USA

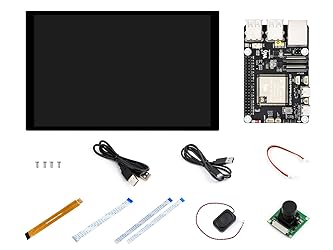

- Overview ESP32-P4-Module High-performance Development Board, Based On ESP32-P4 And ESP32-C6, Supports Wi-Fi 6 And Bluetooth 5/BLE Package Contains : ESP32-P4-Module-DEV-KIT x1 10.1-DSI-TOUCH-A x1 RPi Camera (B) x1 8Ω 2W speaker x1 FFC 15PIN cable x1 MIPI-DSI-Cable-12cm x1 FFC 22PIN cable x2 2PIN cable x1 USB Type-A dual-plug cable x1 USB Type-A to Type-C cable x1 SH1.0 4PIN cable ~150mm x2 Screws pack x1 For more resources you may need, pls contact me via Amazon message, i will send you then via attachment.
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
Conoce más detalles
Part Number: ESP32-P4-Module-DEV-KIT-C ESP32-P4-Module High-performance Development Board, Based On ESP32-P4 And ESP32-C6, Supports Wi-Fi 6 And Bluetooth 5/BLE This product is a multimedia development board based on ESP32-P4 with integrated ESP32-C6, supports Wi-Fi 6 and Bluetooth 5 wireless connection. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, onboard RJ45 Ethernet port with reserved PoE function header, and onboard 40PIN GPIO header which is compatible with some Raspberry Pi HATs, enabling a wider range of application adaptability. The ESP32-P4 adopts a 400MHz dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI/DSI, H.264 encoder, and other peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development.
