Artículo: AMZ-B0DY4VBMZB
UeeKKoo
Mini Base Board Compatible with Raspberry Pi Compute Module 5 Lite/eMMC Series, CM5 Base Board with Color-Coded 40PIN GPIO Header/PCIe/MIPI/HDMI/USB 3.2/USB 2.0 FFC/Gigabit Ethernet Interface,etc.
Detalles del producto
Disponibilidad
En stock
En stock
Peso con empaque
0.20 kg
0.20 kg
Devolución
No
No
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto

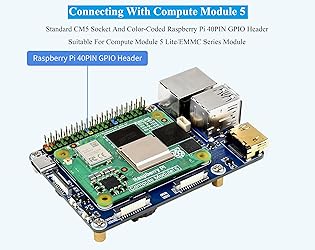

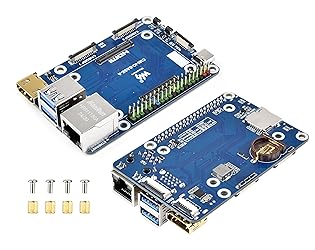

- Features 1. This is Mini Base Board (A) with standard CM5 socket and color-coded RPi 40PIN GPIO header, compatible with Compute Module 5 Lite/eMMC Series. Suitable for evaluating the Raspberry Pi CM5 or being integrated into end products 2. Onboard multiple connectors, more convenient to use. Onboard muitiple interface, including 16PIN PCIe/ MIPI/HDMI/USB 3.2/USB 2.0 FFC/ RJ45 Gigabit Ethernet Interface, etc. 3. GPIO Header and PCIe Connector: Equipped with Color-Coded 40PIN GPIO header, for connecting various HAT / HAT+ modules. And it equips with 16PIN PCIe (PCIe Gen2/3 x1) for connecting various PCIe expansion boards 4. 4K Video Output and Dual HDMI Port: One is HDMI0 port, supports 4K output. The other is HDMI1 FFC connector, supports 4K output too, which can be connected through an adapter 5. Rich USB Interfaces: Onboard with Dual USB 3.2 Gen1 high-speed ports, supports 5Gbps synchronous operation. And onboard with USB 2.0 ports via a 6-pin FFC connector 6. Dual MIPI Interfaces and Fan Header: Onboard with Dual MIPI interfaces for connecting DSI displays and CSI cameras 7. Fan Header and Power Input: 5V, 4PIN JST-SH PWM connector. Power Input is DC 5V 5A Comes with Online Development Resources /User Manual, please follow there: bit.ly/43btnqj Package Content CM5-IO-BASE-A x1 Screws pack x1
$53,27
31% OFF
$36,74
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$53,27
31% OFF
$36,74
3 meses de gracia en diferidos y hasta 6 meses sin intereses con Pacificard
Envío gratis
Llega en 16 a 26 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Conoce más detalles
This is Mini Base Board (A) with standard CM5 socket and color-coded RPi 40PIN GPIO header, compatible with Compute Module 5 Lite/eMMC Series. Suitable for evaluating the Raspberry Pi CM5 or being integrated into end products Onboard multiple connectors, more convenient to use. Including 16PIN PCIe/ MIPI/HDMI/USB 3.2/USB 2.0 FFC/ RJ45 Gigabit Ethernet Interface, etc. GPIO Header and PCIe Connector: Equipped with Color-Coded 40PIN GPIO header, for connecting various HAT / HAT+ modules. And it equips with 16PIN PCIe (PCIe Gen2/3 x1) for connecting various PCIe expansion boards 4K Video Output and Dual HDMI Port: One is HDMI0 port, supports 4K output. The other is HDMI1 FFC connector, supports 4K output too, which can be connected through an adapter Rich USB Interfaces: Onboard with Dual USB 3.2 Gen1 high-speed ports, supports 5Gbps synchronous operation. And onboard with USB 2.0 ports via a 6-pin FFC connector Dual MIPI Interfaces and Fan Header: Onboard with Dual MIPI interfaces for connecting DSI displays and CSI cameras. Fan Header and Power Input: 5V, 4PIN JST-SH PWM connector. Power Input is DC 5V 5A Comes with Online Development Resources / User Manual / Precautions, please follow there: bit.ly/43btnqj
