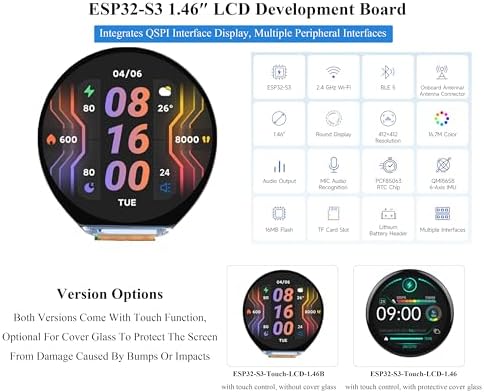

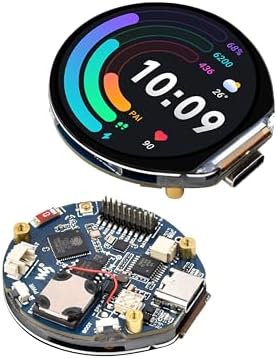

ESP32-S3 1.46inch Round Touch Display Development Board, 412x412 IPS LCD, Onboard Speaker and Microphone/Audio Input and Output, Supports Offline Speech Recognition and AI Speech Interaction
En stock
0.20 kg
No
Nuevo
Amazon
USA

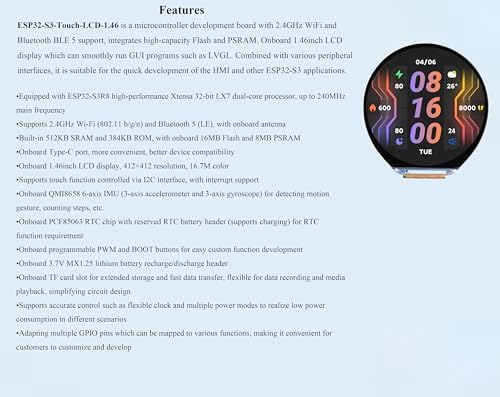

- Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-F--i (802.11 b/g/n) and Blue--tooth 5 (LE), with onboard antenna. Built-in 512KB S RAM and 384KB ROM, with onboard 16MB Flash and 8MB P S RAM.
- Onboard 1.46inch LCD display, IPS Display Panel, 16.7M color, 412×412 resolution, with wide viewing angle. Capacitive touch, Supports capacitive touch function controlled via I2C interface for flexible operation and smooth UI interaction, with interrupt support.
- Supports Offline Speech recognition and AI Speech Interaction. Allows access to online large model platforms to support more AI application scenarios. (such as DeepSeek, ChatGPT, Doubao, etc.) Onboard Audio input and output. Supports high-quality audio processing, providing clear and high-quality audio input and output. Equipped with an offline voice model, enabling device control via setting shortcut commands.
- Onboard Type-C port, more convenient, better device compatibility. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. Onboard PCF85063 RTC chip with reserved RTC battery header (supports charging) for RTC function requirement.
- Onboard programmable PWM and BOOT buttons for easy custom function development. Onboard 3.7V MX1.25 lithium batt-ry recharge/discharge header. Onboard TF card slot for extended storage and fast data transfer, flexible for data recording and media playback, simplifying circuit design.
- Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios. Adapting multiple GPIO pins which can be mapped to various function interfaces, making it convenient for customers to customize and develop.
- Comes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl/784vl
