Artículo: AMZ-B0DPZZF3SJ
Generic
5pcs Sensor Module Output Port Obstacle Avoidance Sensor Digital Output Port for Smart Car Robot
Detalles del producto
Disponibilidad
Sin stock
Sin stock
Peso con empaque
1.24 kg
1.24 kg
Devolución
No
No
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto

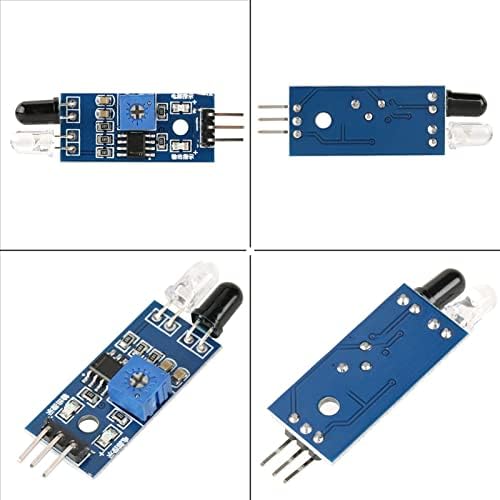

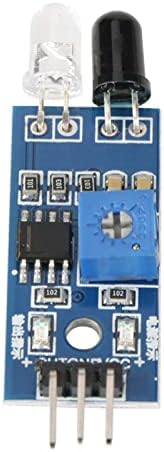

- Description: The sensor module is adaptable to ambient light. It has a pair of infrared transmitting and receiving tube. Transmitting tube sends out a certain frequency IR which will be reflected when detecting obstacles (reflecting surface) and received by receiving tube. After processing with comparator circuit, green light is on and output interface outputs digital (a low voltage level ). Detection distance can be adjusted with the potentiometer, effective distance range 2~60cm, working voltage 3.3V to 5V. Features: Sensor module output port OUT can be directly connected to micro-controller IO port, also can drive a 5V relay directly. Comparator uses the LM393 chips, stable performance. Can use 3 to 5V DC power supply.When power on, the red power indicator light is on. Designed with 3mm screw holes for convenient fixation and easy installation; Each module has already adjusted threshold compare voltage with potentiometer well, so please do not arbitrarily adjust potentiometer. Specifications: Working Voltage: 3.3~5V Detecting Range: 2~30cm Detection Angle: 35° Wiring: VCC-VCC; GND-GND; OUT-IO Size: 4*1.5cm/1.5*0.6in Quantity: 5pcs Weight: 3g(approx.) Module Interface: VCC: External connection of 3.3V-5V voltage(can be directly connected to 5V micro-controller and 3.3V micro-controller) GND: External GND OUT: Digital output port(0 and 1) Package Includes: 5 x Modules
Sin stock
Seleccione otra opción o busque otro producto.
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Conoce más detalles
When module detects obstacles ahead, the green indicator light on the circuit board is on and at the same time the OUT port outputs low level ; detection distance can be adjusted with potentiometer, clockwise to increase detection distance;c It can be widely used for robot obstacle avoidance, obstacle avoidance car, assembly line, black and white line tracking and many other occasions. Active infrared reflection detecting sensor, so the target reflectivity and shape is the key of the detection range.Black color has the minimum detection range, white has the maximum; small objects have short detection range, large objects have long dete The detection range of the sensor can be adjusted with potentiometer, little interference, easy assembly and use. Sensor module output port OUT can be directly connected to micro-controller IO port, also can drive a 5V relay directly.
