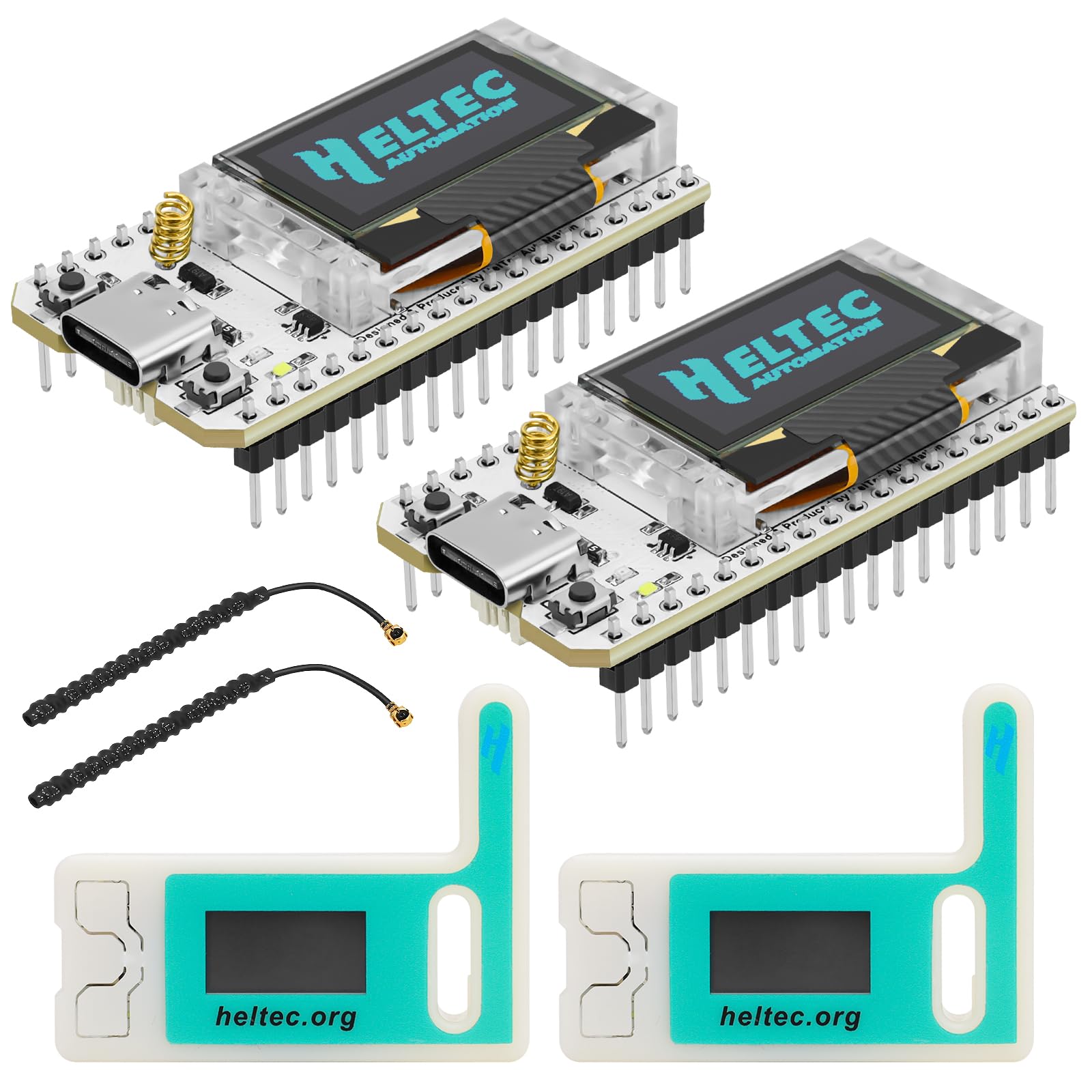

MakerFocus ESP32 LoRa V3 Development Board with 3000mAh Battery, Protective Case, 915MHz Antenna Integrated WiFi Bluetooth SX1262 CP2102 for Meshtastic IoT Arduino
Size:
with Case and 3000mAh Battery
Disponibilidad
En stock
En stock
Peso con empaque
0.20 kg
0.20 kg
Devolución
Sí
Sí
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Sobre este producto
- Support Arduino Development Environment: Support ESP32 + LoRaWAN protocol Arduino library, this is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol
- Easy to Use: With good RF circuit design and low-power design, WiFi LoRa V3 is the best option for smart cities, farms, homes, industrial control, house security, wireless meter reading and IoT developers
- Highly Integrated: Integrated WiFi, LoRa, Bluetooth three network connections, onboard WiFi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use. Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing
- Power Supply: Onboard SH1.25 battery interface, integrated lithium battery management system; you can also use the Type-C interface to power the development board
- OLED Display: Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power and other information
- Note: Not all LoRa antennas fit the case. If the antenna protective shell is too long and cannot be installed into the shell, please shorten the antennas protective shell and be careful not to damage the internal copper tube
$89,42
49% OFF
$45,86
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$89,42
49% OFF
$45,86
Difiere a 3 y 6 meses sin intereses con Diners, Discover y Titanium
Envío gratis
Llega en 5 a 12 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que sueñas y lo recibas del mundo a tu puerta.
Tarjetas de Débito y Crédito
Visa
Mastercard
American Express
Dinners
Discover
Alias
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
PayPal
Conoce más detalles
About WiFi LoRa 32: WiFi LoRa 32 (V3) is a classic IoT development board. It is the best option for smart cities, farms, homes, industrial control, house security, wireless meter reading and IoT developers Features: 1. Microprocessor: ESP32-S3FN8 (Frequency up to 240 MHz) 2. SX1262 LoRa node chip 3. With good RF circuit design and low-power design 4. Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding and other protection measures 5. Onboard SH1.25-2 battery interface, integrated lithium battery management system 6. Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use 7. Onboard 0.96-inch 128*64 dot matrix OLED display can be used to display debugging information, battery power and other information 8. Integrated CP2102 USB to serial port chip, convenient for program downloading and debugging information printing 9. Support the Arduino development environment 10. We provide ESP32 + LoRaWAN protocol Arduino library, this is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol Parameter: Max. TX Power: 21 ± 1 dBm Max. Receiving sensitivity: -139 dBm Wi-Fi: 802.11 b/g/n, up to 150Mbps Bluetooth: Bluetooth LE, Bluetooth 5, Bluetooth mesh Hardware Resource: 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc. Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash Interface: Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(IPEX1.0); 2*18*2.54 Header PinBattery: 3.7V lithium battery power supply and charging Operating temperature: -20 ~ 70 ℃ Dimensions: 50.2 * 25.5* 10.2 mm ----------------------------------------------------------------------- About 3000mAh Battery with Micro JST 1.25 Plug: Specification: Standard Voltage: 3.7V Capacity: 3000mAh Weight : 194g (4PCS) , 48.5g/1unit Dimensions(±2mm): 65 * 36 * 10 mm / 2.56 * 1.42 * 0.39inch(L*W*H) Discharge Rate: 1C Working Current: 1.5A The maximum discharging current: 3C Overcurrent Protection: 1.8-2.1A Type of Connector: Micro JST 1.25 Standard Charging Method: Charging this battery to 4.25V at 0.2C constant current, then charge the battery at a constant voltage of 4.2V till it's charging current≤ 0.05C ----------------------------------------------------------------------- Package Content: 1 * WiFi LoRa 32(V3) 2 * Pin Headers 2 * Antenna 1 * Power Cord 1 * 3000mAh Battery with Micro JST 1.25 Plug 1 * Protective Case
