MakerFocus Wireless Tracker Supports GPS Galileo Multi-System Joint Positioning ESP32-S3 WiFi Bluetooth SX1262 UC6580 with 3000mAh Battery, 915MHz LoRa Antenna, 0.96-inch LCD Display for Meshtastic

Size:

65.48 × 28.06 × 13.52 mm - with 3000mAh Battery

65.48 × 28.06 × 13.52 mm - Wireless Tracker

65.48 × 28.06 × 13.52 mm - with 3000mAh Battery

Detalles del producto

Disponibilidad
En stock

Peso con empaque
0.20 kg

Devolución
Sí

Condición
Nuevo

Producto de
Amazon

Viaja desde
USA

Sobre este producto

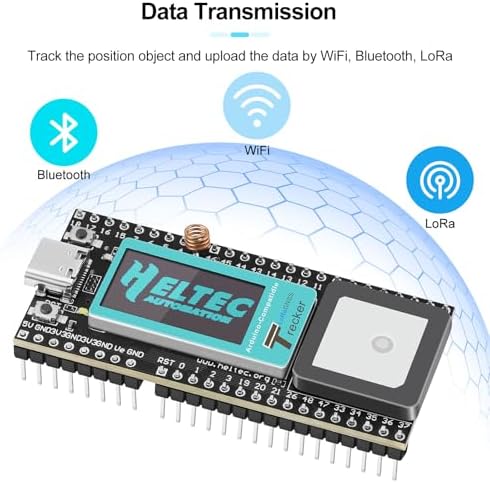

About Wireless Tracker: Wireless Tracker is a development kit based on ESP32-S3FN8. Integrates SX1262 LoRa chipset and UC6580 GNSS chipset to provide fast GNSS solution for IoT. It can track any object and upload the data wirelessly by WiFi, Bluetooth, LoRa Wireless Tracker supports L1 + L5/L2, and GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning. It is perfectly compatible with Arduino, can be widely used in development such as bicycle sharing services, tracking pets or livestock, locating vehicles, tracking children, etc Feature: 1. ESP32-S3FN8+SX1262+UC6580 chipset, supports WiFi, LoRa, Bluetooth, GNSS 2. Low power design of dual frequency multi system based on 22nm technology 3. Support L1 + L5/L2 and GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning 4. Support Ar duino development environment 5. Onboard WiFi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa and GNSS use 6. Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures 7. Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching) 8. Onboard 0.96-inch 160*80 dot matrix LCD display, which can be used to display debugging information, battery power, and other information Parameter: Master Chip: ESP32-S3FN8 LoRa Chipset: SX1262 GNSS Chipset: UC6580 Frequency: 863-923MHz Max TX Power: 21 ± 1dBm Receiving Sensitivity: -139dBm WiFi: 802.11 b/g/n, up to 150Mbps Bluetooth: Bluetooth LE: Bluetooth 5, Bluetooth mesh Interface: Type-C USB; SH1.25 lithium battery interface; 2 * IPEX (U.FL) interface Battery: 3.7V lithium battery power supply Operating Temperature: -20-70℃ Dimension: 65.48 * 28.06* 13.52mm ----------------------------------------------------------------------- About 3000mAh Battery with Micro JST 1.25 Plug: Specification: Standard Voltage: 3.7V Capacity: 3000mAh Weight : 194g (4PCS) , 48.5g/1unit Dimensions(±2mm): 65 * 36 * 10 mm / 2.56 * 1.42 * 0.39inch(L*W*H) Discharge Rate: 1C Working Current: 1.5A The maximum discharging current: 3C Overcurrent Protection: 1.8-2.1A Type of Connector: Micro JST 1.25 Standard Charging Method: Charging this battery to 4.25V at 0.2C constant current, then charge the battery at a constant voltage of 4.2V till it's charging current≤ 0.05C ----------------------------------------------------------------------- Package Content: 1 * Wireless Tracker 4 * Pin Headers 1 * Antenna 2 * Power Cord 1 * 3000mAh Battery with Micro JST 1.25 Plug

$87,54

44% OFF

$48,64

$87,54

44% OFF

$48,64

Envío gratis

Llega en 5 a 12 días hábiles

Con envío

Tienes garantia de entrega

Medios de pago

Cantidad

Este producto viaja de USA

a tus manos en

Medios de pago

Conoce más detalles

Main Function: Based on ESP32-S3FN8, integrates UC6580 and SX1262 to provide fast GNSS solution for IoT, Wireless Tracker supports L1 + L5/L2 and GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning, can track any object and upload the data by WiFi, Bluetooth, LoRa Perfect Design: Low power design of dual frequency multi system based on 22nm technology. Onboard WiFi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa and GNSS use. Low power consumption, multi data transmission methods and interfaces to facilitate your development and application Applications: Perfectly compatible with Arduino, GPS module can be widely used in development such as bicycle sharing services, tracking pets or livestock, locating vehicles, tracking children, etc Power Supply: Onboard SH1.25 battery interface, you can power ESP32 development board with battery whose plug is Micro JST1.25. You can use Type-C interface to power it as well. The power interface provides complete safety protection, Protect your dev board from damage LCD Display: Onboard 0.96-inch 160*80 dot matrix LCD display, which can be used to display debugging information, battery power and other information
