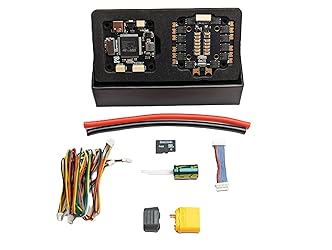

MicoAir H743 Flight Controller Stack with 4in1 50A Bluejay 48K ESC FC&ESC Support Ardupilot/Betaflight/INAV/PX4 for O3 Air Unit FPV

Detalles del producto

Disponibilidad
En stock

Peso con empaque
0.20 kg

Devolución
Sí

Condición
Nuevo

Producto de
Amazon

Viaja desde
USA

Sobre este producto

H743 Flight Controller (FC) + 4-in-1 ESC Combo Built-in Dual IMU and Compass. Supports ArduPilot / PX4 / INAV / Betaflight.Firmware SupportArduPilot: Officially supported starting from v4.6. Firmware can be updated using common ground station tools (e.g., Mission Planner) via USB.PX4: Officially supported starting from v1.15.0.Betaflight: Officially supported starting from v4.5.0.INAV: Officially supported starting from v8.0.0.Tip: If you need older firmware builds or customized builds, please contact us through Amazon messaging and we can provide the correct files/instructions for your setup.User Manuals & Tutorials We provide detailed manuals and setup tutorials. Due to Amazon policy, external links are not shown here. If you need the latest documents, please message us via Amazon and we will send the correct guide for your firmware (ArduPilot / PX4 / INAV / Betaflight). Specifications (Flight Controller)MCU: STM32H743VIT6, 480MHz, 2MB FlashIMU: BMI088 / BMI270Barometer: DPS310Compass: IST8310OSD: AT7456EMicroSD Card Slot7x UART10x PWM1x CAN1x I2C1x SWD2x ADC (VBAT, Current)USB Type-CBEC 5V 3A output (FC / RX / GPS / Optical Flow / peripherals)BEC 9V 3A output (VTX / Camera)UART Mapping (ArduPilot)SERIAL0 → USBSERIAL1 → UART1 (MAVLink2, DMA-enabled)SERIAL2 → UART2 (VTX-HD, DMA-enabled)SERIAL3 → UART3 (GPS, DMA-enabled)SERIAL4 → UART4 (MAVLink2, DMA-enabled)SERIAL5 → UART6 (RCIN, DMA-enabled)SERIAL6 → UART7 (ESC Telemetry, DMA-enabled)SERIAL7 → UART8 (DMA-enabled)UART Mapping (PX4)TEL1 → UART1TEL2 → UART2GPS1 → UART3TEL3 → UART4RC → UART6ESC → UART7TEL4 → UART8RC Input (ArduPilot) Default RC input is configured on UART6. The SBUS pin is inverted and connected to RX6. Non-SBUS single-wire serial inputs can be tied directly to RX6 if the SBUS pin is left unconnected. You may also use other UART ports (e.g., UART2 / UART4 / UART8) for RC input by setting the serial protocol parameters in ArduPilot. OSD Support (ArduPilot) Supports OSD via OSD_TYPE 1 (MAX7456 driver) and OSD_TYPE 5 (MSP_DISPLAYPORT). VTX Support The SH1.0-6P connector supports O3 Air Unit / HD VTX connection. Protocol defaults to DisplayPort. Note: Pin 1 is 9V output — do not connect it to a 5V-only peripheral. PWM OutputThe FC supports up to 10 PWM outputs:Channels 1-10 support DShot.Channels 1-8 support bi-directional DShot.Note: PX4 & INAV do not currently support BDShot on this target.PWM outputs are grouped (each group must use the same protocol):Group 1: 1, 2, 3, 4Group 2: 5, 6Group 3: 7, 8, 9, 10Battery Monitoring The board includes an internal voltage sensor and supports an external current sensor input via the ESC connector. Voltage sensing supports up to 6S LiPo. Default ArduPilot battery parameters: BATT_VOLT_PIN: 10BATT_CURR_PIN: 11BATT_VOLT_MULT: 21.2BATT_CURR_SCALE: 40.2Compass Built-in compass sensor: IST8310. External compass can also be connected via I2C (SDA/SCL). PhysicalMounting: 30.5 x 30.5mm, Φ4mmDimensions: 36 x 36 x 8 mmWeight: 9g3D model file: available upon request via Amazon messaging (external links removed due to Amazon policy).Specifications (4-in-1 ESC)Input Voltage Range: 2-6SMaximum Continuous Current: 50ACurrent Sensor: YesESC Firmware: BlueJay 48KFirmware Version: v0.19.2Control Signal: DShot150 / 300 / 600Supports Bidirectional DShot & Speed FeedbackMounting Holes: • M4: 30.5 x 30.5mm • M3: 20 x 20mmMOSFET: 40V 165A, RDS=1.1mRPackage ListMicoAir H743 Flight Controller (ArduPilot Firmware) × 14G TF Card × 1MicoAir 4-in-1 ESC × 112AWG Wiring × 2ESC Signal Wiring × 1Connecting Wiring × 7Capacitor × 1XT60 Plug × 1Rubber Mat × 8Q: If I encounter issues using this product after purchase, do you provide technical support?A: Yes. We provide professional technical support. Flight controllers involve complex configuration and tuning. Open-source firmware evolves quickly, so occasional issues can happen. If you need help, please contact us through Amazon’s messaging system with details of your setup and the issue. We reply within 24 hours on business days.

$340,57

60% OFF

$136,23

$340,57

60% OFF

$136,23

Envío gratis

Llega en 5 a 12 días hábiles

Con envío

Tienes garantia de entrega

Medios de pago

Cantidad

Este producto viaja de USA

a tus manos en

Medios de pago

Conoce más detalles

Wide Compatibility: Supports all major open-source flight control systems, including Ardupilot, PX4, and Betaflight, with official firmware support. INAV will be officially supported from version 8.0, ensuring your flight control system stays up-to-date with the latest technology. High-Precision Dual IMU Sensors: Equipped with dual IMU and an integrated compass, providing higher-quality IMU data for navigation tasks such as waypoint flying or hovering, significantly improving the accuracy of navigation and positioning in complex environments. O3 FPV Support: Specifically designed compatibility with the O3 Air Unit, supporting HD video transmission and providing a smooth first-person view (FPV) flying experience, meeting professional-grade FPV demands. Rich Expansion Interfaces: Features 7 UARTs, 10 PWM outputs, USB Type-C, and support for CAN and I2C buses, allowing connectivity to a variety of external devices such as onboard computers and optical flow laser sensors, offering extensive expandability. High-Performance MOSFET Devices ESC: The Electronic Speed Controller uses 40V 165A RDS=1.1mR MOSFET devices, which are key to enhancing ESC performance. An RDS(ON) as low as 1.1mR means minimal internal resistance during current flow, reducing energy loss, increasing efficiency, and resulting in lower heat generation and better load capacity. Especially during long periods of high load, this significantly lowers failure rates and extends lifespan. User-Friendly Design and Support: Features an all-connector design to reduce soldering work and improve connection reliability. Additionally, we offer detailed usage tutorials and continuously update settings and optimization guides for different firmware, helping users get started with ease.
