Artículo: AMZ-B0D39W3HSP
UeeKKoo

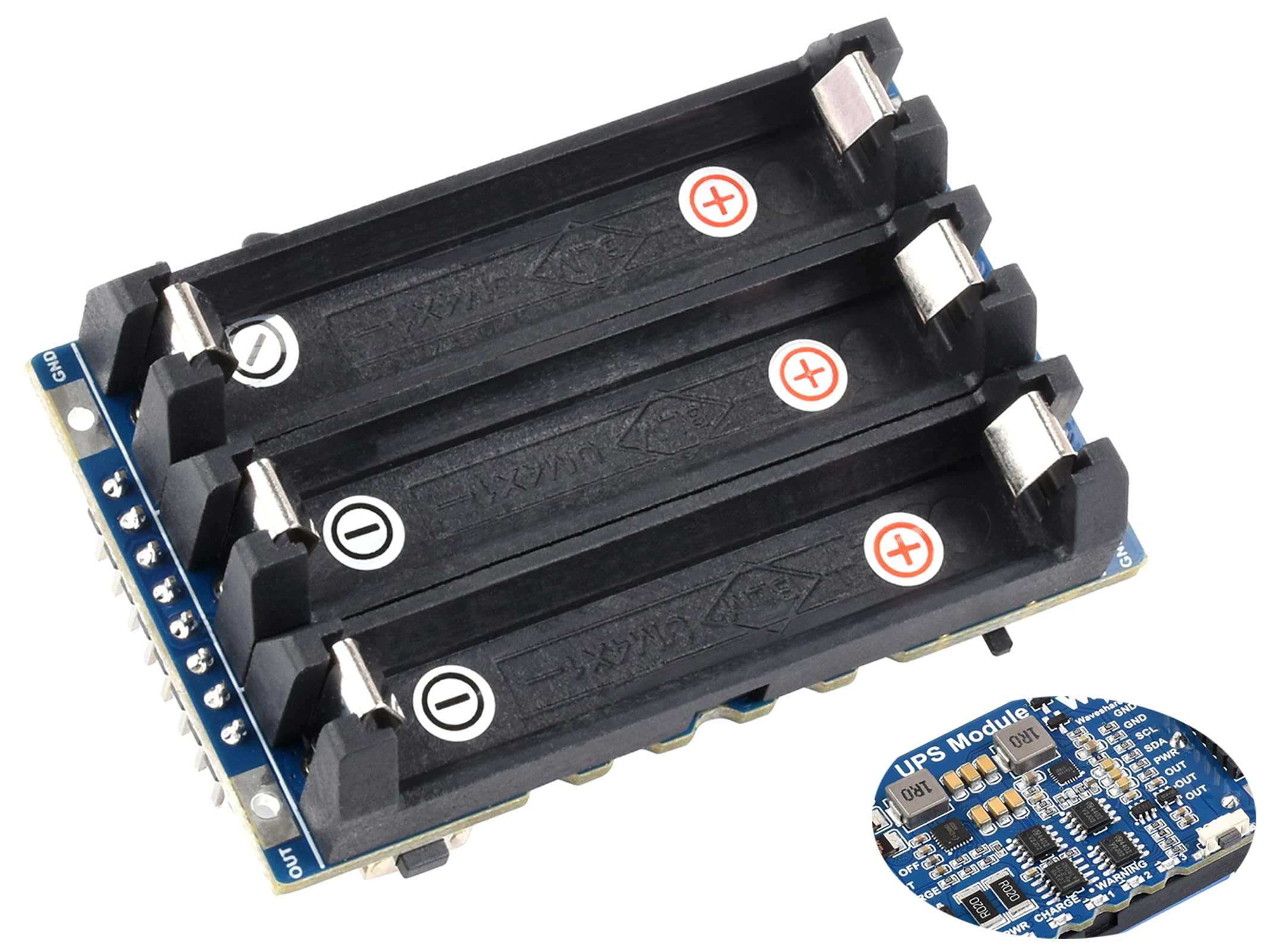

Uninterruptible Power Supply UPS Module (B) for Jetson Nano Developer Kit B01, Support Charge and Power Output at The Same Time 5V Output up to 5A Current,Communicating via I2C Bus Through Pogo Pins
Detalles del producto
Disponibilidad
En stock
En stock
Peso con empaque
0.20 kg
0.20 kg
Devolución
No
No
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto
- UPS Power Module (B) for Jetson Nano Developer Kit B01, 5V Uninterruptible Power Supply, 5A high current, pogo pins connector Features 1.Uninterruptible Power Supply UPS Power Module (B) is compatible with Jetson Nano Developer Kit B01 2. It is able to charge the batteries and provide power output at the same time from external power supply. Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble 3. I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time 4. Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable 5. Onboard 5V regulator, up to 5A (MAX) continuous output current, more sufficient power source for Jetson Nano 6. Pogo Pins Connector, Communicating via I2C bus through pogo pins, no other IO pin required 7. Batteries warning indicators, easy to check if the battery is connected correctly Specifications Output Voltage: 5V Charger: 8.4V 2A Control bus: I2C Supported battery: 18650 Li battery (NOT included) Dimension：100mm × 79mm Mounting hole：2.5mm Current capacity: 4 batteries Package Content UPS Power Module (B) x1 Acrylic protection panel x1 8.4V battery charger x1 Screws pack x1 Note: The 18650 batteries are NOT included Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported Comes with Online Development Resources and Manual,Please send us Amazon message to get it if necessary.
$102,75
55% OFF
$46,70
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$102,75
55% OFF
$46,70
3 meses de gracia en diferidos y hasta 6 meses sin intereses con Pacificard
Envío gratis
Llega en 16 a 26 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Conoce más detalles
Charge and Power Output at the Same Time: Uninterruptible Power Supply UPS Power Module (B) is compatible with Jetson Nano Developer Kit B01. Support Charge and Power Output at the Same Time. 5A high current, pogo pins connector Power Jetson Nano seamlessly from power connection OR the backup batteries Uninterruptible Power: It is able to charge the batteries and provide power output at the same time from external power supply. Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble Pogo Pins Connector: Communicating via I2C bus through pogo pins, no other IO pin required Real time monitoring: Monitoring the batteries voltage, current, power, and remaining capacity via I2C. When the voltage dips too low, it is possible to save files properly and then shutdown the system by software, to avoid any data loss Safe and Stable Circuit Design: Protection circuits for over charge/discharge, over current, short circuit, and reverse along with the equalizing charge feature, more safe and stable
