Artículo: AMZ-B0CNPVY9MD

Waveshare

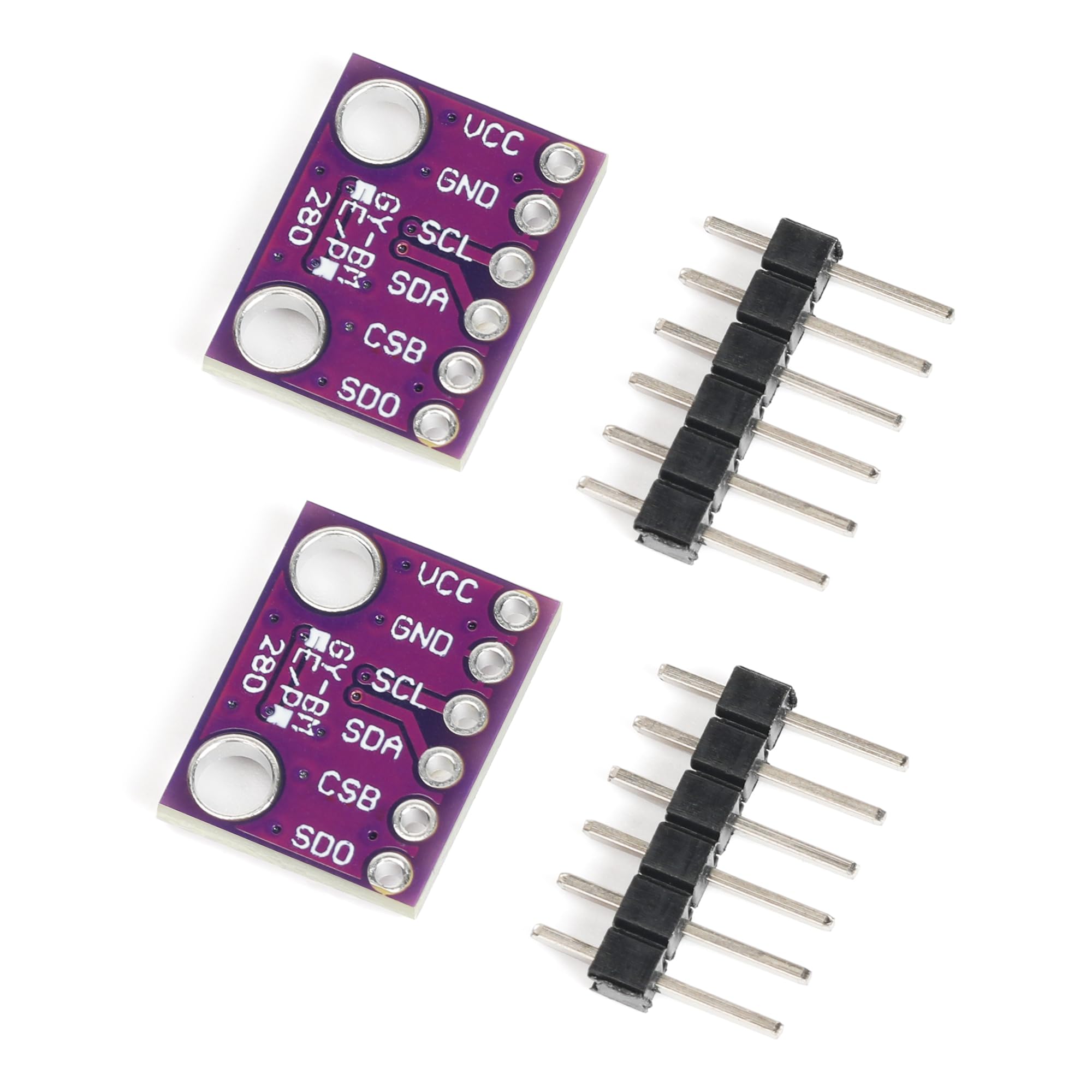

BME280 Environmental Sensor, Sensing Environmental Temperature, Humidity, Barometric Pressure, Supports I2C and SPI Interfaces, Compatible with 3.3V/5V Voltage Levels for Raspberry/forArduino

Color:

BME280

BME280

BME680

BME688 with AI function

BMM150 3-Axis

BMP390

Digital SGP40 VOC Sensor

UV Sensor c

Detalles del producto
Disponibilidad
En stock
Peso con empaque
0.20 kg
Devolución
No
Condición
Nuevo
Producto de
Amazon
Viaja desde
USA

Sobre este producto
  • Introduction It is a tiny BME280 sensor, sensing environmental temperature, humidity, and barometric pressure. It supports both I2C and SPI interfaces, also is compatible with 3.3V/5V voltage levels. Due to its ultra small form factor, low power consumption, high precision with stability, the BME280 Environmental Sensor is suited for applications such as environment monitoring, weather forecast, altimeter, and IoT projects, and so on. Features Supports I2C (default), configurable slave address Supports SPI, switch to SPI via I/O setting Onboard voltage level translator, compatible with 3.3V/5V operating voltage Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32) Specifications Operating voltage: 3.3V/5V Communication interface: I2C/SPI Temperature sensing: -40~85°C (resolution 0.01°C, accuracy ±1°C) Humidity sensing: 0~100%RH (resolution 0.008%RH, accuracy ±3%RH, response time 1s, delay ≤2%RH) Barometric pressure sensing: 300~1100 hPa (resolution 0.18Pa, accuracy ±1hPa) Power consumption: <0.1mA@1Hz (H,P,T) Dimension: 27mm x 20mm Mounting hole size: 2.0mm Online Development Resources /User Manual ://bit.ly/3FMyYqP Package Content BME280 Environmental Sensor x1 PH2.0 6PIN wire 20cm x1
$38,29
55% OFF
$17,41

IMPORT EASILY

By purchasing this product you can deduct VAT with your RUT number

$38,29
55% OFF
$17,41

3 meses de gracia en diferidos y hasta 6 meses sin intereses con Pacificard

Envío gratis
Llega en 16 a 26 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja de USA a tus manos en

Conoce más detalles

A tiny sensor breakout with BME280 onboard, sensing environmental temperature, humidity, and barometric pressure. Supports SPI, switch to SPI via I/O setting Onboard voltage level translator, compatible with 3.3V/5V operating voltage Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32) The BME280 Environmental Sensor is suited for applications such as environment monitoring, weather forecast, altimeter, and IoT projects, and so on
