Artículo: AMZ-B0BG2BSC87

JESSINIE

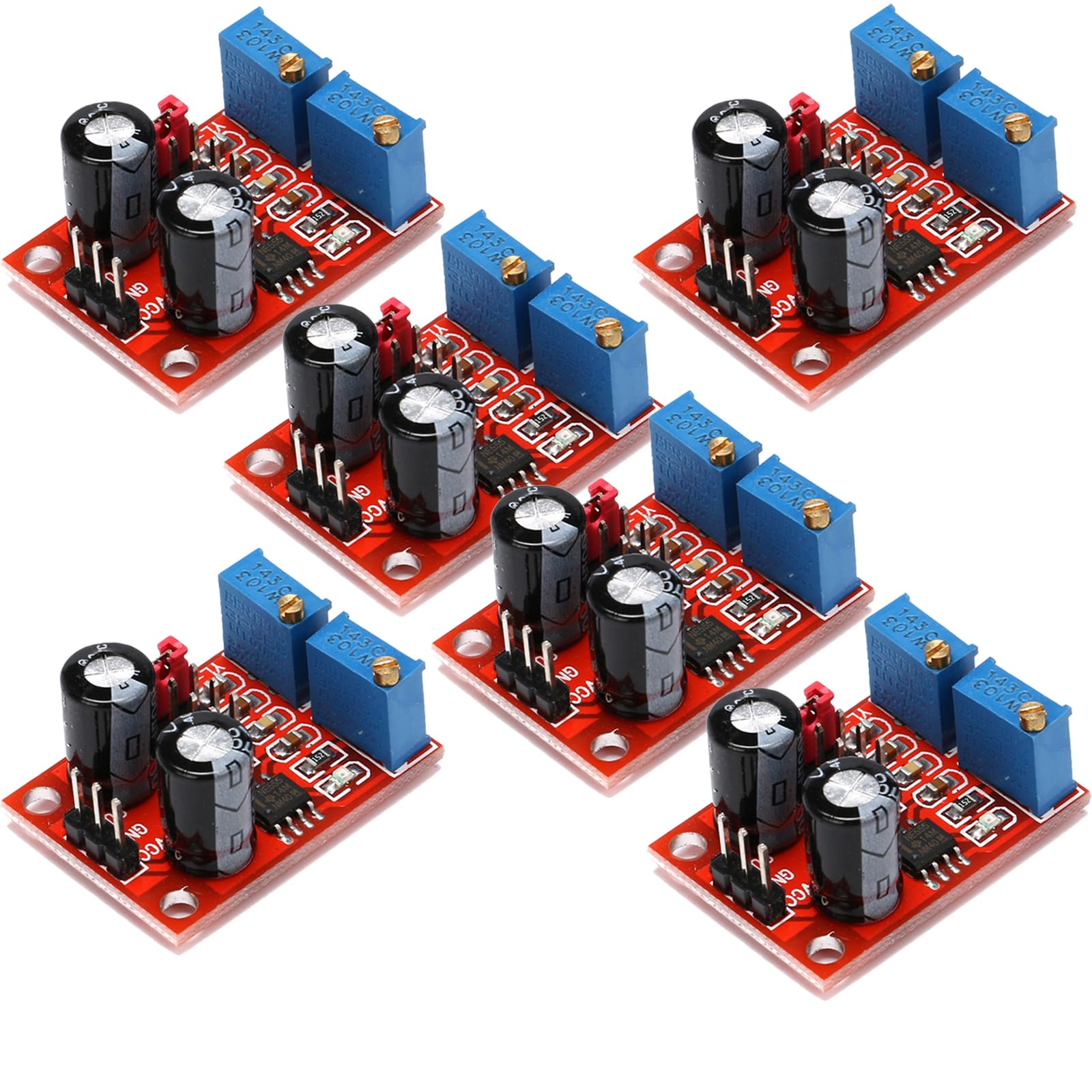

JESSINIE 10Pcs NE555 Pulse Generator Square Wave Rectangular NE555 Adjustable Frequency Pulse Generator Module Single Channel Signal Output Frequency Duty Cycle Square Wave Module Board

Detalles del producto

Disponibilidad
En stock

Peso con empaque
0.20 kg

Devolución
Sí

Condición
Nuevo

Producto de
Amazon

Viaja desde
USA

Sobre este producto

NE555 Pulse Generator is precision timing circuits capable of producing accurate time delays or oscillation. In the time-delay or monostable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the astable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor. The threshold and trigger levels normally are two-thirds and one-third, respectively, of VCC. These levels can be altered by use of the control-voltage terminal. When the trigger input falls below the trigger level, the flip-flop is set, and the output goes high. If the trigger input is above the trigger level and the threshold input is above the threshold level, the flip-flop is reset and the output is low. The reset (RESET) input can override all other inputs and can be used to initiate a new timing cycle. When RESET goes low, the flip-flop is reset, and the output goes low. When the output is low, a low-impedance path is provided between discharge (DISCH) and ground. The output circuit is capable of sinking or sourcing current up to 200 mA. Operation is specified for supplies of 5 V to 15 V. With a 5-V supply, output levels are compatible with TTL inputs.

Producto prohibido

Este producto no está disponible

Este producto viaja de USA

a tus manos en

Medios de pago

Conoce más detalles

Onboard NE555 chip Single signal output, the output duty cycle is about 50% square wave On-board adjustable resistor, adjusting the resistance value can control the output frequency Onboard power indicator Operating voltage: 5~12V
