Artículo: AMZ-B09K35K3XN
SparkFun Electronics
SparkFun Digital Temperature Sensor Breakout - AS6212 (Qwiic) - High Accuracy Low Power Consumption Board Small Size 1 inch by 1 inch Footprint Configurable Alert pin 8 Selectable I2C addresses
Detalles del producto
Disponibilidad
En stock
En stock
Peso con empaque
0.20 kg
0.20 kg
Devolución
Sí
Sí
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto

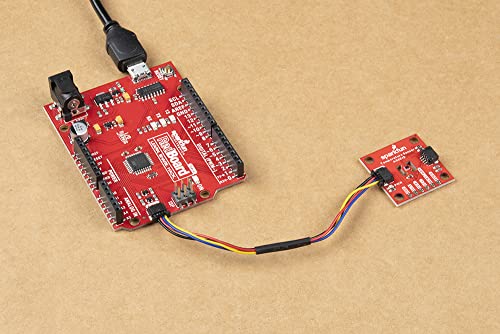

- This SparkFun Qwiic Digital Temperature Sensor Breakout provides a combination of high temperature accuracy with excellent low power consumption using the AS6212 digital temperature sensor from ams AG. The sensor measures temperature data up to ±0.2°C; accuracy over a wide range (-40°C; to +125°C;) and consumes an average of 6µA in normal operation (0.1µA in standby). The AS6212 communicates via I2C and has eight available I2C addresses selected by a pair of solder jumpers on the board. The breakout routes the I2C interface to a pair of Qwiic connectors to work with our plug-and-play Qwiic Ecosystem but also routes the bus and other pins to a standard 0.1"-spaced PTH header for users who prefer a soldered connection. The AS6212 features an alert output to trigger when recorded temperature data crosses user-designated thresholds. The low and high values make it perfect to monitor systems that must remain in a specific temperature range. Along with the alert pin, the AS6212's sleep mode works with a single-shot temperature measurement to wake the device, take a single reading and then return to sleep mode for extreme low-power/battery-powered temperature measurement projects. The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.
$39,97
60% OFF
$15,99
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$39,97
60% OFF
$15,99
3 meses de gracia en diferidos y hasta 6 meses sin intereses con Pacificard
Envío gratis
Llega en 5 a 12 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Conoce más detalles

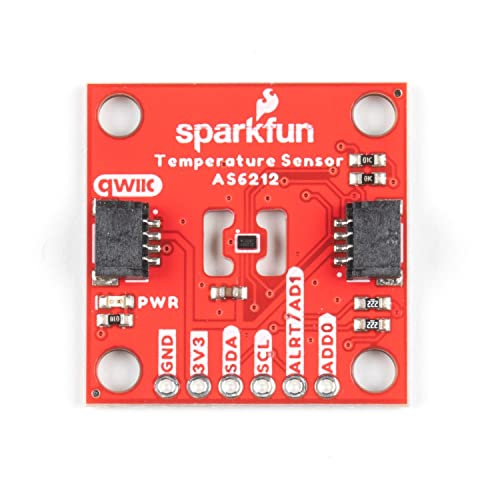

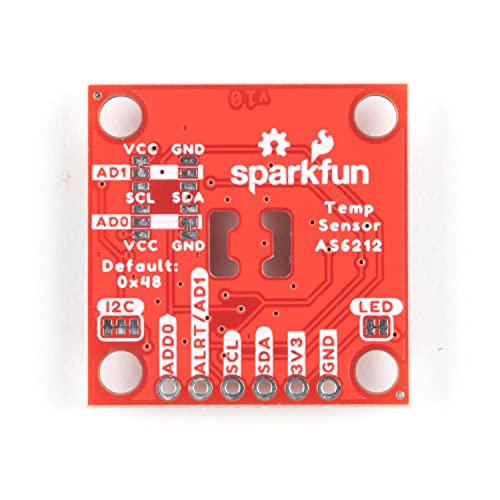

The SparkFun Digital Temperature Sensor Breakout - AS6212 (Qwiic) provides a combination of high temperature accuracy with excellent low power consumption using the AS6212 digital temperature sensor from ams AG. The AS6212 measures temperature with ±0.2°C accuracy between -10°C to 65°C (full measurement range is -40°C to 125°C), consumes an average of 6µA (0.1µA in standby) and communicates over I2C so naturally we put it on a Qwiic breakout to add to our ever expanding Qwiic system. All of this in a tiny IC package measuring 1.5mm x 1mm. The AS6212 boasts a host of features including a configurable alert pin that can trigger when temperature data exceeds user-defined temperature thresholds. Features: Communicates via I2C (Qwiic enabled); Eight selectable I2C addresses (0x48 Default); Operating Voltage Range: 1.7V - 3.6V; Low Power Consumption: 6µA typical, 0.1µA standby Also features: Operating Temperature Range: -10°C to 125°C; High Temperature Accuracy: ±0.2°C from -10°C to 65°C; ±0.3°C from -40°C to -10°C and 65°C to 85°C; ±0.5°C from 85°C to 125°C
