Artículo: AMZ-B097GLMDM3
UCTRONICS
UCTRONICS DC 12V Programmable Time Delay Relay Module with Metal Enclosure, On Delay and Off Delay Timer for Automobile, Raspberry Pi, Industrial Control, and Other Automatic Control Projects
Size:
12V, with Metal Case
Detalles del producto
Disponibilidad
En stock
En stock
Peso con empaque
0.20 kg
0.20 kg
Devolución
Sí
Sí
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto

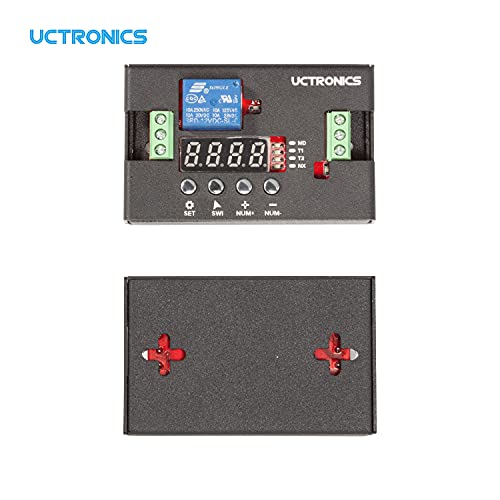

- This programmable multifunction time delay relay module is designed for different kinds of control systems. It has 18 preset modes, users can program one of the mode and its parameters to fit for their applications. The four keys are used for programming the relay module, the four segment LED display are used for displaying the mode and timing information. This bundle also comes with a customized metal enclosure, which cuts for all terminals, LED, display and press buttons, convenient for operation, as well we protect the timer well. SPECS Working voltage: DC 12V Static current: 5.5mA Temperature limitation: -30 -70 degrees (-20-60 degree recommended) Load capacity: DC 30V or AC 250V / DC 28V or AC 125V Load current: 10A Preset Modes Mode 1: On Delay Mode 2: Off Delay Mode 3: On Delay & Off Delay Mode 4: Off Delay & On delay Mode 5: Infinite Loop of On Delay Mode 6: Infinite Loop of Off Delay Mode 7: Finite Loop of On Delay Mode 8: Finite Loop of Off Delay Mode 9: Self-locking Relay Mode 10: Triggered On, and Off Delay after the CH1 signal disappearing Mode 11: Triggered On Delay Mode 12: Triggered Off Delay Mode 13: Triggered On delay & Off delay Mode 14: Triggered Off Delay & On Delay Mode 15: Triggered Infinite Loop of On Delay and Off Delay Mode 16: Triggered Infinite Loop of Off Delay and On Delay Mode 17: Triggered finite Loop of On Delay and Off Delay Mode 18: Triggered finite Loop of Off Delay and On Delay Package Including 1pcs programmable Multifunction Time Delay Relay Module 1 set metal case with mounting accessories 1pcs screwdriver 1pcs user manual 1pcs assembly manual
$45,32
44% OFF
$25,18
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$45,32
44% OFF
$25,18
3 meses de gracia en diferidos y hasta 6 meses sin intereses con Pacificard
Envío gratis
Llega en 5 a 12 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Conoce más detalles

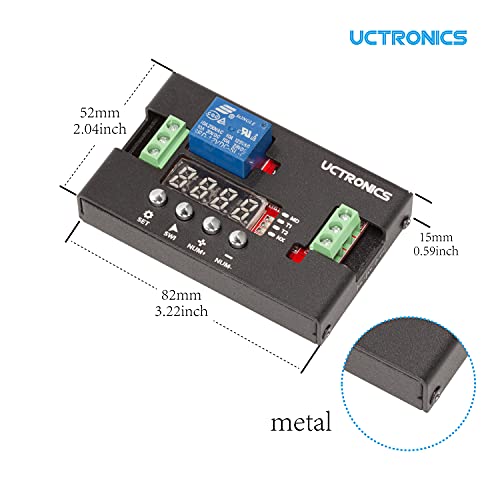

Operating Voltage: DC 12V; Quiescent Current: 5.5mA; Max. Load Voltage: DC 28V or AC 125V; Max. Load Current: 10A Multifunction: 18 programmable working modes, on/off delay, infinite/finite loop, with/without high level voltage trigger, you can select the mode as needed; Delay time range from 0.1s to 270h. No Hassle: All options settings could be saved automatically, the content will not be lost even power down; Reverse protection, avoid burning down the module as connecting the wrong terminals. Designed Enclosure: The metal is customized for the timer module, cuts for every terminal block, display, press button and LED, provides enough protection, as well as convenient for you to use. Applications: This module works as a switch with time delay on and off function, highly recommended for car circuit modification, LED lights, DC motors, pump and other electronic control systems. Perfect for PLC digital outputs and sensor (NPN/PNP) signals that provide a positive voltage pulse.
