Audio HAT Module for Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero/Zero W/Pi Zero WH,WM8960 Hi-Fi Sound Card HAT Stereo CODEC, Play/Record
Color:
WM8960 Audio HAT
En stock
0.27 kg
Sí
Nuevo
Amazon
USA
- WM8960 Hi-Fi Sound Card HAT for Raspberry Pi, Stereo CODEC, Play/Record Overview This is a sound card HAT designed for Raspberry Pi, low power consumption, supports stereo encoding / decoding, features Hi-Fi playing / recording, what's more, it can directly drive speakers to play music. Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards Integrates WM8960 low power stereo CODEC, communicates via I2S interface Integrates dual high-quality MEMS silicon Mic, supports left/ right double channels recording, nice sound quality Onboard standard 3.5mm earphone jack, play music via external earphone Onboard dual-channel speaker interface, directly drives speakers Supports sound effects such as stereo, 3D surrounding, etc. Comes with development resources and manual (python demo code for playing / recording) Specifications CODEC: WM8960 Power supply: 5V Logic voltage: 3.3V Control interface: I2C Audio interface: I2S DAC signal-noise ratio: 98dB ADC signal-noise ratio: 94dB Earphone driver: 40mW (16Ω@3.3V) Speaker driver: 1W per channel (8Ω BTL) Package Content WM8960 Audio HAT x1 8Ω 5W Speaker x1 RPi screws pack (2pcs) x1 Note: Raspberry Pi in the photos is NOT included.
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
Conoce más detalles

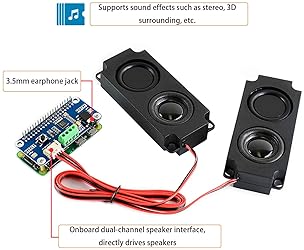

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Integrates WM8960 low power stereo CODEC, communicates via I2S interface. Integrates dual high-quality MEMS silicon Mic, supports left & right double channels recording, nice sound quality. Onboard standard 3.5mm earphone jack, play music via external earphone. Onboard dual-channel speaker interface, directly drives speakers, Supports sound effects such as stereo, 3D surrounding, etc.
