Walfront 3.3V Display Screen Module 1.14in ST7789 Electronic Components,LCD Display Module, Resolution 135x240

Detalles del producto
Disponibilidad
En stock
Peso con empaque
0.20 kg
Devolución
Condición
Nuevo
Producto de
Amazon
Viaja desde
USA

Sobre este producto

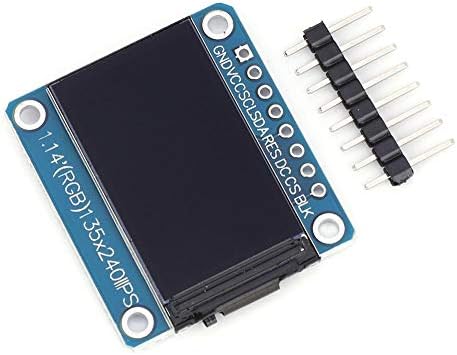

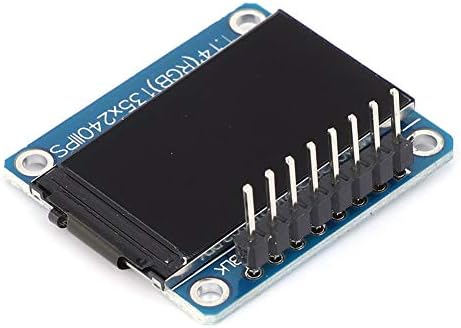

  • Specification: Condition: Brand new Item Type: Screen Module LCD Size: 1.14 Inches Resolution: 135x240 (adjustable display orientation, both horizontal and vertical) LCD Color: Full Color Interface Type: 4-Wire SPI Interface Control Chip: ST7789 Working Temperature: -20℃ ~ 70℃ Working Power: 3.3V Number of Pins: 8P Display Area: 14.864x24.912mm Size: Approx. 28 x 31.4mm / 1.1 x 1.2in Viewing Direction: Full View () Package List: 1 x Screen Module 1 x 8Pin Header Connector Pin Definition: 1 GND 2 VCC 3 SCL 4 SDA 5 RES 6 DC 7 CS 8 BLK
$19,71
31% OFF
$13,59

IMPORT EASILY

By purchasing this product you can deduct VAT with your RUT number

$19,71
31% OFF
$13,59

20% OFF adicional al pagar con Deuna

Envío gratis
Llega en 5 a 12 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja de USA a tus manos en

Conoce más detalles

LCD Size: 1.14in screen can provide clear view for you. LCD Color: Full Color Working Power: 3.3V. The pin has good contacting performance, ensure stable working. Number of Pins: 8P Design: Adopted of electronic components, and accuracy process, ensure for the durability. Great workmanship, easy and convenient to install. Interface Type: 4-Wire SPI Interface. Viewing Direction: Full View ().Resolution: 135x240 (adjustable display orientation, both horizontal and vertical). Display Area: 14.864x24.912mm. Size: Approx. 28 x 31.4mm / 1.1 x 1.2in.There is EPE inside to the screen module.
