Artículo: AMZ-B07XDTGPCX
HiLetgo
HiLetgo Serial Data Logger Data Recorder TTL Level Storage with Micro SD for Openlog Open Source ATmega328 Support Customized Data Preprocessing Service
Detalles del producto
Disponibilidad
En stock
En stock
Peso con empaque
0.20 kg
0.20 kg
Devolución
Sí
Sí
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto

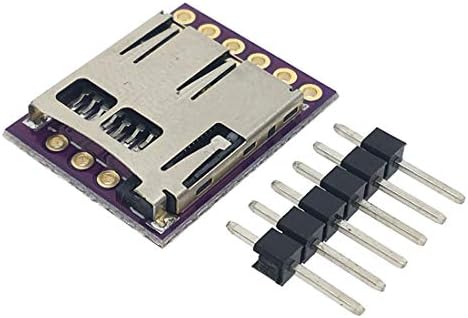

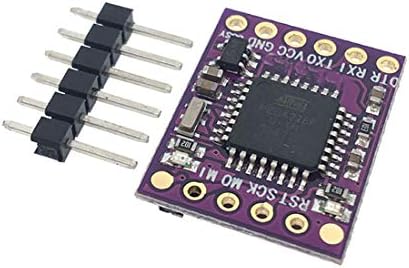

- The OpenLog is an open source data logger that works over a simple serial connection and supports microSD cards up to 64GB. The OpenLog can store or "log" huge amounts of serial data and act as a black box of sorts to store all the serial data that your project generates, for scientific or debugging purposes. The OpenLog runs off of an onboard ATmega328, running at 16MHz thanks to the onboard crystal. The OpenLog draws 6mA when recording a 512 byte buffer, but as that process takes a fraction of a second, the average current draw is closer to 5mA. Keep in mind though that if you are recording a constant data stream at 115200bps, you will approach that 6mA limit. All data logged by the OpenLog is stored on the microSD card that involve the features of 64MB to 64GB capacity and FAT16 or FAT32 file type. Note: The latest version of the firmware (included with this board) does not compile in Arduino 1.6.7. You will need to compile in 1.6.5. Features: VCC Input: 3.3V-12V (Recommended 3.3V-5V) Log to low-cost microSD FAT16/32 cards up to 64GB Simple command interface Configurable baud rates (up to 115200bps) Preprogrammed ATmega328 and bootloader Four SPI pogo pins Two LEDs indicate writing status 2mA idle, 6mA at maximum recording rate Package included： 1 x Serial Data Logger Open Source Data Recorder for Openlog
$24,91
44% OFF
$13,84
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$24,91
44% OFF
$13,84
3 meses de gracia en diferidos y hasta 6 meses sin intereses con Pacificard
Envío gratis
Llega en 5 a 12 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Conoce más detalles
Openlog Serial Data Logger Data Recorder TTL Level Storage Open Source, Support Customized Data Preprocessing Service This OpenLog is an open source data logger that works over a simple serial connection and supports microSD cards up to 64GB All data logged by the OpenLog is stored on the microSD card that involve the features of 64MB to 64GB capacity and FAT16 or FAT32 file type.
