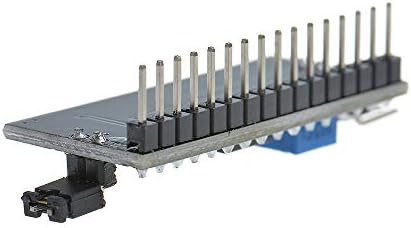

5PCS IIC I2C Serial Interface Board LCD1602 LCD2004 Blue Backlight LCD Display Adapter Plate PCF8574 Expansion Board for Arduino UNO R3 MEGA DIY Kit

0 5 4 31

31 calificaciones

Detalles del producto

Disponibilidad
En stock

Peso con empaque
0.20 kg

Devolución
Sí

Condición
Nuevo

Producto de
Amazon

Viaja desde
USA

Sobre este producto

1.The I2C interface is a huge improvement, freeing up a lot of pins on the Arduino for additional functionality. Works fine with the LCD1602 and LCD2004.
Modules can be cascaded up to eight. The device address can be modified by short-circuiting A0/A1/A2. The default address is 0x27. The default address can be detected by the program.
The module uses the PCF8574, which enables most MCUs to implement remote I/O port expansion via two bidirectional buses (I2C). The device includes an 8-bit quasi-bidirectional port and an I2C bus interface.

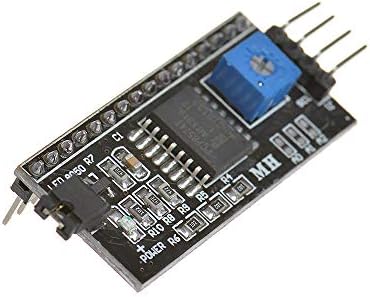

The contrast is adjustable, and the blue potentiometer is rotated clockwise to enhance, and counterclockwise to weaken.With backlight power control, you can set whether to connect the backlight power through the jumper cap.
The original LCD1602/2004 screen requires 7 IO ports to drive. This module only needs 2 IO ports to drive, which can save you 5 IO ports.

$20,60

31% OFF

$14,20

$20,60

31% OFF

$14,20

Envío gratis

Llega en 5 a 12 días hábiles

Con envío

Tienes garantia de entrega

Medios de pago

Cantidad

Este producto viaja de USA

a tus manos en

Medios de pago

Conoce más detalles

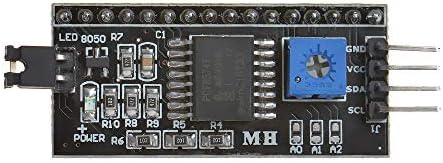

As the pin resources of Arduino controller is limited, your project may be not able to use normal LCD shield after connected with a certain quantity of sensors or SD card. However, with this I2C interface module, you will be able to realize data display via only 2 wires. If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project. Specifications: Input Voltage: DC2.5-6V Protocol: IIC (I2C) With backlight Adjustable contrast PCB Board Color: black Weight: 5g Size: 41.5 mm×19 mm×15.3 mm/ 1.63″×0.75″×0.60″ Device Address:0x20~0x27 The device address can be modified by short-circuiting A0/A1/A2. The default address is 0x27. The default address can be detected by the program. Address modification instructions: A0, A1, A2 are all left floating, the device address is 0x27 (0100111) Short circuit A0, device address is 0x26 (0100110) Short circuit A1, device address is 0x25 (0100101) Short circuit A2, device address is 0x23 (0100011) . . . . . . A0, A1, A2 are all short-circuited, the device address is 0x20 (0100000) Wiring instructions: GND: power supply negative VCC: power supply positive SDA: IIC data line SCL: IIC clock line Package inlcuded: 5x IIC series interface modules for LCD 1602
