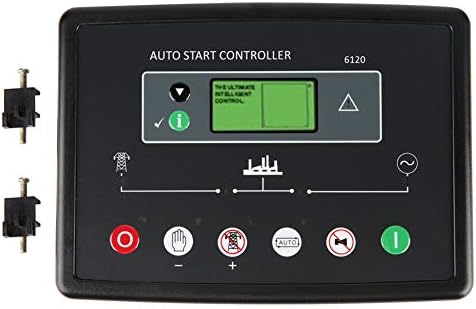

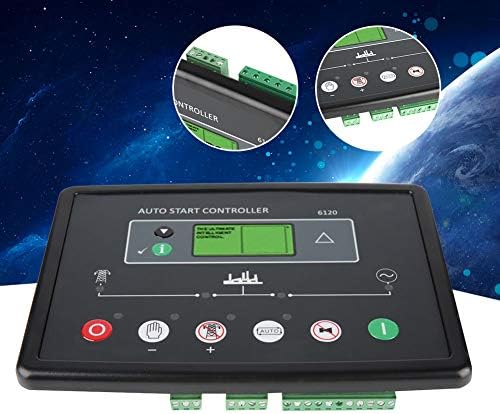

YWBL-WH DSE6120 Deep Sea Electronic Generator Controller Automatic Engine Control Module 0-10V/4-20mA
Detalles del producto
Disponibilidad
En stock
En stock
Peso con empaque
0.60 kg
0.60 kg
Devolución
Sí
Sí
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto
- Specification: Material: Plastic Weight: 526g/18.6oz Model: DSE6120 DC Supply: continuous voltage rating 8 V to 35 V Continuous Cranking Dropouts: Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking. Maximum Operating Current: 100 mA at 12 V, 105 mA at 24 V Maximum Standby Current: 60 mA at 12 V, 55 mA at 24 V Maximum Sleep Current:40 mA at 12 V, 35 mA at 24 V Generator & Mains(Utility): Voltage Range: 15 V to 415 V AC ( to N); 26 V to 719 V AC ( to ) Frequency Range: 3.5 Hz to 75 Hz Inputs: Digital Inputs A to F, negative switching analogue input A Configurable as: Negative switching digital input 0 V to 10 V 4 mA to 20 mA 0 Ω to 240 Ω Analogue Inputs B to D Configurable as: Negative switching digital input 0 Ω to 480 Ω Outputs: Output A (Fuel) 10 A short term, 5 A continuous, at supply voltage Output B (Start) 10 A short term, 5 A continuous, at supply voltage Auxiliary Outputs C, D, E & F 2 A DC at supply voltage Package List: 1 x Generator Controller 2 x Set Screws
Producto prohibido
Este producto no está disponible
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Conoce más detalles

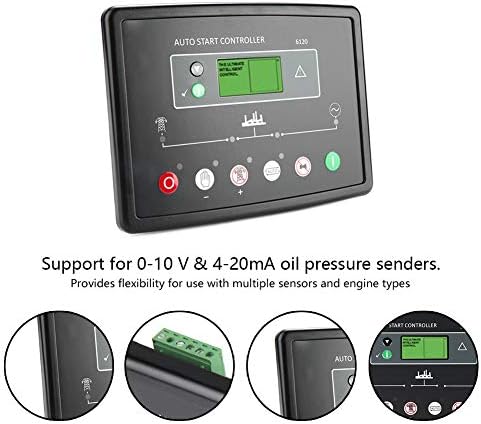

Ensures the display continues to operate in extreme cold weather conditions. Configurable DC, volt- and staged loading outputs (6). Provides full generator load control. CAN, MPU & alternator speed sensing (selectable depending on engine type). Provides true generator and mains (utility) sensing. Ensures the module can be used with a wide number of engine types. Tier 4 CAN engine support. Ensures the control module can be used with the latest in modern electronic engine technology. Support for 0-10 V & 4-20mA oil pressure senders. Heated display option. 3-phase generator sensing. Provides true generator sensing. 3-phase mains (utility) monitoring. Generator/load current monitoring & . Provides flexibility for use with multiple sensors and engine types. Provides convenience of monitoring and of the generator or monitoring of the load current. Configurable analogue/digital inputs (9). Provides multiple installation options. Generator/load current monitoring & . Configurable event log (100). Provides access to historical alarms and operational status. Configuration Suite PC Software. Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring. Fuel and start outputs (configurable on CAN). Provides multiple installation options.
