Artículo: AMZ-B07FRV4JNX

Digilent

Cmod S7: Breadboardable Spartan-7 FPGA Module

Detalles del producto

Disponibilidad
En stock

Peso con empaque
0.20 kg

Devolución
Sí

Condición
Nuevo

Producto de
Amazon

Viaja desde
USA

Sobre este producto

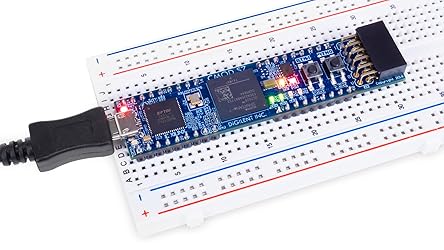

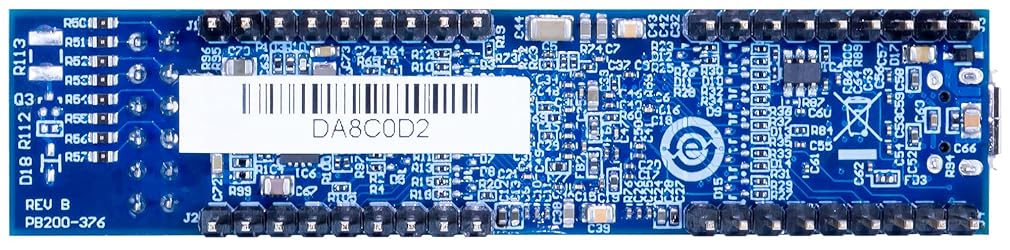

The Cmod, or Carrier Module, family of products is designed to offer quick, simple, and flexible integration of an FPGA into circuit design, prototyping, and learning/hobby projects. The Digilent Cmod S7 is a small, 48-pin DIP form factor board, populated with 36 pins, built around a Xilinx Spartan-7 FPGA that brings FPGA power and prototyping to a solderless breadboard. The board includes a Quad-SPI flash for programming, as well as a USB-JTAG programming circuit and USB-UART bridge. The Cmod S7 also features a clock source, Pmod port, and onboard I/O with LEDs and pushbuttons. There are 32 FPGA I/O signals, 2 FPGA analog input signals, an external power input rail, and ground that are routed to 100-mil-spaced through-hole pins, making the Cmod S7 compatible with solderless breadboards. This form factor makes the Cmod S7 a great option for flexible and affordable prototyping, or learning FPGA and digital logic circuits. At just .7" by 3.05", it can also be loaded in a standard socket and used in embedded systems. The Spartan-7 FPGA on the Cmod S7 fits performance into a small form-factor packaging. With the MicroBlaze Soft Processor Core from Xilinx, you can create embedded applications with a variety of peripherals, memory, and interfaces.

$475,28

55% OFF

$216,04

$475,28

55% OFF

$216,04

Envío gratis

Llega en 12 a 16 días hábiles

Tienes garantia de entrega

Medios de pago

Cantidad

Este producto viaja de USA

a tus manos en

Medios de pago

Conoce más detalles

Xilinx Spartan-7 FPGA (XC7S25-1CSGA225C) Memory: 4 MB Quad-SPI Flash USB-JTAG programming circuitry, USB-UART bridge 2 Buttons, 4 LEDs, 1 RGB LED 1 Pmod connector, 8 total FPGA I/O 48-pin DIP form-factor header, 32 total FPGA I/O, 2 single-ended 0-3.3V analog inputs to XADC, 2 power pins

Cmod S7: Breadboardable Spartan-7 FPGA Module
