Artículo: AMZ-B07FMK5DPT

NOYITO

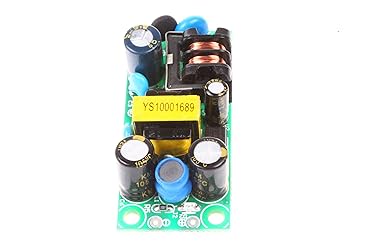

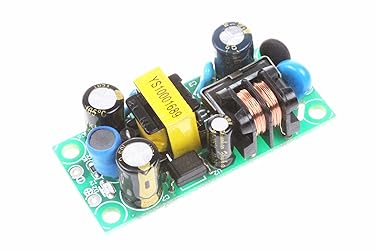

NOYITO AC to DC Precision Buck Power Supply Module AC 120V 100V-264V to 3.3V 1A Isolated Step-Down DC Module (3.3V 1A) Green

Size:

3.3V 1A

3.3V 700mA

5V 1.5A

5V 1A

5V 3A

Color:

Green

Detalles del producto

Disponibilidad
En stock

Peso con empaque
0.20 kg

Devolución
Sí

Condición
Nuevo

Producto de
Amazon

Viaja desde
USA

Sobre este producto

Description Isolated Precision Buck Power Supply Module ，Wide voltage range input with overload, short circuit, over temperature protection. Ultra-small size and high efficiency. Output parameters: Output voltage: 3.3V ±1%. Output current: 1A. Ripple: less than 60mVp-p. Output accuracy: ±1%. Voltage regulation rate: ±1%. Load adjustment rate: ±1.2% Rated power: 3.3W. Output adjustable range: not adjustable. Establish, rise, hold time: 500ms, 80ms, 80ms / 220V AC. Input parameters: Input voltage range: AC 100- 264V. Input current: less than 0.2A. (Average current 0.03A-0.1A). Frequency range: 47-63Hz. Efficiency: about 80%. Start surge current: COLD START 30A/230V / AC. Leakage current: less than 2mA / 220V AC. Protection features: Over power protection: 150-170% rated power. (Fault removal is automatically restored). Overvoltage protection: VH: >50%. DC short circuit protection: The power supply is intermittently separated. (Recovery is automatically restored). Environmental parameters: Working temperature: -15 ° C - +50 ° C @ 100% LOAD , +60 ° C @ 60% LOAD; Working humidity: 20%-90% RH. Storage temperature, humidity: -20 ° C - +85 ° C, 10% -95% RH. Safety and EMC standards: Withstand voltage: I/P-O/P: 1KV AC 1min. Insulation resistance: I/P-O/P: 500VDC / 100M Ohms. Package Included: 1Pcs 3.3V 1A AC-DC Precision Buck Power Supply Module

$23,38

49% OFF

$11,99

$23,38

49% OFF

$11,99

Envío gratis

Llega en 5 a 12 días hábiles

Con envío

Tienes garantia de entrega

Medios de pago

Cantidad

Este producto viaja de USA

a tus manos en

Medios de pago

Conoce más detalles

Isolated Precision Buck Power Supply Module ，Wide voltage range input with overload, short circuit, over temperature protection. Ultra-small size and high efficiency. Input voltage range: AC 120V 100- 264V. Frequency range: 47-63Hz. Output voltage: 3.3V ±1%. Output current: 1A. Ripple: less than 60mVp-p. Output accuracy: ±1%. Voltage regulation rate: ±1%.

NOYITO AC to DC Precision Buck Power Supply Module AC 120V 100V-264V to 3.3V 1A Isolated Step-Down DC Module (3.3V 1A) Green
