Artículo: AMZ-B07F5JPXYS

NOYITO

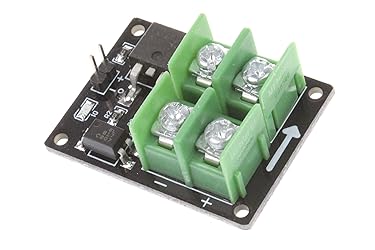

NOYITO Low Voltage MOSFET Switching Module 3V 5V Low Control High Voltage 12V 24V 36V Field Effect Transistor Module

Detalles del producto
Disponibilidad
Sin stock
Peso con empaque
0.20 kg
Devolución
No
Condición
Nuevo
Producto de
Amazon
Viaja desde
USA

Sobre este producto
  • Product Description: Input control voltage: 3.3V-12V Output voltage: 5-36V The board uses optical isolation and is completely separated from the 2-terminal voltage. The input is controlled by 2-pin control and the ground control can be directly connected to the control switch. Control current 1-5MA control voltage is different, the current difference is mainly the loss on the LED. Charging maximum current: 22A, more than 5A need to add a heat sink. Onboard LED lights Host input and output screw terminal block The control terminal uses 2.54MM pins for easy wiring. Control can be directly connected to the microcontroller IO. The MCU can control the motor speed, light level, etc. with ARDUINO PWM. Please note that high current needs to add an extra radiator Board size: 4.2 x 2.6 cm Package Included: 1pcs Low Voltage MOSFET Switching Module

Sin stock

Seleccione otra opción o busque otro producto.

Este producto viaja de USA a tus manos en

Conoce más detalles

Input control voltage: 3.3V-12V Output voltage: 5-36V The board uses optical isolation and is completely separated from the 2-terminal voltage. The input is controlled by 2-pin control and the ground control can be directly connected to the control switch. Control current 1-5MA control voltage is different, the current difference is mainly the loss on the LED.
