SKU/Artículo: AMZ-B0FKG7WRWV

Hosyond

ESP32-S3 Touchscreen Module, 2.8" 240x320 IPS LCD EPS32 Display with WiFi Bluetooth Capacitive Touch Screen for Arduino IoT Projects

Disponibilidad:
En stock
Peso con empaque:
0.33 kg
Devolución:
Condición
Nuevo
Producto de:
Amazon

Sobre este producto
  • 【Powerful ESP32-S3 Core】 Equipped with an Xtensa LX7 dual-core processor (up to 240MHz), featuring 16MB Flash and built-in Wi-Fi & Bluetooth 4.2 for reliable wireless communication.
  • 【2.8-Inch IPS Touchscreen Display】 Features a 240x320 resolution color screen with 262K color depth (RGB666), capacitive touch, and wide viewing angles for a smooth interactive experience.
  • 【Rich Audio & Interface Support】 Includes a built-in microphone and external speaker support, with multiple I/O options like I2C, UART, and SPI for expanded functionality.
  • 【Battery & Storage Friendly Design】 Supports external lithium battery, micro TF card slot for storage, and an integrated battery management circuit for safe charging and discharging.
  • 【Easy Development & AI Voice Chat】 Comes with a USB Type-C port for programming, and supports AI voice chat for smart applications. Provides abundant sample programs for easy learning.

Producto prohibido

Este producto no está disponible

Este producto viaja de USA a tus manos en
Medios de pago Tarjetas de Crédito y Débito

Compra protegida

Disfruta de una experiencia de compra segura y confiable

Conoce más detalles

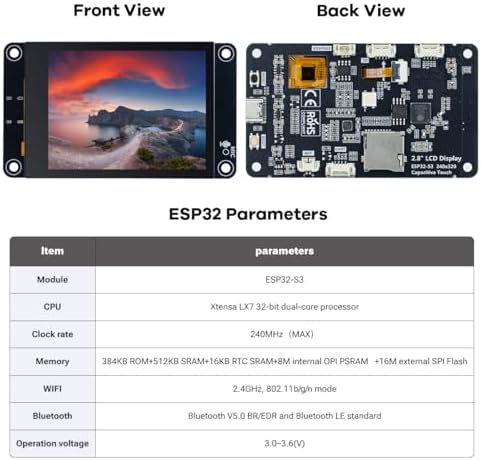

Module: ESP32-S3 CPU: Xtensa LX7 32-bit dual-core processor Frequency: 240MHz (maximum) Memory: 384KB ROM + 512KB SRAM + 16KB RTC SRAM + 16MB external QSPI Flash Mode: Bluetooth + WiFi Screen Size: 2.8 inches Screen Type: IPS TFT Touchscreen Type: Capacitive Touchscreen Resolution: 240xRGB x 320 pixels Colors: Maximum: 262K (RGB666) Common: 65K (RGB565) Driver IC: ILI9341V Display Interface: 4-Line SPI (connected to ESP32) Viewing Angle: ALL 0'CLOCK Backlight Brightness (Typical): 280 cd/m² Backlight Type: 4 White LEDs Operating Voltage: 5.0V Operating Temperature: -30°C to 80°C Storage Temperature: -30~80(℃) Package include: 1 x 2.8" touchscreen 1 x usb c cable 1 x speaker 1 x jumper cable
