Cytgouper

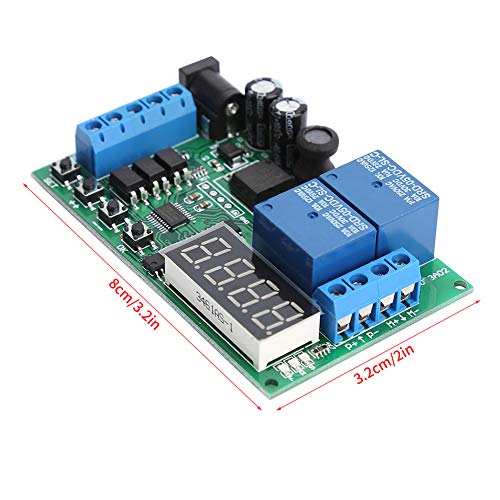

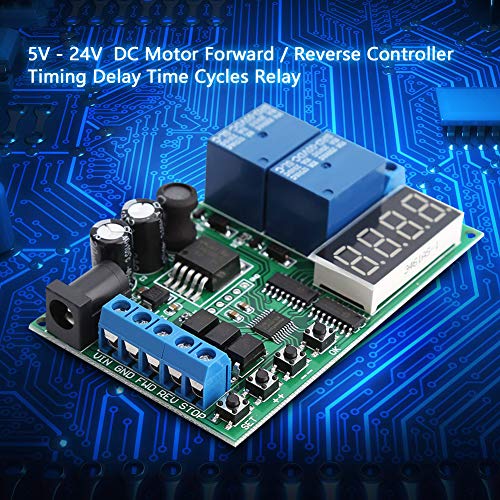

5V - 24V Motor Speed Controller Time Delay Relay, Reverse Motor Timing Cycle Module Motor Controller Board with LCD
Disponibilidad:
En stock
En stock
Peso con empaque:
0.33 kg
0.33 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- DUAL POWER SUPPLY: Power supply 1, DC 6.5-25V; Power supply 2, DC 5V.(two power supplies cannot be powered at the same time).WORKING CURRENT: (Normal Mode) Standby current 41mA, working current 83mA; (Energy-Saving mode) Standby current 7mA, working current 44mA
- REVERSE MOTOR CYCLE TIMES: No cycle, 2-99 cycles, always cycle. Delay time: 0.1-.9 seconds, 1-9999 seconds, 1-9999 minute

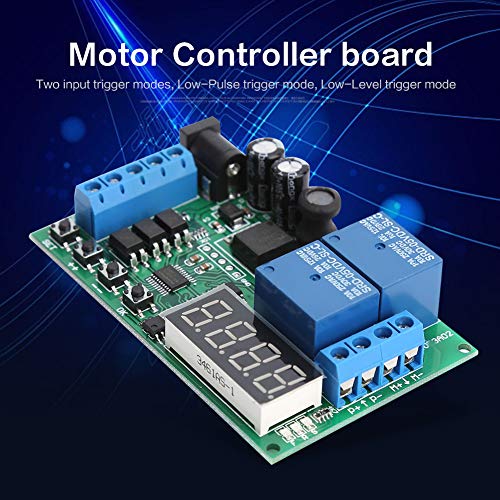

- TWO INPUT MODES: The motor speed controller has two input trigger modes, Low-Pulse trigger mode, Low-Level trigger mode
- EXQUISITE DESIGN: There are three input control port: forward control(FWD),reverse control(), and stop control(STOP)
- WIDE APPLICATION: This is a multi-function 24v motor controller forward and controller with multiple control modes. Many control functions can be derived through reasonable settings. The electrical motor control board can control 2-way solenoid valve, pumps, motors, lights
AR$50,394
55% OFF
AR$22,905
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
AR$50,394
55% OFF
AR$22,905
Pagá fácil y rápido con Mercado Pago o MODO
Llega en 8 a 12 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
Tarjetas de Crédito y Débito
Visa
Mastercard
American Express
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
Paypal
Pagos a través de MODO
Compra procesada en pesos desde la App de tu banco.
PayPal
Conoce más detalles

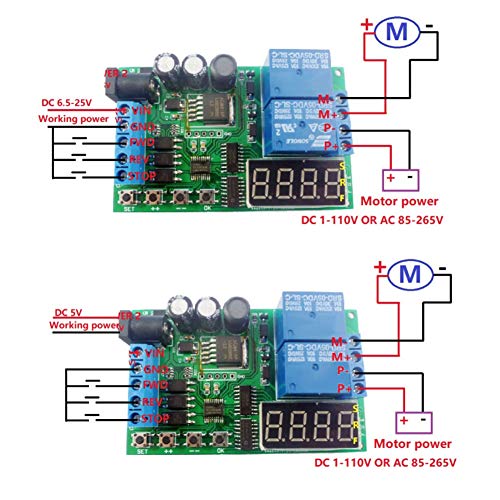

Features: Dual power supply (two power supplies cannot be powered at the same time): Power supply 1, DC 6.5-25V; Power supply 2, DC 5V Working current: (Normal Mode) standby current 41mA, working current 83mA; (Energy-Saving mode) Standby current 7mA, working current 44mA. There are three input control port: forward control(FWD), reverse control(), and stop control(STOP). Two input trigger modes, Low-Pulse trigger mode, Low-Level trigger mode Delay time: 0.1-999.9 seconds, 1-9999 seconds, 1-9999 minutes. Cycle times: no cycle, 2-99 cycles, always cycle. Three indicators: forward indicator(F LED), reverse indicator(R LED), stop indicator(S LED). Relay load current, recommended less than 5A. Port: DC 5.5MM female : Power supply 1, DC 5V power supply. VIN: Power 2 positive, DC 6.5-25V power supply GND: Power supply 2 negative FWD: Forward input control (partial Function-Mode is invalid) : reverse input control (partial Function-Mode is invalid) STOP : Stop input control (partial Function-Mode is invalid) M+: Motor positive M-: Motor negative P+: Positive terminal for motor power supplyP-: negative terminal for motor power supply Specification: Power supply: DC 6.5-25V, DC 5V Working current: 83mA Standby current: 41mA Relay load current: Delay time: 0.1-999.9 seconds, 1-9999 seconds, 1-9999 minutes Size: 8*5cm/3.2*2inWeight: Approx. 51g/1.8ozTrigger mode: 1 low pulse trigger (falling trigger) 2 low level trigger (rising trigger) Timer: T1: Forward timer T2: reverse timer T3: Stop timer Time unit : 0.1 second, 1 second, 1 minute
