Walfront
Programmable Logic Controller Module 16 in 12 Out DC24V 32-bit Chip Fast Processing Speeds GX Developer Analog Inputs Analog Outputs
Disponibilidad:
En stock
En stock
Peso con empaque:
0.54 kg
0.54 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- High Performance CPU: The programmable logic module controller unit features the for WS3U accuracy , equipped with a 32 bit chip that ensures fast processing speeds and ample storage space. This advanced CPU enhances the efficiency and performance of the control board for seamless operating.
- Download Communicating: With a download speed of 38.4Kbps (with the option to request a change to 9.6Kbps in special circumstances), the industrial programmable control board supports direct programming, download, debugging, and monitoring using for GX Developer or for GX Works2 software. This ensures convenient and efficient communicating for programming tasks.
- Efficient Power Supply And Consumption: The programmable logic controller module operates on DC 24V power supply with low static current of 30mA when output relays are not activated. The current increases by 10mA for each activated relay, with the total power consumption reaching 70mA (1.44W) when all relays on the for 3U‑14MR output are open. This efficient power management ensures optimal energy usage.
- Flexible Load Capacity: The programmable logic relay controller module features 5A current relays for reliable performance, with a recommended continuous usage below 3A for longevity. The transistor drive for outputs supports a current of 1A, with a sustained usage limit of 500mA to ensure stable and operating.

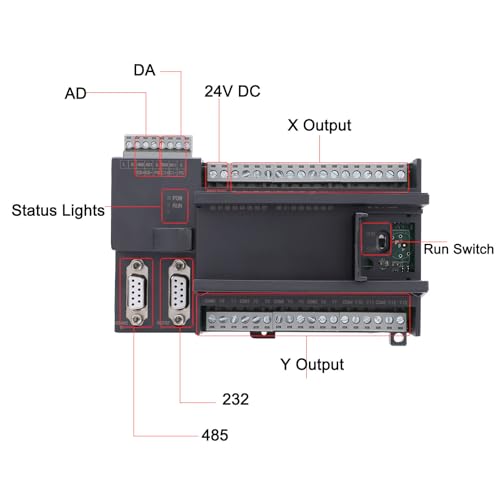

- Versatile Analog: The programmable logic module includes 6 channels of analog input, comprising 3 voltage inputs ranging from 0‑10V and 3 current inputs from 0‑20mA. Additionally, it offers 2 analog output channels with 0‑10V voltage output. The board also supports 6 channels of 3K counting inputs, 3 channels of AB phase inputs, and up to 8 channels of 100K pulse outputs, providing versatile I/O capabilities for diverse control applications.
AR$277,229
55% OFF
AR$126,015
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
AR$277,229
55% OFF
AR$126,015
Pagá fácil y rápido con Mercado Pago o MODO
Llega en 18 a 28 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
Tarjetas de Crédito y Débito
Visa
Mastercard
American Express
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
Paypal
Pagos a través de MODO
Compra procesada en pesos desde la App de tu banco.
PayPal
Conoce más detalles

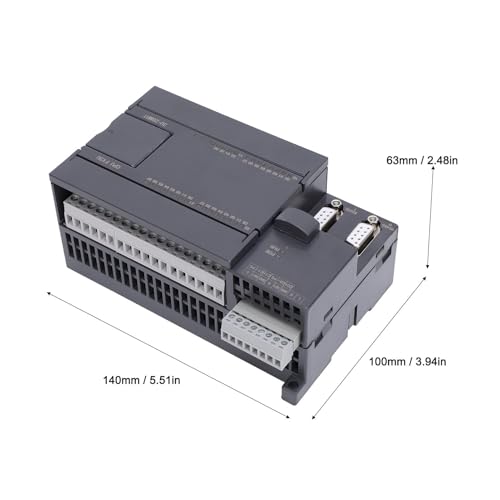

Spec: Item Type: PLC Control Board Model: WS3U-28MR-K-B Material: ABS Size: Approx. 140 x 100 x 63mm / 5.51 x 3.94 x 2.48in Download Speed: 38.4Kb Memory Capacity: 8000 Input Points: 16 Output Points: 12 Output Type: Relay Output Current: 5A Load: 24V High Speed Count: 6 Way, 3K Analog Input, Output: Default 2AD 0-10V, Convertible to 4AD for MODBUS: Built In How to Use: Follow the instructions in the electronic manual to use. packing list: 1 x PLC Control Board Note: Installation and Usage Instructions: 1. To prevent the internal temperature of the machine from getting too high, it is recommended to install it by wall hanging. Sufficient space should be left and below for heat dissipation. 2. Leave a space of at least 50mm between the programmable controller host and other equipment or structures. Keep away from high voltage lines, high voltage equipment, and power equipment as much as possible. 3. Avoid dust, oil, erosive environments, pay attention to electrostatic guard (avoid direct contacting of hands with circuit board lines). 4. Use adhesive isolation columns for fixing installation.
