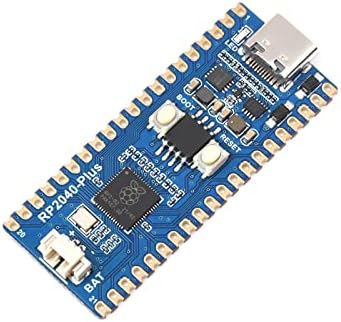

waveshare RP2040-Plus Board, Pico-Like MCU Board Based on MCU RP2040, Dual-Core Arm Cortex M0+ Processor up to 133 MHz, Onboard 16MB Flash, USB-C Connector, Recharge Header, Higher Current DC-DC Chip
Color:
16MB without header
Disponibilidad:
En stock
En stock
Peso con empaque:
0.33 kg
0.33 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- RP2040 MCU Board Plus board, Pico-like MCU Board Based on Raspberry Pi MCU RP2040. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Onboard 16MB Flash, Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz 264KB of SRAM, onboard 16MB Flash memory. USB-C connector, keeps it up to date, easier to use.
- Lithium battery recharge/discharge header, suitable for mobile devices. Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip, maximum 2A load current. Castellated module allows soldering direct to carrier boards. USB 1.1 with device and host support. Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB.
- 26 × multi-function GPIO pins. 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels.
- Accurate clock and timer on-chip. Temperature sensor. Accelerated floating-point libraries on-chip. 8 × Programmable I/O (PIO) state machines for custom peripheral support .
AR$42,175
31% OFF
AR$29,086
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
AR$42,175
31% OFF
AR$29,086
Pagá fácil y rápido con Mercado Pago o MODO
Llega en 18 a 28 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
Tarjetas de Crédito y Débito
Visa
Mastercard
American Express
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
Paypal
Pagos a través de MODO
Compra procesada en pesos desde la App de tu banco.
PayPal
Conoce más detalles
RP2040-Plus Board Overview Need more Flash for Raspberry Pi Pico? Dislike the outdated Micro USB connector? All these problems are solved by our RP2040-Plus now. As same as Raspberry Pi Pico, it incorporates the RP2040 microcontroller, with dual-core Arm Cortex M0+ processor running up to 133 MHz, and 26x multi-function GPIO pins. What's different, it features onboard 4MB Flash, USB-C connector, recharge header, and higher current DC-DC chip. Key Features RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz 264KB of SRAM, and 16MB of onboard Flash memory USB-C connector, keeps it up to date, easier to use Lithium battery recharge/discharge header, suitable for mobile devices Onboard DC-DC chip TPS63000, high-efficiency DC-DC buck-boost chip, 1.8A current switch The castellated module allows soldering directly to carrier boards USB 1.1 with device and host support Low-power sleep and dormant modes Drag-and-drop programming using mass storage over USB 26 × multi-function GPIO pins 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels Accurate clock and timer on-chip Temperature sensor Accelerated floating-point libraries on-chip 8 × Programmable I/O (PIO) state machines for custom peripheral support Support C/C++，MicroPython: Comprehensive SDK, development resources, tutorials to help you easily get started Compatible with most of the Raspberry Pi Pico add-on modules Development Resources/User Manual: bit.ly/WaveshareRP2040PlusBoard Package Content RP2040-Plus-16MB x1
